Technical data
| Additional data | |
|---|---|
| Working range* | 10 m |
| Working range with receiver* | 50 m |
| Accuracy* | ± 0.3 mm/m |
| Laser diode | 635 nm, < 1 mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 40 °C |
| Operating temperature | -10 – 40°C °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70°C °C |
| Laser class | 2 |
| Working range with receiver, value | 50 m |
| Working range without receiver, value | 10 m |
| Working range without receiver | 10 m |
| Working range of laser points, max. | 5 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 18 h in 1-line mode |
| Tripod thread | 1/4", 5/8" |

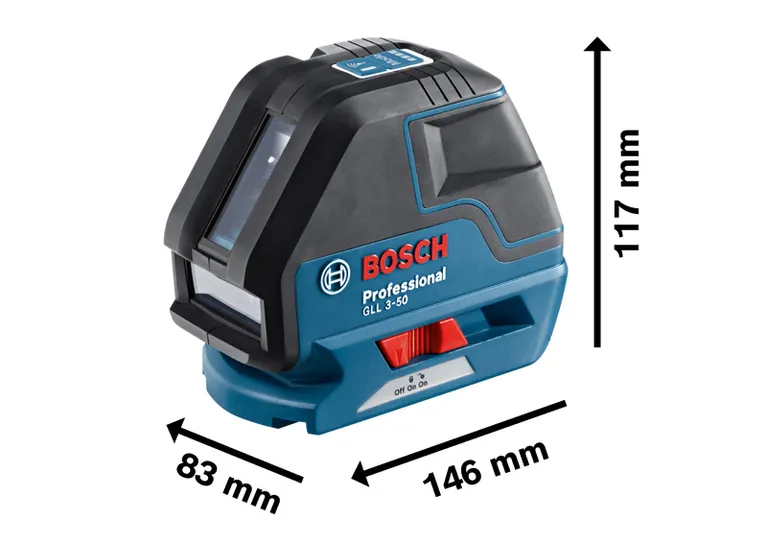

| Weight, approx. | 0.94 kg |
| Projection | 3 lines |
| Plumb point accuracy | ± 0.6 mm/m |
* Highlighted Data
Advantages

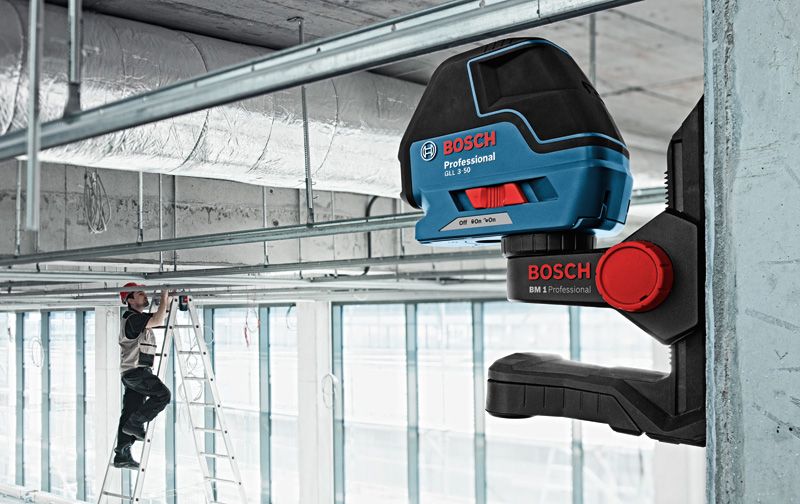

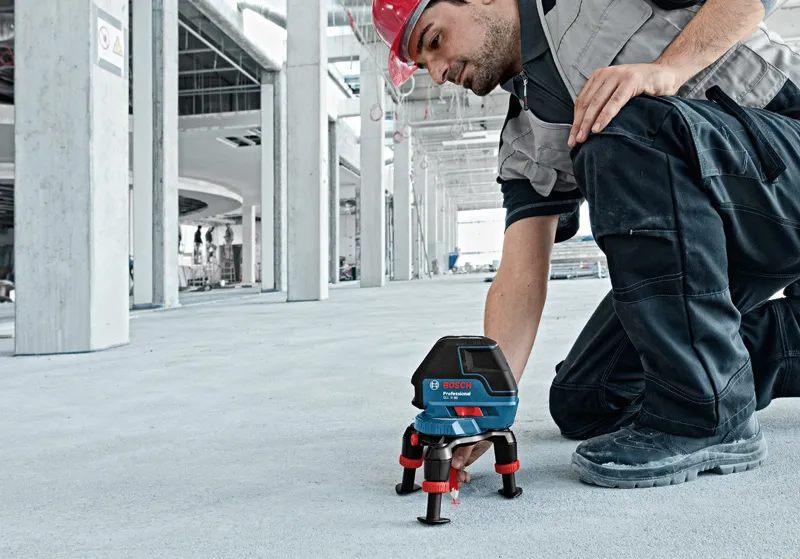

The easy to use complete solution for all levelling and transfer applications

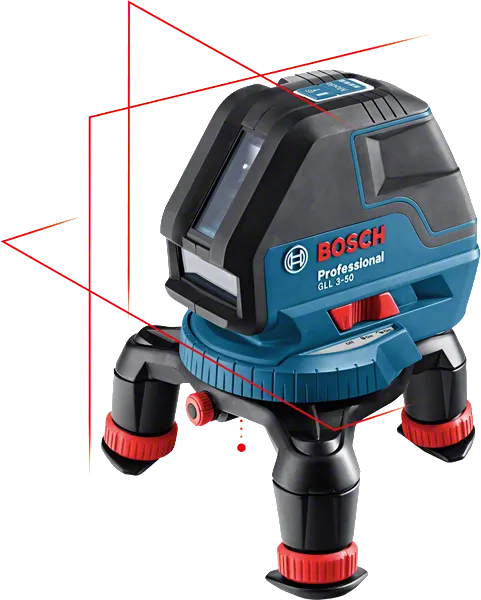

- A versatile range of applications due to complete solution of multi line laser and mini tripod
- Ruggedness for professional deployment and other outstanding technical specifications

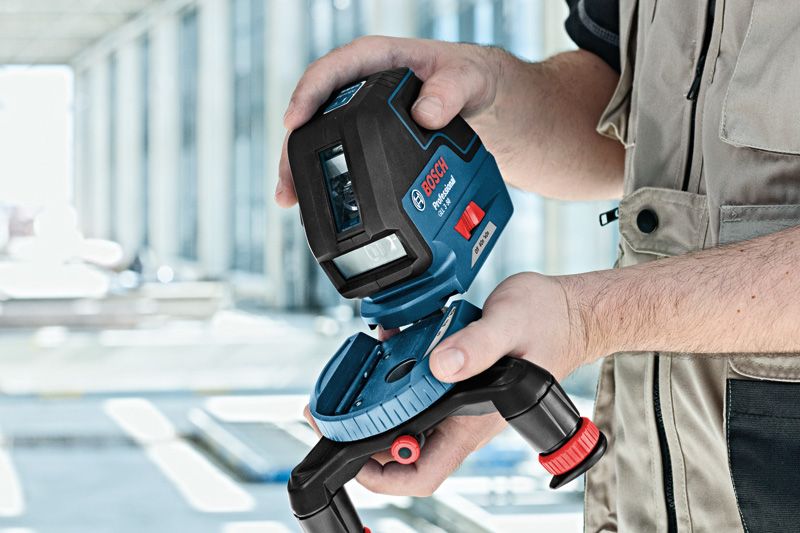

- Compact shape and easy operation
Functions
What’s Included in this Package
with 4 x battery (AA), Laser target plate
Order number:
0 601 063 801
- Laser target plate
- L-BOXX inlay for tool
- 4 x 1.5 V LR6 battery (AA)
