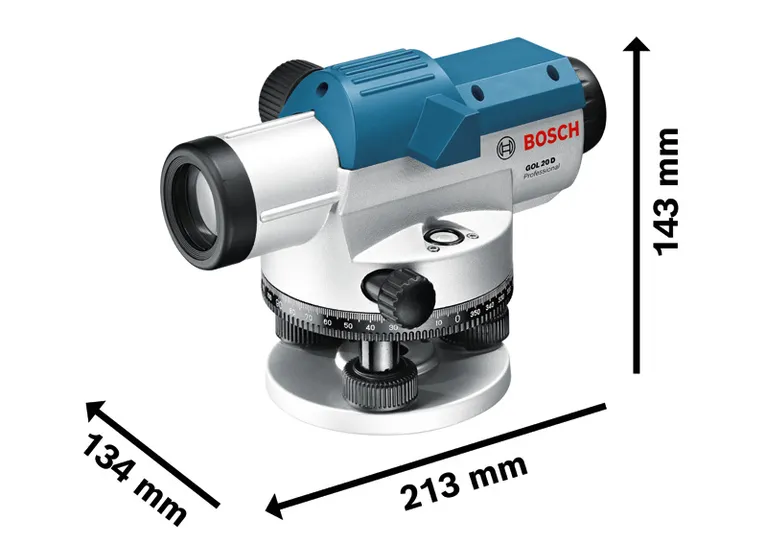

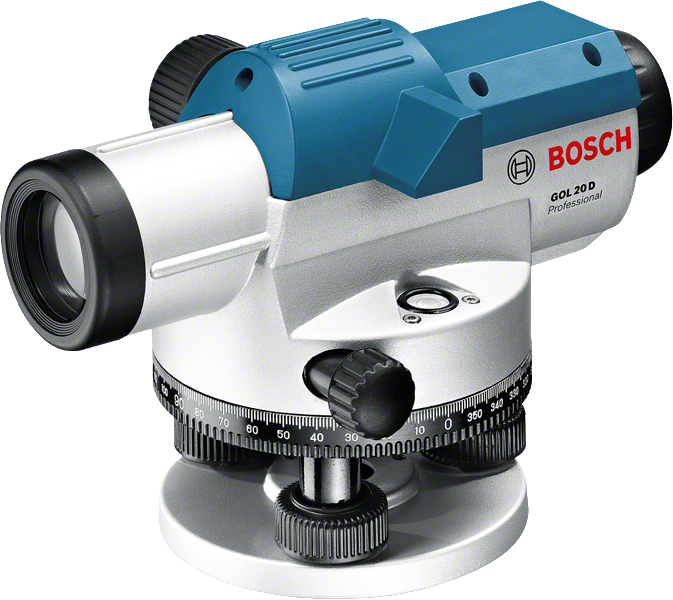

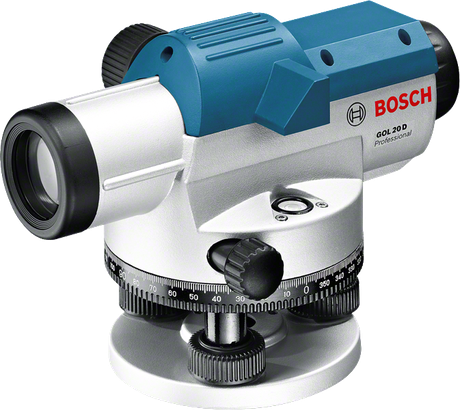

Optical Level GOL 20 D Professional

Robust and reliable – ideal for outdoor use

Technical data
Additional data
Unit of measure* 360 degrees
Magnification* 20 x
Accuracy* 3 mm at 30 m
Working range, sign up to
Working range, value 60 m
Working range up to 60 m
Dust and splash protection IP 54
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50 °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70 °C
Weight, approx. 1.5 kg

* Highlighted Data

Advantages

Robust and reliable – ideal for outdoor use

  • Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
  • Fast aperture for excellent staff reading
  • Compensator lock for safe transport

Functions

Icon
Dual levelling element Prevent errors due to dual levelling element
Magnification 20x Magnification up to 20x
Working range 60 m Range up to max. 60 m

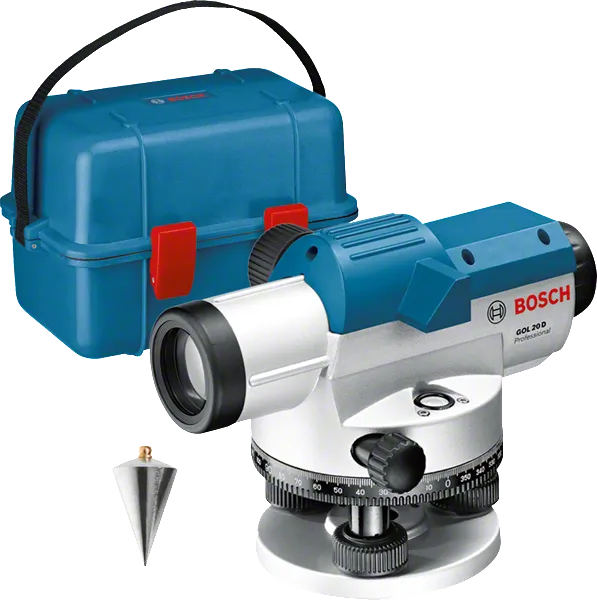

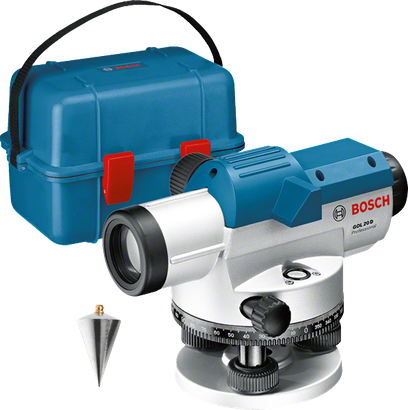

What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 068 400
  • Adjusting pin
  • Allen key
  • Carrying case 1 600 A00 0LF
  • Lens cover
  • Plumb bob

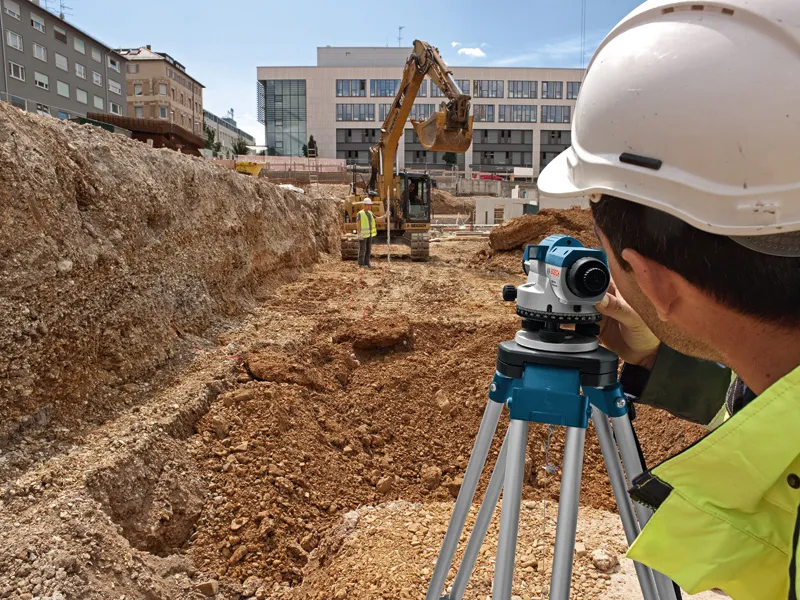

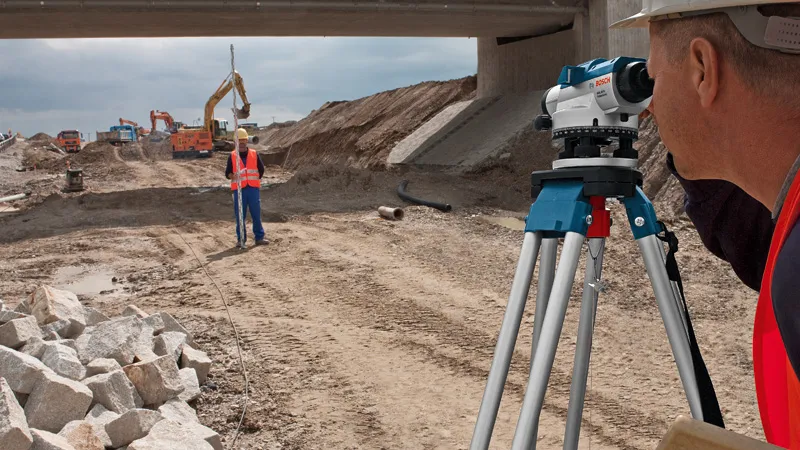

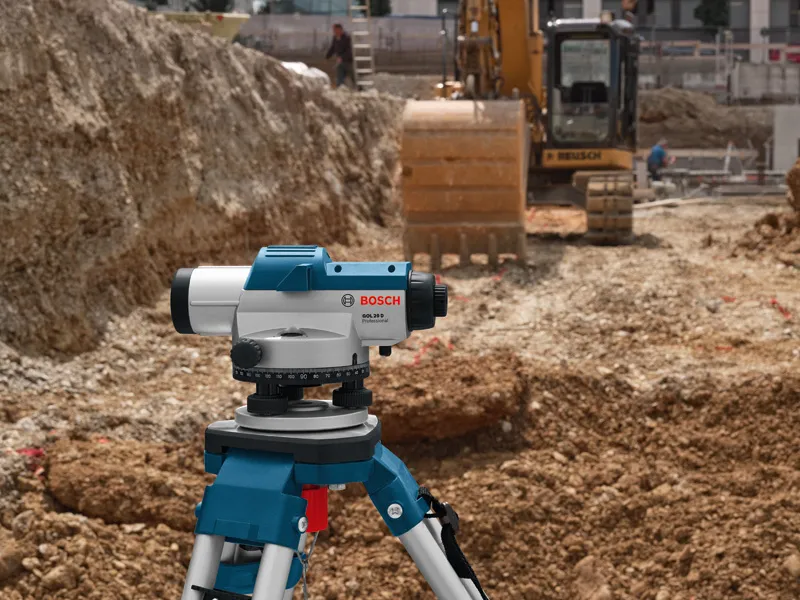

The GOL 20 D in action!
