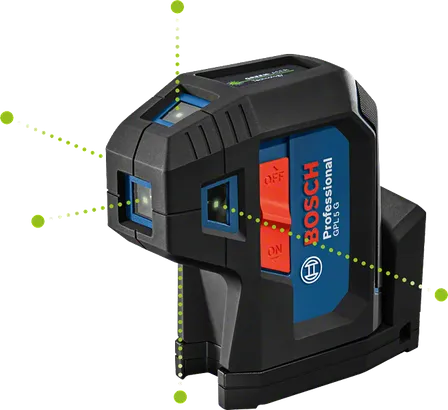

GPL 5 G Professional

Point Laser

GPL 5 G
GPL 5 G

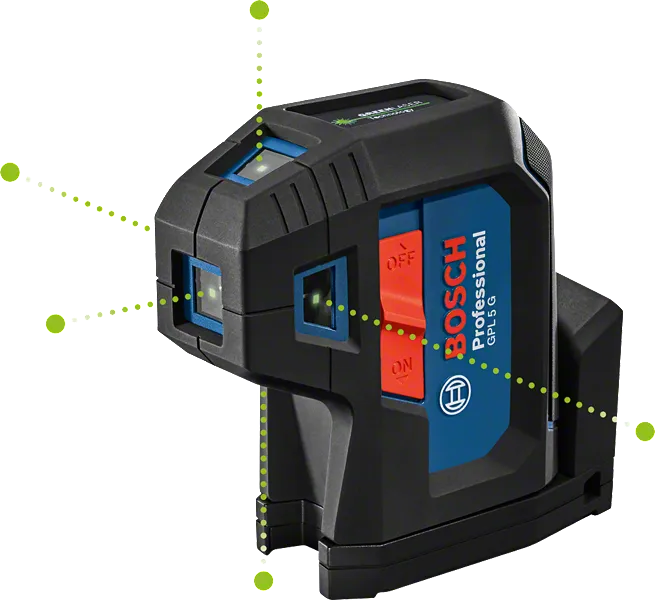

The tough and compact 5-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design resists tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Fast and secure mounting thanks to integrated rotation mount with strong magnets

Functions & key features

Line configuration 5-Point laser
IP65 dust tight and water jets protection
Integrated rotation mount
Magnets
Laser class 2

Your Selection

  • with 2 x battery (AA), Pouch
Show variant Find a local dealer

with 2 x battery (AA), Pouch 0 601 066 P00

GPL 5 G Professional

Your Selection

GPL 5 G
with 2 x battery (AA), Pouch

Order number: 0 601 066 P00

Find a local dealer

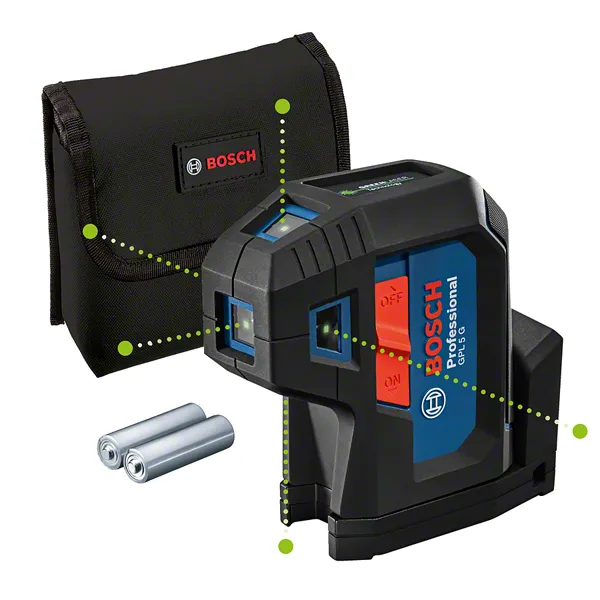

Included in this variant

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Dust and splash protection IP 65
Working range up to 30 m
Accuracy ± 0.35 mm/m* (except bottom laser point) ; ± 0.7 mm/m* (bottom laser point) (*plus use-dependent deviation)
Projection 5 points
Working range, value 30 m
Laser diode < 1 mW, 500 – 540 nm
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Laser class 2
Self-levelling range ± 4°
Levelling time 4 s
Power supply 2 x 1.5 V LR6 (AA)
Operating time (max.) 8 h
Tripod thread 1/4"

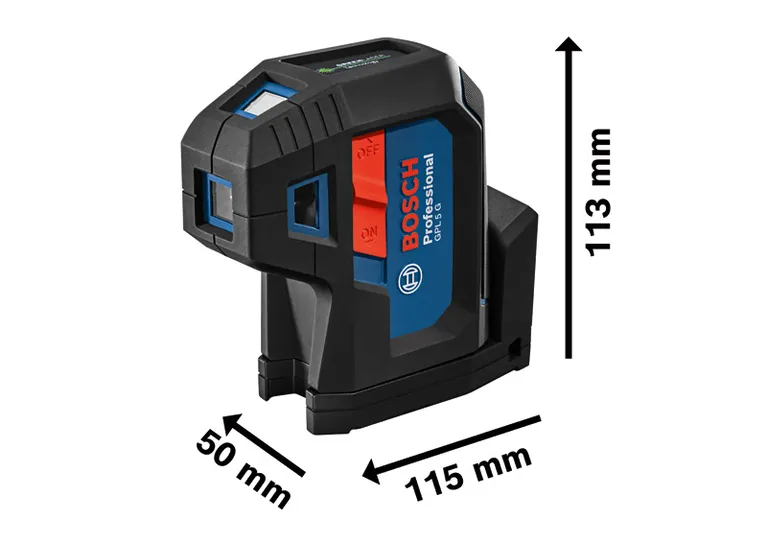

Weight, approx. 0.35 kg
GPL 5 G

GPL 5 G Professional: Further information

Product Highlights

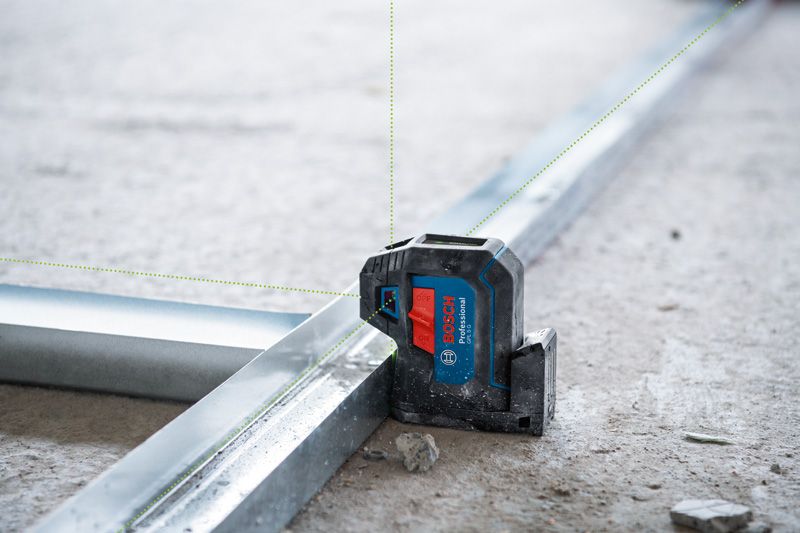

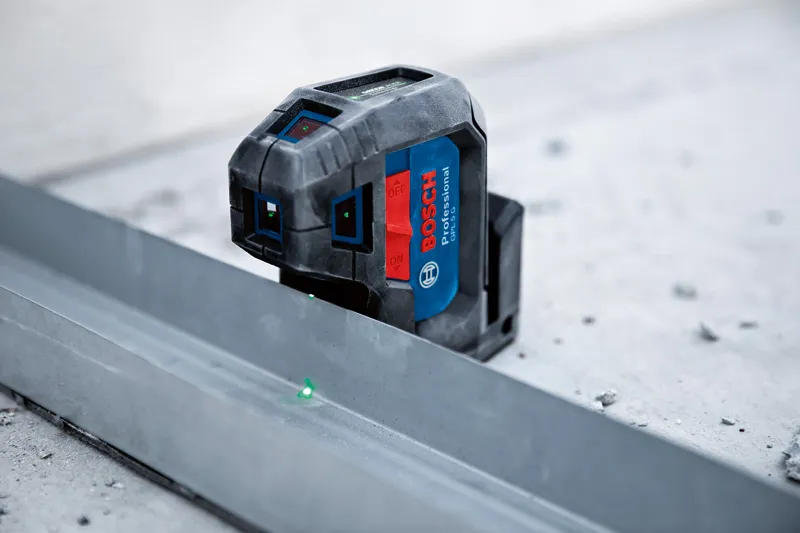

The 5-point laser GPL 5 G Professional stands out with its durable and compact design, making it the ideal choice for laying out 90-degree walls. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 5 G Professional resists tough jobsite conditions. This 5-point laser is transport-ready in no time, thanks to an integrated rotation mount that features strong magnets for fast and secure tool mounting.

Equipment & Application

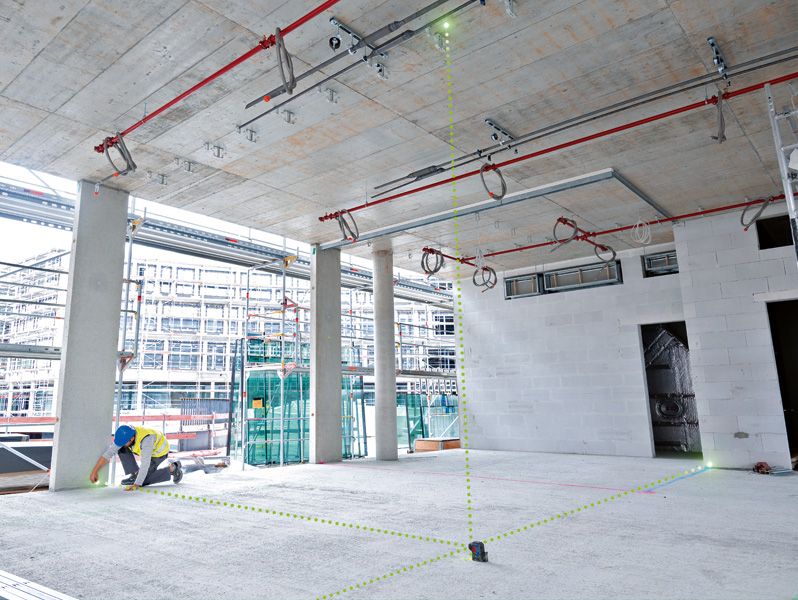

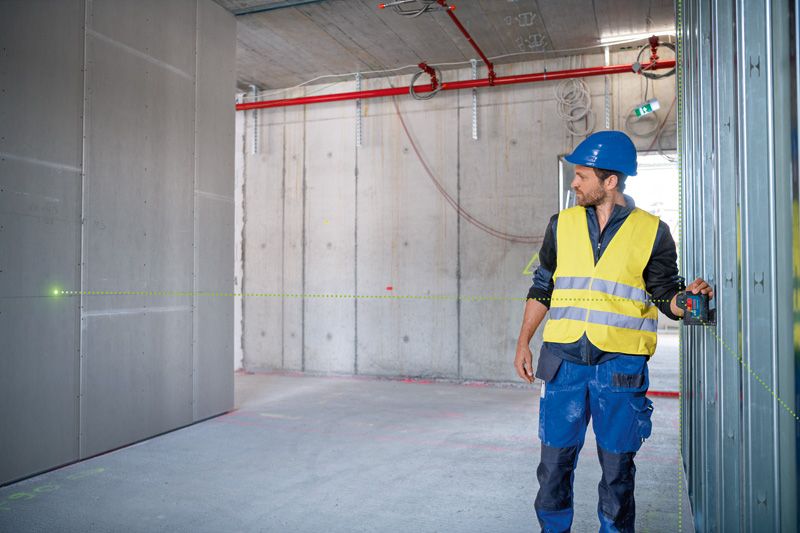

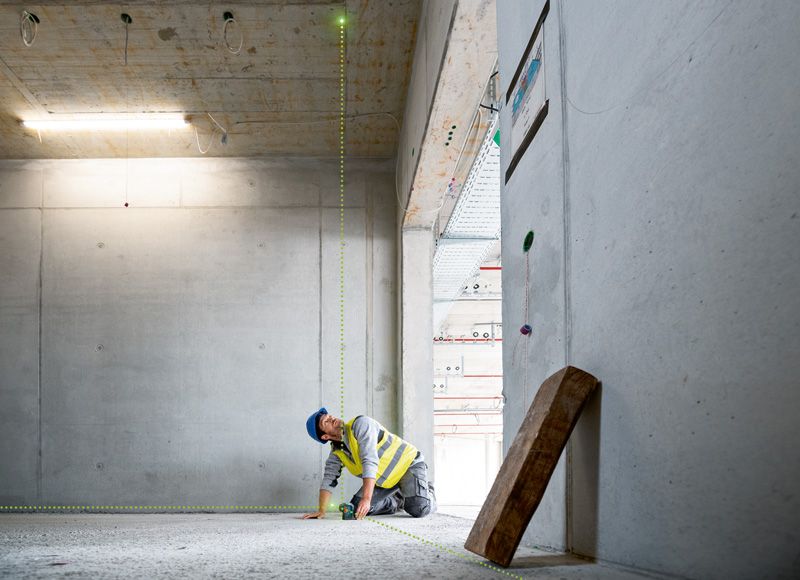

The GPL 5 G Professional is ideal for room partitioning with 90-degree angles and for transferring points from floor to ceiling. It is very suitable for jobs like plumbing and building frames for drywalls.

Additional Information

This 5-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
