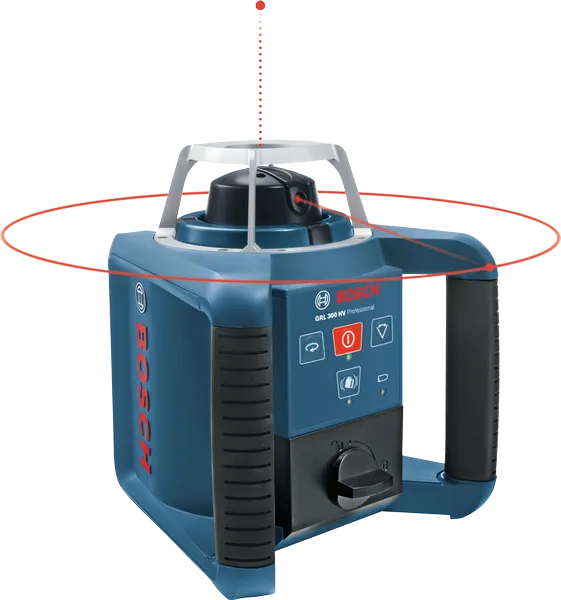

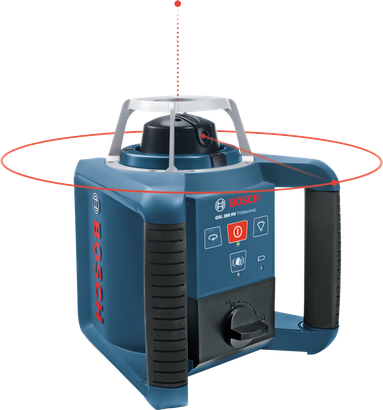

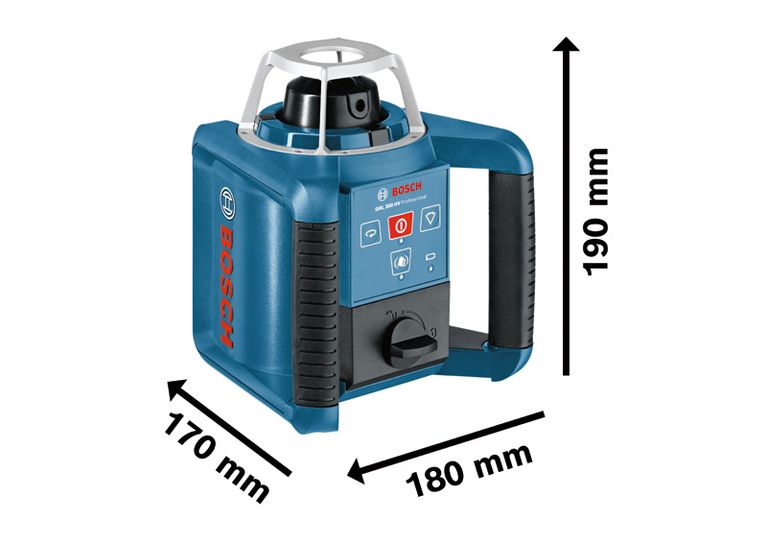

GRL 300 HV Professional

Rotation Laser

Easy handling with horizontal and vertical self-levelling

  • Easy to operate thanks to one button per function, and self-explanatory display
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations

Functions & key features

 Shock warning function gives an alarm if tool is moved
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
IP54 dust and splash water protection

Your Selection

  • in carrying case with 1 x 9 V block battery, accessory set
Show variant
4,845.00 AED
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 1 x 9 V block battery, accessory set 0 601 061 501
4,845.00 AED
Recommended retail price excluding VAT

GRL 300 HV Professional

Your Selection

GRL 300 HV
in carrying case with 1 x 9 V block battery, accessory set

Order number: 0 601 061 501

4,845.00 AED
Recommended retail price excluding VAT
Find a local dealer

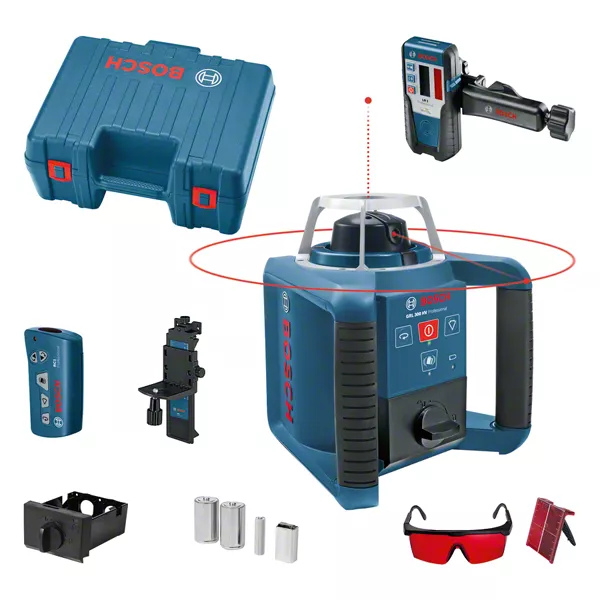

Included in this variant

  • Battery compartment (spare part number 1 608 M00 05D)

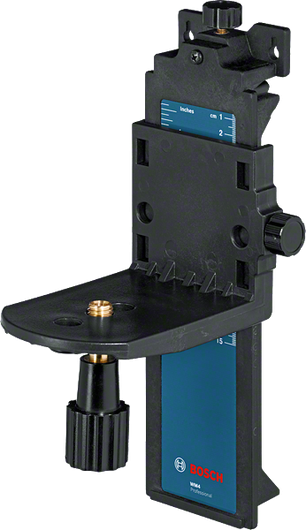

  • Universal mount WM 4 Professional
    Order number: 0 601 092 400
  • 1 x 1.5 V LR6 battery (AA)
  • Remote control RC1 Professional
    Order number: 0 601 069 900
  • 2 x 1.5 V LR20 battery (D)

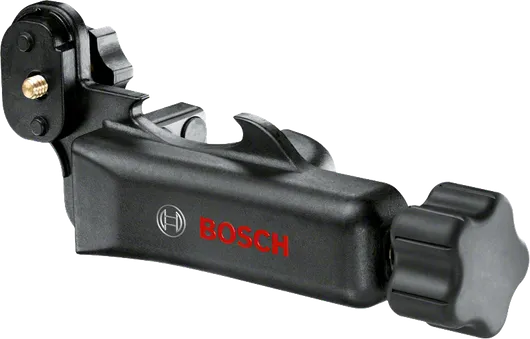

  • Holder also available separately as an accessory (spare part number 1 608 M00 70F)

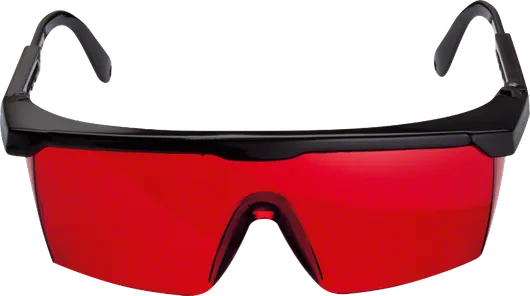

  • Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
  • Carrying case

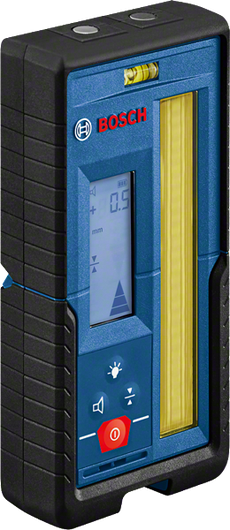

  • Laser Receiver LR 1 Professional
    Order number: 0 601 015 400

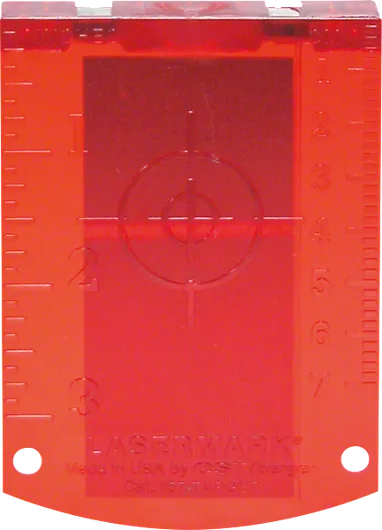

  • Laser target (red) (spare part number 1 608 M00 05C)
  • 1 x 9 V block battery (6LR61)

Technical data

Additional data

Working range with receiver, valuenull 300 m
Dust and splash protectionnull IP 54
Working range with receivernull up to 300 m (Diameter)
Accuracynull ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Laser diodenull 635 nm, < 5 mW
Operating temperaturenull -10 – 50 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 3R
Working range without receivernull up to 60 m (Diameter)
Self-levelling rangenull ± 5° (8%)
Levelling timenull 15 s
Rotation speednull 150, 300, 600 rpm
Power supplynull 2 x 1.5 V LR20 (D)
Tripod threadnull 5/8"
Weight, approx.null 1.8 kg
Colour of laser linenull red
Slope functionnull no
GRL 300 HV
