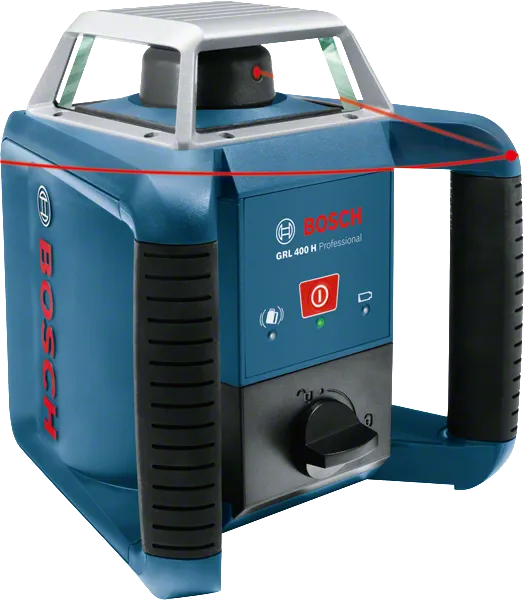

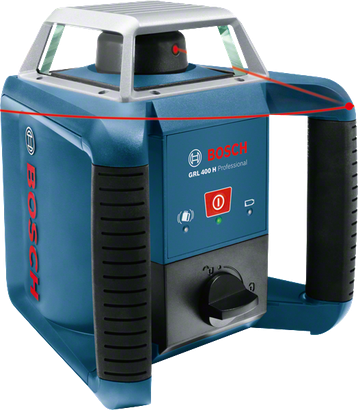

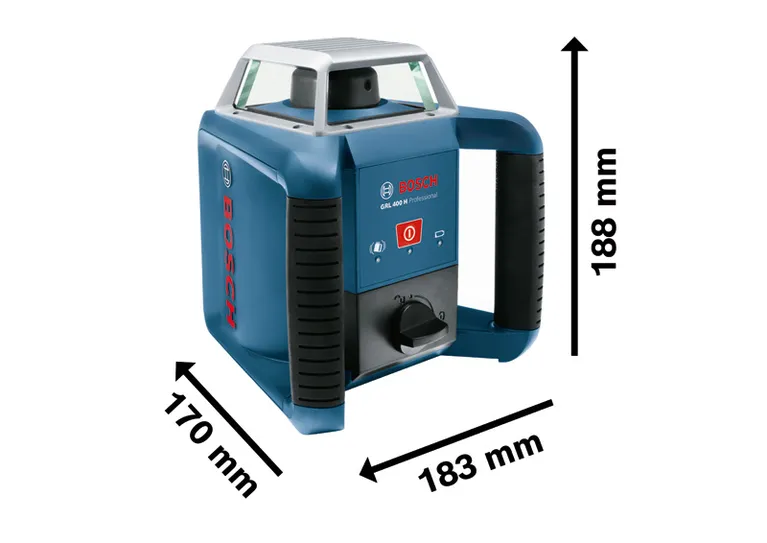

Rotation Laser GRL 400 H Professional

Jobsite-ready – the intuitive, single-button tool for outdoor-levelling applications

from  2,819.00 AED Recommended retail price excluding VAT.

Technical data
Additional data
Working range* 20   m
Working range with receiver* 400 m (Diameter)
Accuracy* ± 0.08 mm/m
Laser diode 635 nm, < 1 mW
Operating temperature, from -10   °C
Operating temperature, up to 50   °C
Operating temperature -10 – 50   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, value 400   m
Working range with receiver, appendage (Diameter)
Working range without receiver, value 20   m
Working range without receiver, appendage (Diameter)
Working range without receiver 20 m (Diameter)
Self-levelling range ± 8% (± 5°)
Levelling time 15   s
Dust and splash protection IP 56
Rotation speed 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 30 h
Tripod thread 5/8"-11
Weight, approx. 2   kg
Colour of laser line red
Compatible laser receivers LR 1

* Highlighted Data

Advantages

Jobsite-ready – the intuitive, single-button tool for outdoor-levelling applications

  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with 0.08 mm/m levelling accuracy and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56

Functions

Laser class 2 Laser class for measuring tools.
Shock Warning Shock warning function
Self Levelling 8% Self-levelling ± 8%
Working range of GRL 400 H Range with receiver 400 m
Working range of GRL 400 H Working range Ø 20 m
GRL 400 H Fast alignment due to a horizontal 360° laser line
Levelling accuracy 0.08 mm/m Measuring accuracy of 1.6 mm/30 m
Rotation mode Rotation speed 600 rpm
IP protection 56 Dust and splash protection IP56

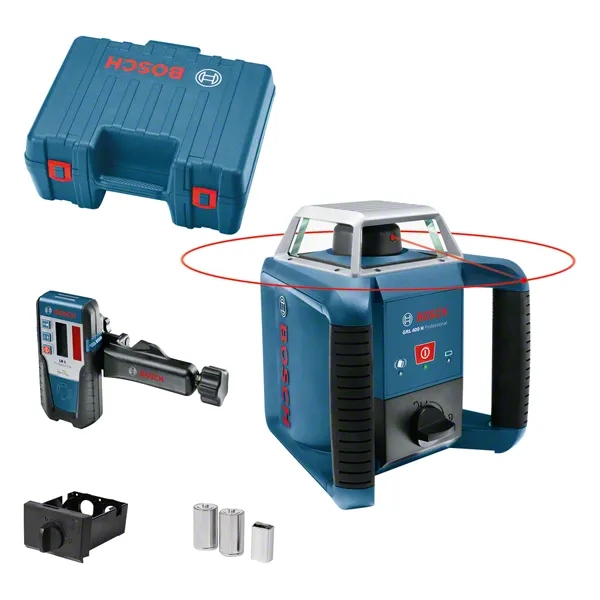

What’s Included in this Package
in carrying case with battery, accessory set
in carrying case with battery, accessory set
Order number: 0 601 061 800
  • Carrying case (spare part number 1 608 M00 05F)
  • Charger with adapter
  • Laser Receiver LR 1 Professional 0 601 015 400
  • Non-rechargeable battery compartment 1 609 203 M02
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • 2 x 1.5 V LR20 battery
  • 1 x 9 V block battery (6LR61)
2,819.00 AED Recommended retail price excluding VAT.

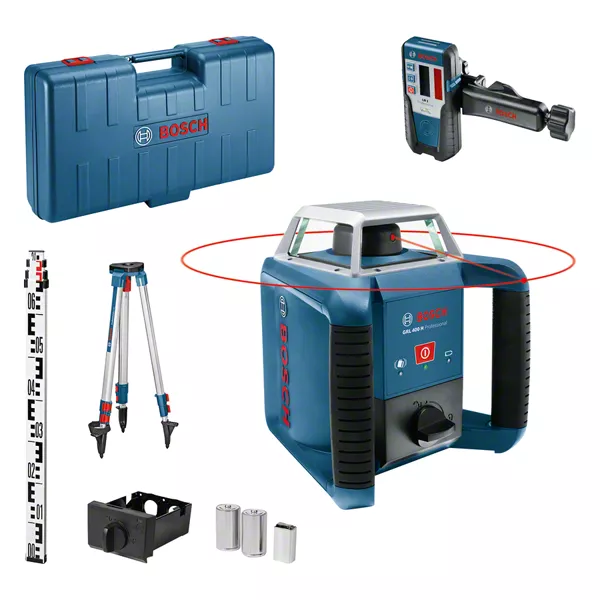

Product variations (2)

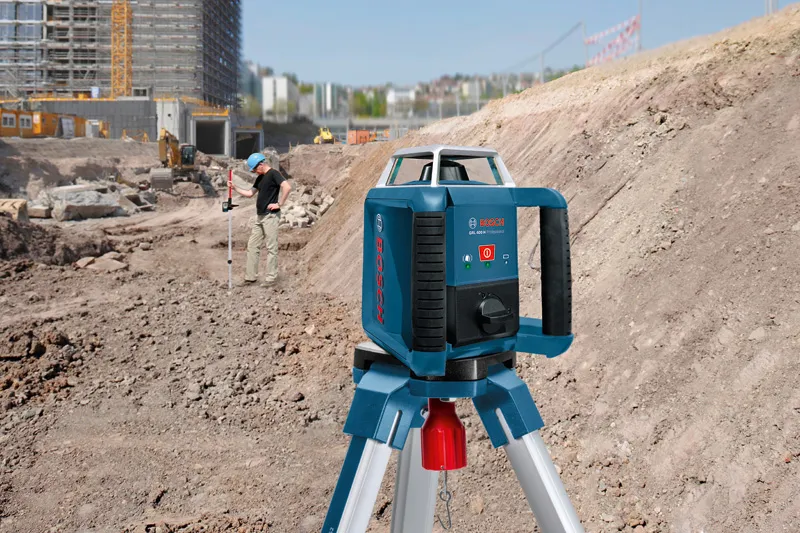

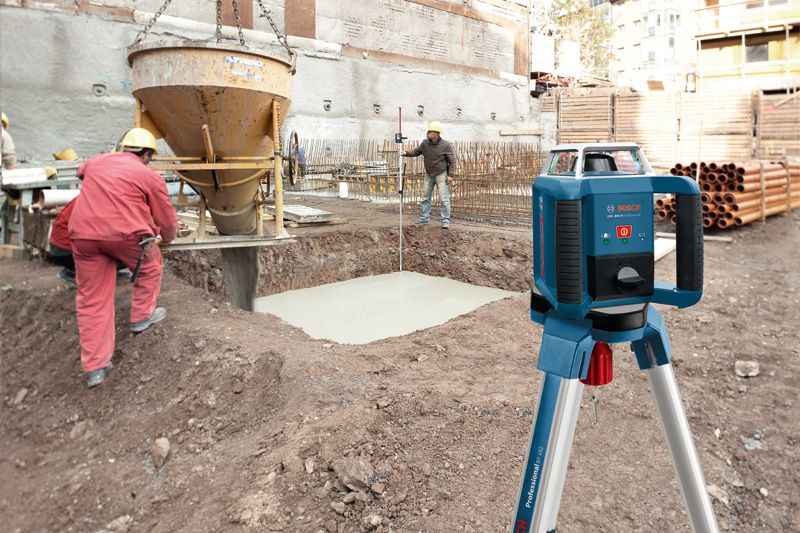

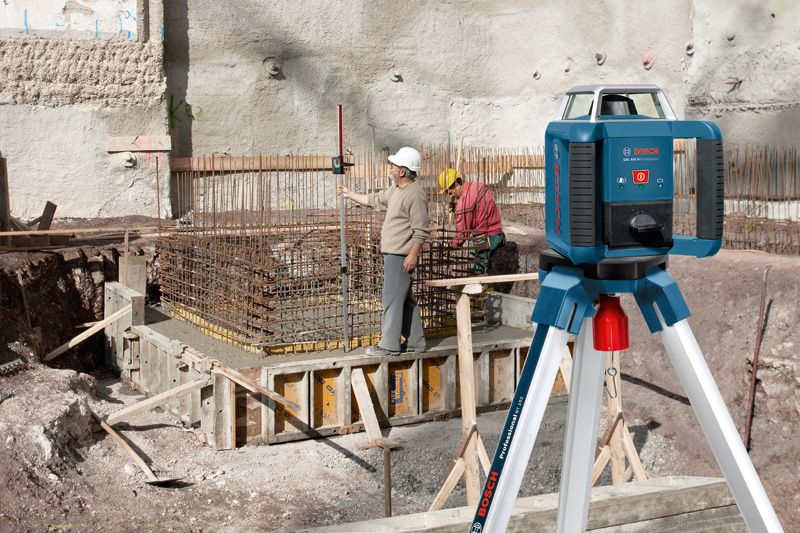

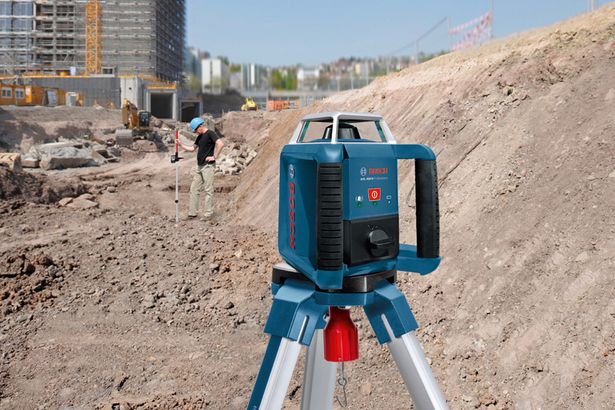

The GRL 400 H in action!
