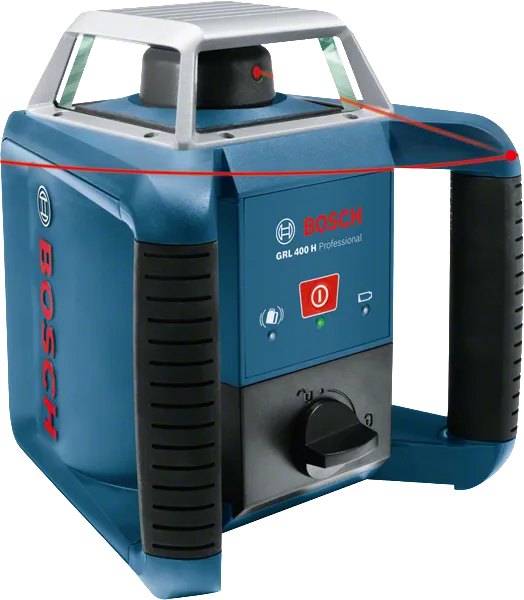

Rotation Laser GRL 400 H Set Professional

Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications

from  3,419.00 AED Recommended retail price excluding VAT.

Technical data
Additional data
Working range with receiver 400 m (Diameter)
Working range 20   m
Accuracy ± 2.4 mm at 30m
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Working range without receiver 20 m (Diameter)
Laser diode 635 nm, < 1 mW
Laser class 2
Self-levelling range ± 8% (± 5°)
Levelling time 15   s
Dust and splash protection IP 56
Rotation speed 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 30 h
Tripod thread 5/8"-11
Weight, approx. 2   kg
Colour of laser line red
Compatible laser receivers LR 1

Advantages

Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications

  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with 0.08 mm/m levelling accuracy and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
What’s Included in this Package
in carrying case with Accessory, receiver
in carrying case with Accessory, receiver
Order number: 0 615 994 0JY
  • Rotation Laser GRL 400 H Professional
  • Laser Receiver LR 1 Professional 0 601 015 400
  • Building Tripod BT 152 Professional
  • Measuring rod GR 2400 Professional
  • Carrying case
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • Charger set with adapter (spare part number 1 600 A00 1W3)
  • Non-rechargeable battery compartment 1 609 203 M02
  • 2 x 1.5 V LR20 battery (D)
  • 1 x 9 V block battery (6LR61)
3,419.00 AED Recommended retail price excluding VAT.
Product variations (2)

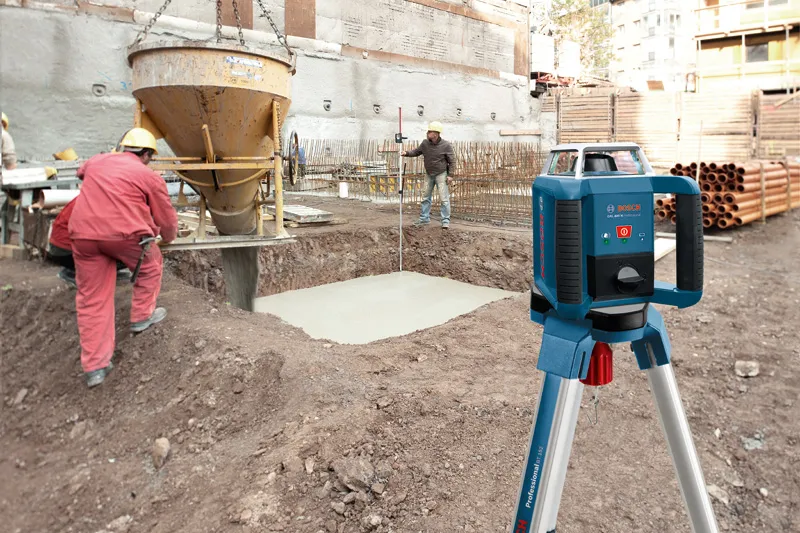

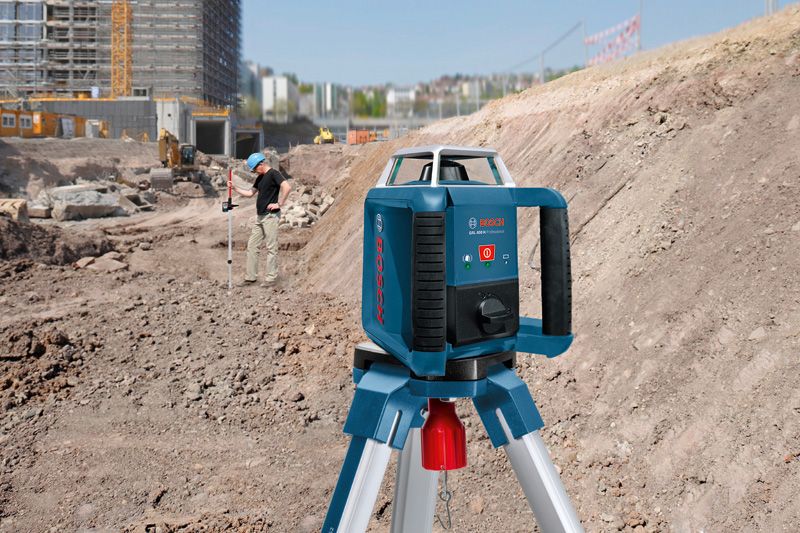

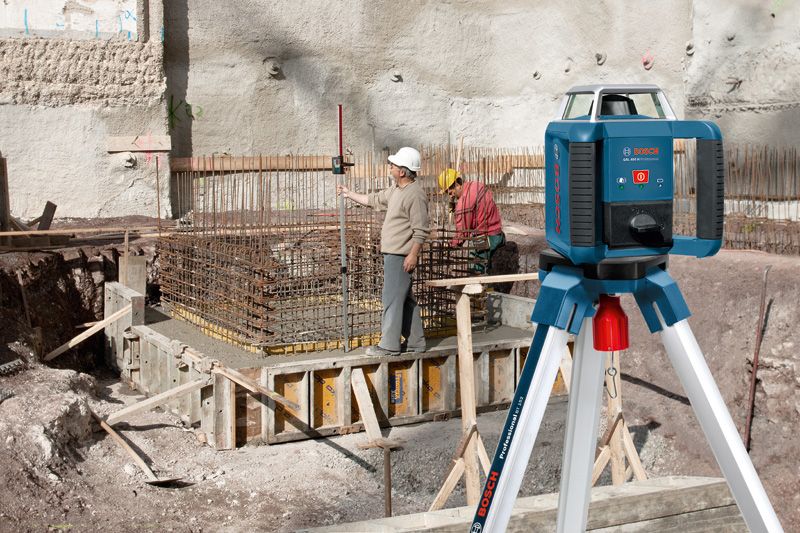

The GRL 400 H Set in action!
