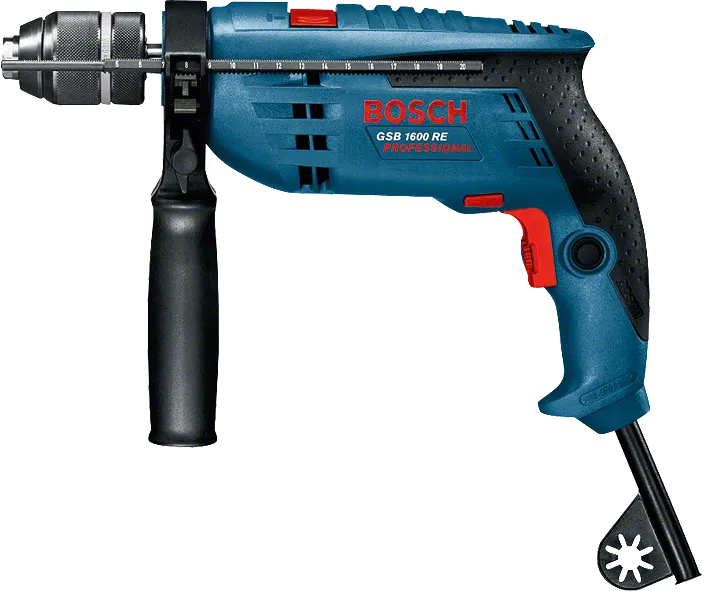

Impact Drill GSB 1600 RE Professional

Compact power – The most compact and powerful impact drill in its class

Technical data
Additional data
Rated input power* 701 W
Weight 1.9 kg
No-load speed 0 – 3,000 rpm
Power output 351 W
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm
Impact rate at no-load speed 0 – 48,000 bpm
Drilling range
Drilling diameter in concrete 16 mm
Drilling diameter in wood* 30 mm
Drilling diameter in steel 12 mm
Drilling diameter in masonry* 18 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.7 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 23 m/s²
Uncertainty K 3.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.

Advantages

Compact power – The most compact and powerful impact drill in its class

  • Robust and powerful 701 W motor for tough applications
  • Soft in line grip for a secure hold
  • Higher dynamic load rated ball bearing for long life

Functions

Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.

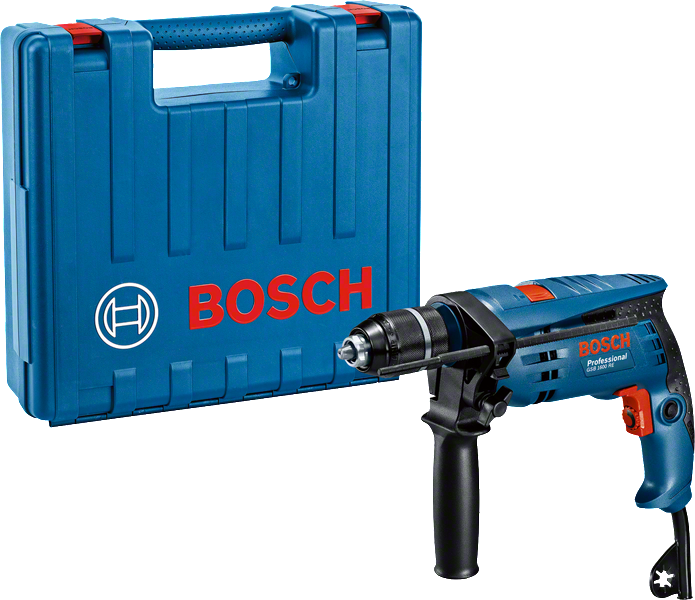

What’s Included in this Package
in carrying case with accessory set, (Voltage 110 V)
in carrying case with accessory set, (Voltage 110 V)
Order number: 0 601 218 162
  • Carrying case 2 605 438 607
  • Keyless chuck 13 mm 2 608 572 105
  • Voltage 110 V
  • Depth stop 210 mm 2 603 001 019
Product variations (2)
The GSB 1600 RE in action!
