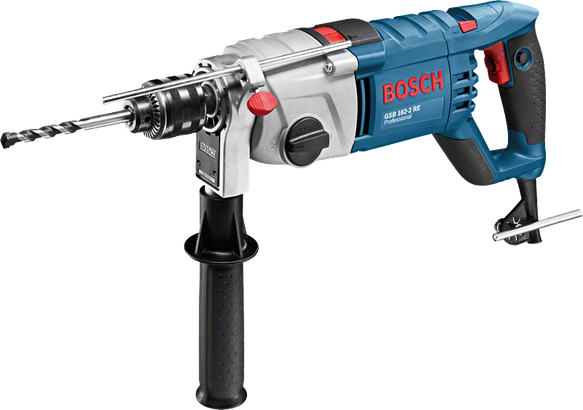

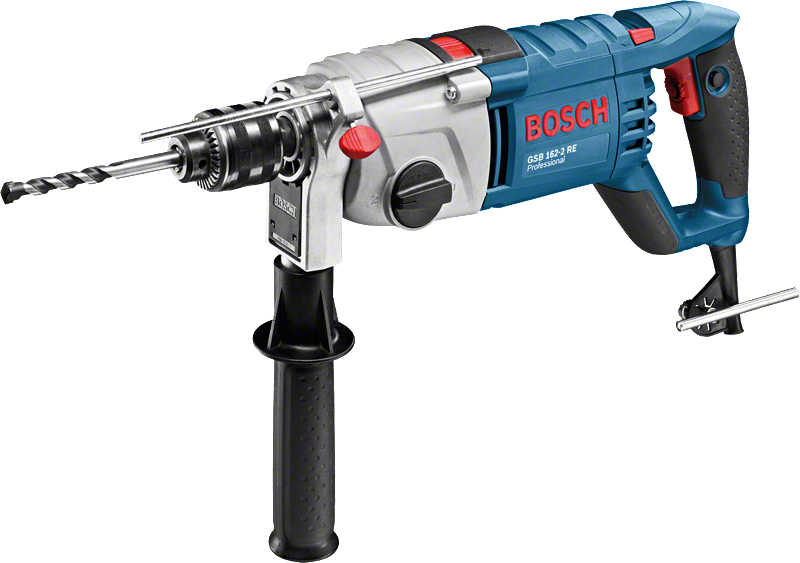

Impact Drill GSB 162-2 RE Professional

Powerful in every application – even when diamond dry drilling

Technical data
Additional data
Rated input power* 1,500 W
Weight 4.8 kg
No-load speed 0 – 750 / 1,800 rpm
Power output 840 W
Rated speed 555 / 1,300 rpm
Rated torque 17.0 / 5.0 Nm
Drill spindle connecting thread 5/8" – 16 UN
Chuck capacity, min./max. 3 – 16 mm

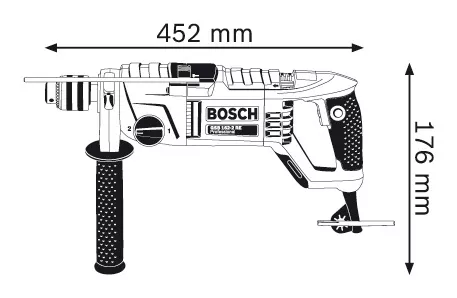

Tool dimensions (length) 452 mm
Tool dimensions (height) 176 mm
Impact rate at no-load speed 0 – 12,750 / 30,600 bpm
Drilling range
Drilling diameter in concrete 82 / 82 mm
Drilling diameter in wood* 50 / 32 mm
Drilling diameter in steel 20 / 14 mm
Drilling diameter in masonry* 162 / 82 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 6.9 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 15.6 m/s²
Uncertainty K 3.8 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 0.9 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.


Powerful in every application – even when diamond dry drilling

  • Very high torque for power-demanding applications
  • Bosch high-performance motor (1500 W) with high overload capacity for the toughest applications
  • Optimised speed for fast work progress when non-impact drilling with diamond core cutters up to 162 mm


Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque

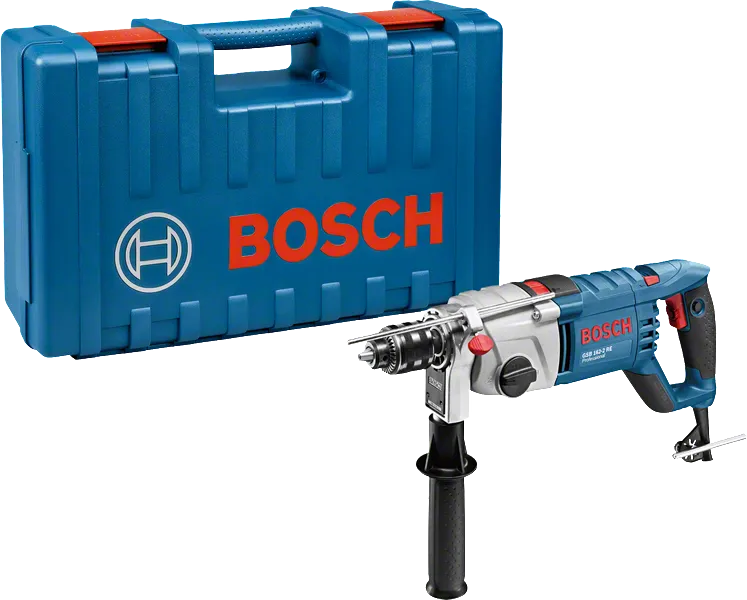

What’s Included in this Package
in carrying case with accessory set, (Voltage 240 V)
in carrying case with accessory set, (Voltage 240 V)
Order number: 0 601 18B 070
  • Auxiliary handle 2 608 025 205
  • Carrying case
  • Depth stop (spare part number 2 600 460 045)
  • Keyed chuck 16 mm 1 608 571 057
  • Voltage 240 V
The GSB 162-2 RE in action!
