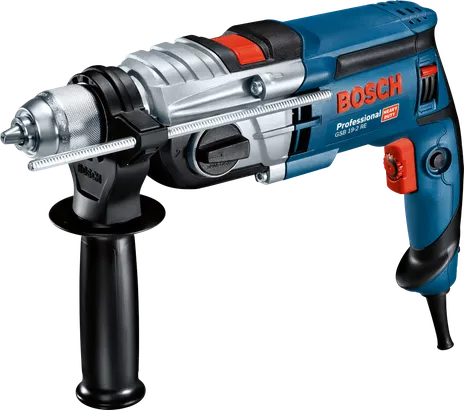

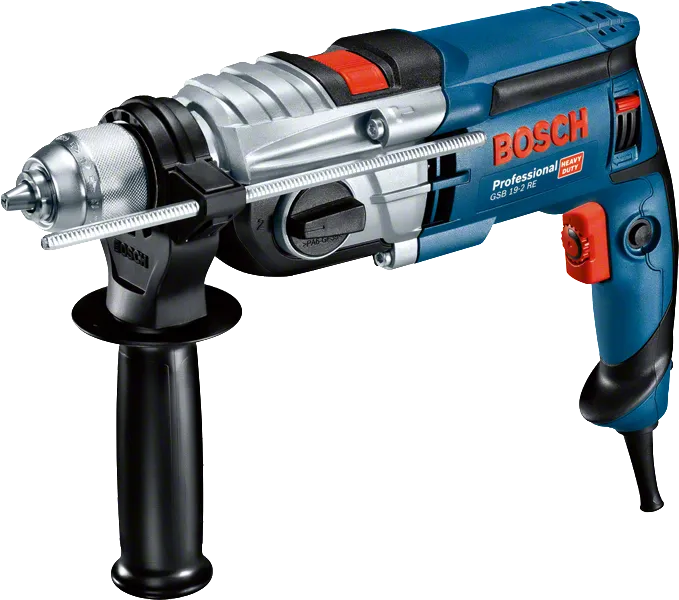

GSB 19-2 RE Professional

Impact Drill

The fastest and most versatile tool in its class

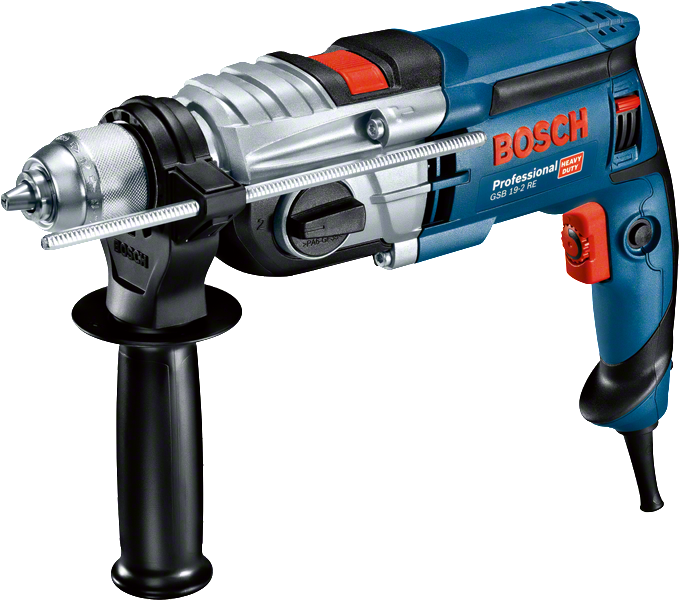

Powerful 2-speed impact drill (850 W) for the fastest work progress
Sturdy metal gear housing for a long lifetime
Antirotation mechanical overload clutch for a high level of work safety

Functions & key features

Your Selection

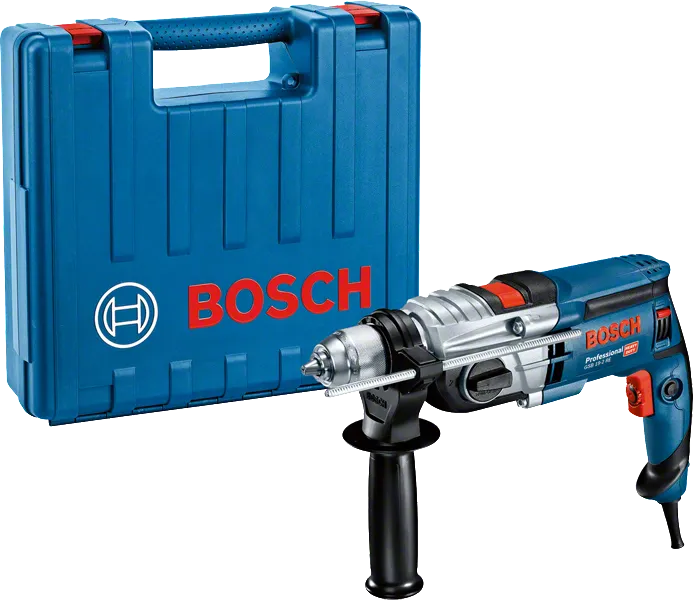

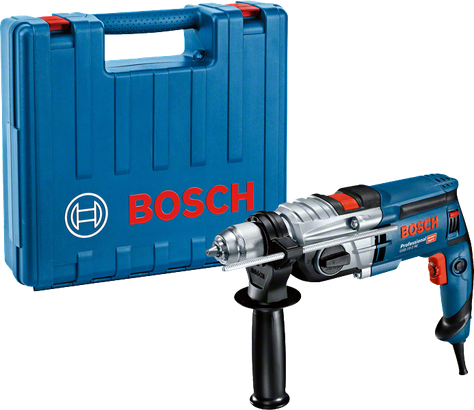

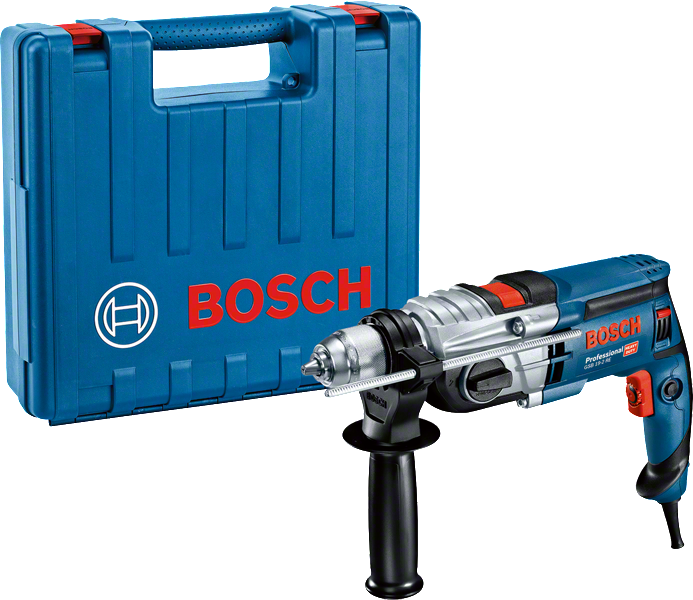

in carrying case with auxiliary handle, Accessory

Change variant

719.00 AED Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with auxiliary handle, Accessory 0 601 17B 560

719.00 AED Recommended retail price excluding VAT

Find a local dealer

Select a variant

Your Selection

in carrying case with auxiliary handle, Accessory

Order number: 0 601 17B 560

719.00 AED

Recommended retail price excluding VAT

Find a local dealer

Included in all variants

Auxiliary handle

Order number: 2 605 025 190
Carrying case

Order number: 2 605 438 524
Keyless chuck 13 mm

Order number: 2 608 572 149
Depth stop 210 mm

Order number: 1 613 001 010

Additional in this variant

Voltage 110 V

Your selection

Your Selection

in carrying case with auxiliary handle, Accessory

Order number: 0 601 17B 570

779.00 AED

Recommended retail price excluding VAT

Find a local dealer

Included in all variants

Auxiliary handle

Order number: 2 605 025 190
Carrying case

Order number: 2 605 438 524
Keyless chuck 13 mm

Order number: 2 608 572 149
Depth stop 210 mm

Order number: 1 613 001 010

Additional in this variant

Voltage 240 V

Select Variant

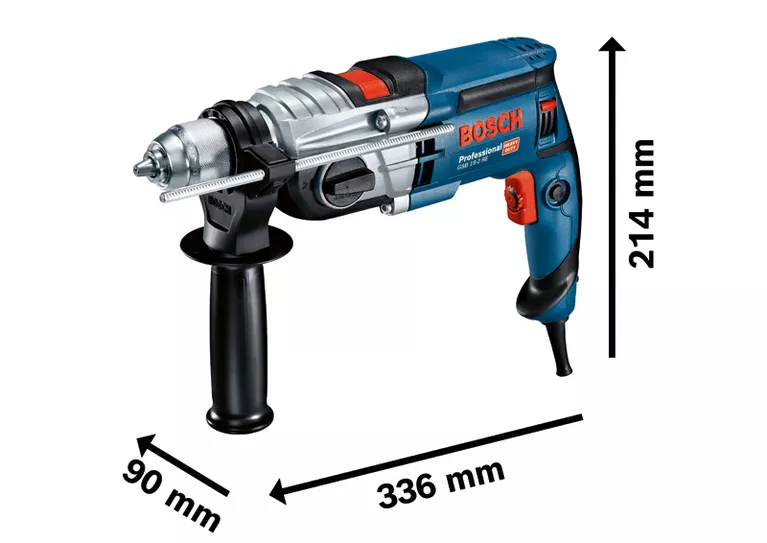

Technical data

Additional data
Rated input power	850 W
Weight	2.6 kg
Voltage, electrical	110 V
Bit holder	1/2"-20 UNF
No-load speed, 1st gear	0 – 1,000 rpm
No-load speed, 2nd gear	3,000 rpm
Power output	430 W
Impact rate at no-load speed	0 – 17,000 / 51,000 bpm
Rated speed	800 / 2,060 rpm
Rated torque	5.2 / 2.0 Nm
Drill spindle connecting thread	1/2"-20 UNF
Chuck capacity, min./max.	1.5 – 13 mm
Max. torque	36.0 Nm

Drilling range
Drilling diameter in wood	40 / 25 mm
Drilling diameter in steel	13 / 8 mm
Drilling dia. in stone	20 / 15 mm
Drilling diameter in masonry	20 / 15 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	2 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	99 dB(A)
Sound power level	110 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	15 m/s²
Uncertainty K	2 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

GSB 19-2 RE Professional: Further information

Product Highlights

The GSB 19-2 RE Professional is a corded 2-geared all-round performing impact drill. It has a reliable 850 W motor enabling fast work progress. It also features a rotation control clutch providing a high level of user protection. The impact drill is designed with a sturdy metal gear housing ensuring a long tool lifetime.

Equipment & Application

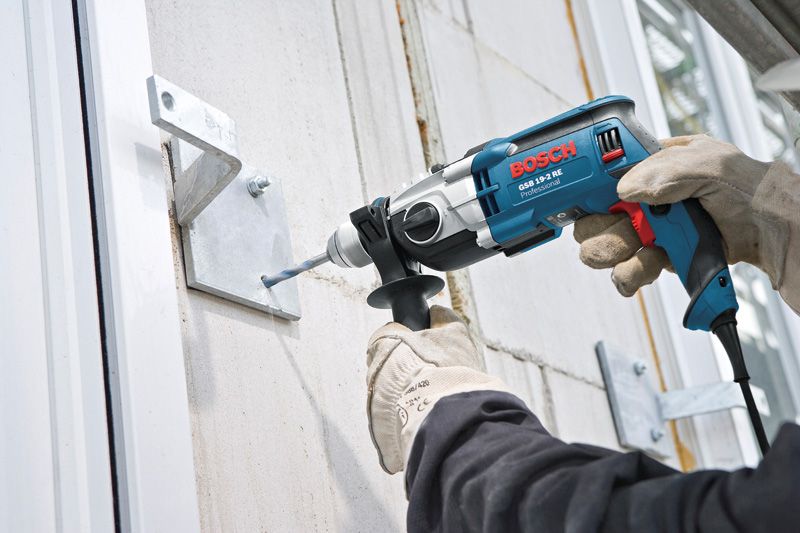

This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the attachment GDE 16 Cyl Professional.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
