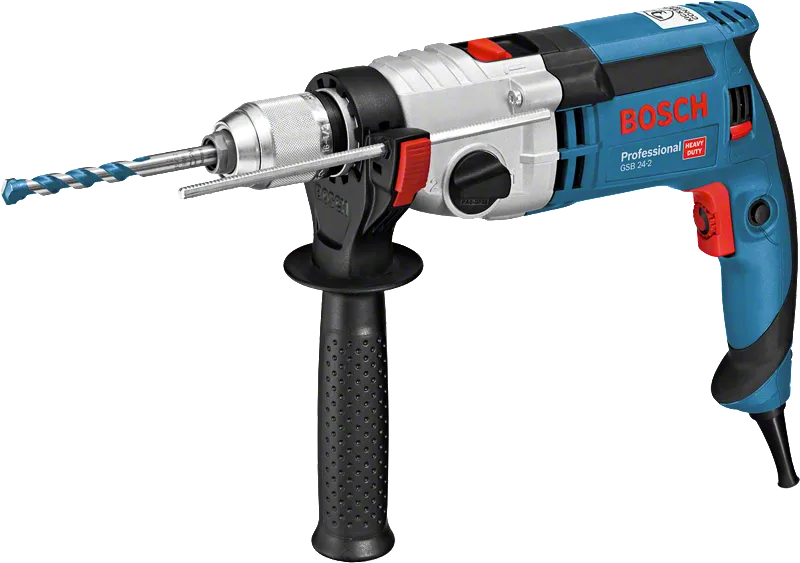

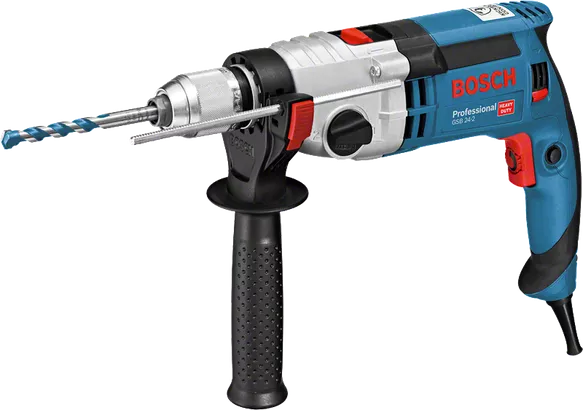

Impact Drill GSB 24-2 Professional

The powerful tool for toughest applications - now with the intelligent KickBack Control.

Technical data
Additional data
Rated input power* 1,100 W
Weight 2.9 kg
No-load speed 0 – 900 / 3,000 rpm
Power output 630 W
Rated speed 580 / 1,900 rpm
Rated torque 9.6 / 3.2 Nm
Chuck capacity, min./max. 1.5 – 13 mm

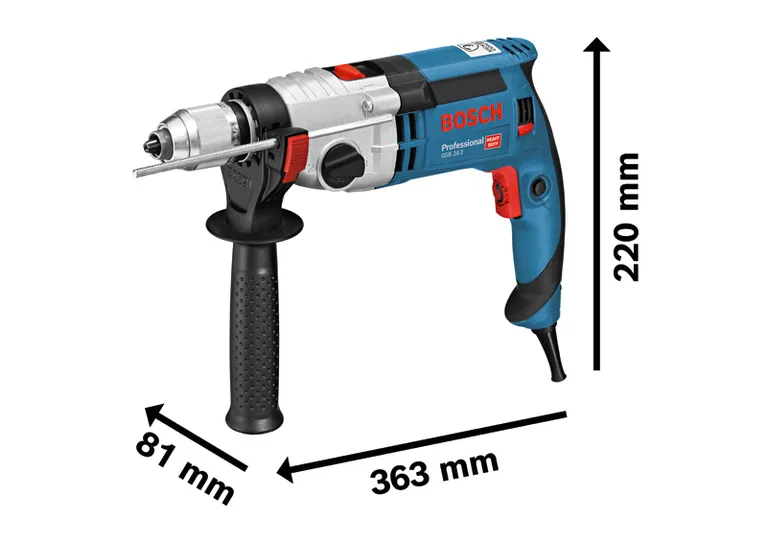

Tool dimensions (width) 90 mm
Tool dimensions (length) 335 mm
Tool dimensions (height) 220 mm
Impact rate at no-load speed 0 – 15,300 / 51,000 bpm
Max. torque 40.0 / 14.5 Nm
Drilling range
Drilling diameter in concrete 22 / 13 mm
Drilling diameter in wood* 40 / 25 mm
Drilling diameter in steel 16 / 8 mm
Drilling diameter in masonry* 24 / 16 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 5.6 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 14.6 m/s²
Uncertainty K 1.8 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.


The powerful tool for toughest applications - now with the intelligent KickBack Control.

  • Heavy-duty applications with large diameters due to the 1,100 W Bosch high-performance motor and high torque


Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Metal chuck 1.5 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
What’s Included in this Package
with accessory set
with accessory set

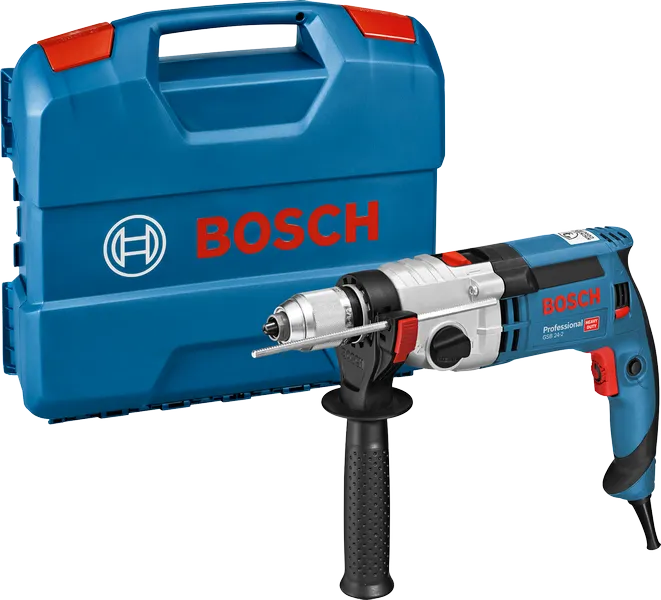

Order number: 0 601 19C 801

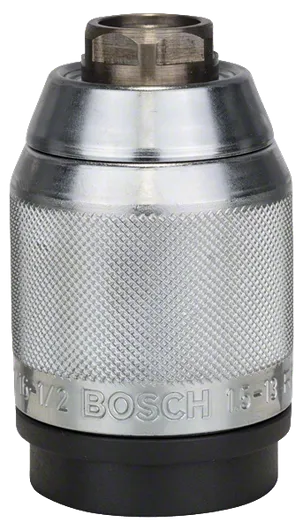

  • Keyless chuck 13 mm 2 608 572 150
  • Auxiliary handle 2 602 025 193
  • Depth stop 210 mm 1 613 001 010
  • L-Case 1 600 A00 M7X
Product variations (2)

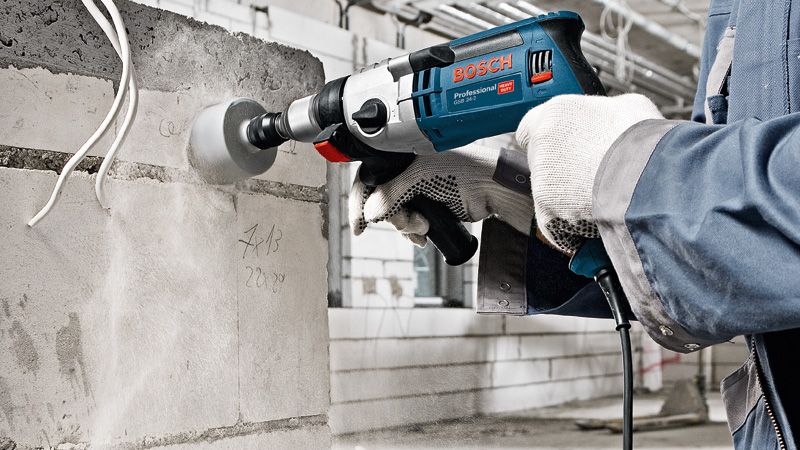

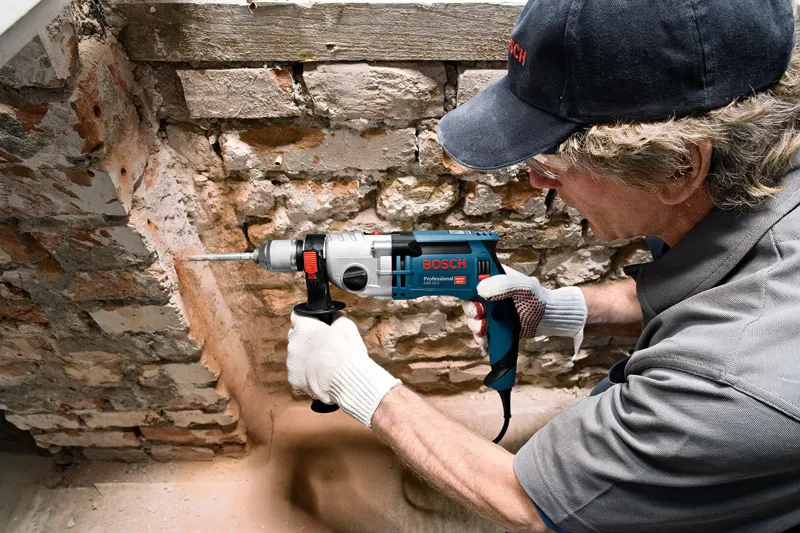

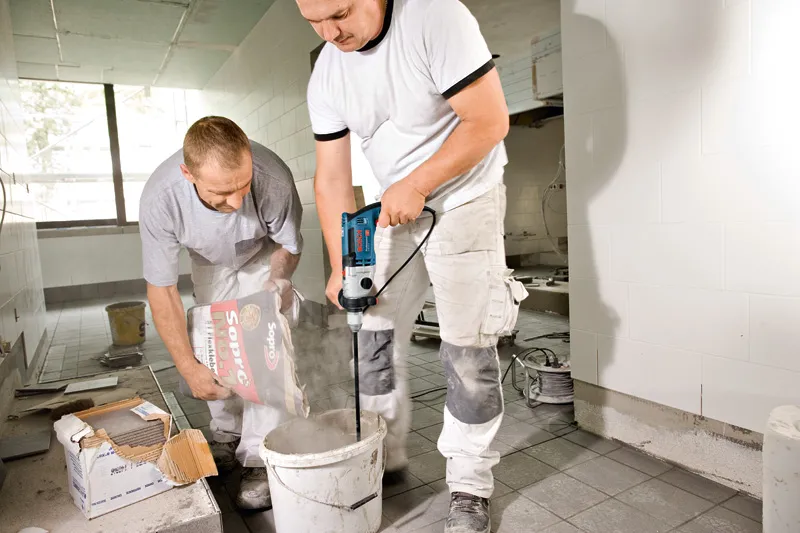

The GSB 24-2 in action!
