Technical data
| Additional data | |
|---|---|
| Rated input power* | 780 W |
| Stroke rate at no load | 500 – 3,100 spm |
| Weight | 2.7 kg |
| Cable length | 4 m |
| Cutting depth | |
|---|---|
| Cutting depth in wood* | 150 mm |
| Cutting depth in aluminium* | 20 mm |
| Cutting depth in non-alloyed steel | 10 mm |
| Total vibration values (Sawing wood) | |
|---|---|
| Vibration emission value ah | 7 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sawing sheet metal) | |
|---|---|
| Vibration emission value ah | 4 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 3 dB.
Advantages
The most powerful tool in its price class
- High power reserves, even in hard and thick beams, due to powerful and overload-capable 780-watt motor
- Extremely robust and bend-resistant sole plate for the toughest jobs
- High cutting precision due to new saw blade clamping system
Functions

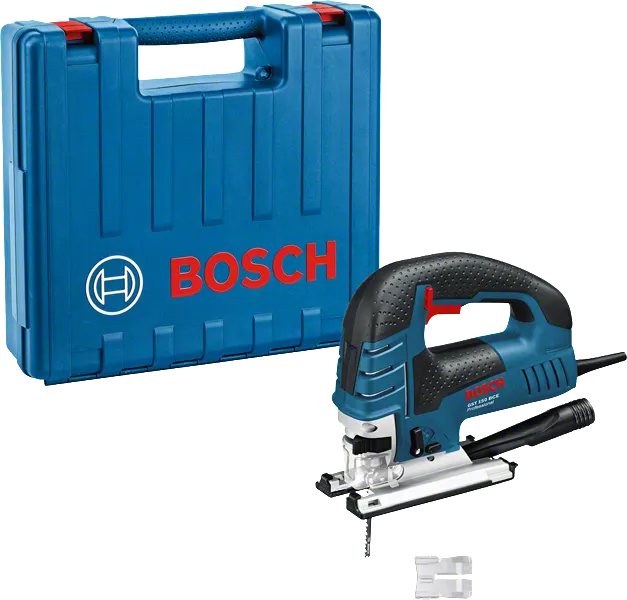

What’s Included in this Package
with accessory set, (Voltage 240 V)
Order number:
0 601 513 070
- Anti-splinter guard 2 601 016 096
- Dust extraction set 2 605 510 294
- Glide shoe (spare part number 2 601 099 183)
- Hood (spare part number 2 605 510 293)
- Suction nozzle (spare part number 2 605 730 055)
- Voltage 240 V
- 1 x jigsaw blade T 144 DP, Precision for Wood (available separately as set of 3: 2 608 633 A31)
