Tile Laser GTL 3 Professional

Fast tile laying due to additional line at 45°

Technical data
Additional data
Working range* 20 m
Laser diode 635 nm, < 1 mW
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Laser class 2
Working range with target plate 20 m
Angular accuracy, sign ±
Angular accuracy, value 0.2
Angular accuracy (between 0 – 90° angle) ± 0.2 mm/m
Dust and splash protection* IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h in 2-line mode
Weight, approx. 0.44 kg
Projection 3 lines

* Highlighted Data

Advantages

Fast tile laying due to additional line at 45°

  • In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
  • High accuracy of 0.2 mm/m
  • Compact and lightweight design for optimum ease of use

Functions

Laser class 2 Laser class for measuring tools.
Laser lines Projects laser lines at a 90° angle.

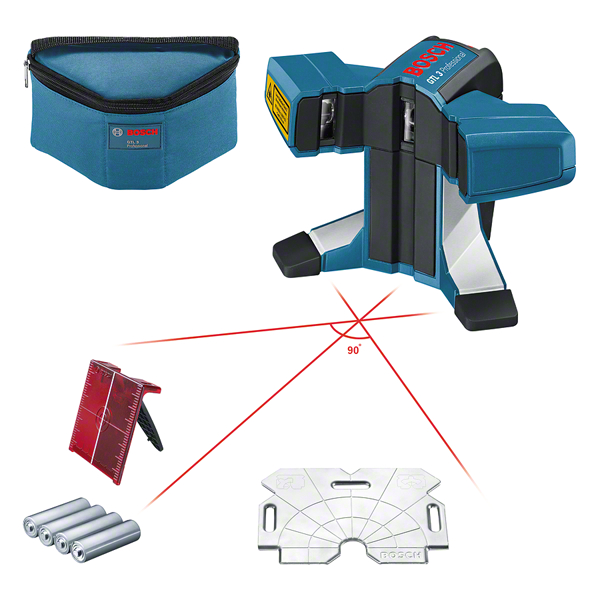

What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 015 200
  • Alignment disc
  • Laser target plate
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

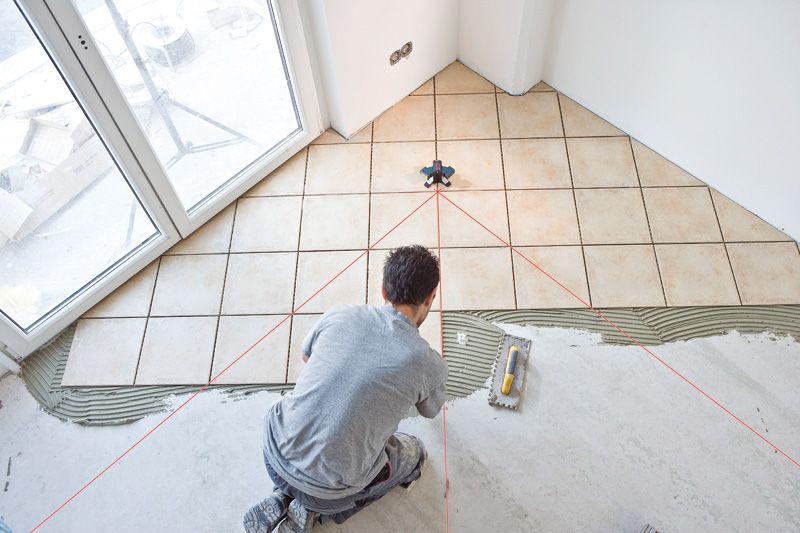

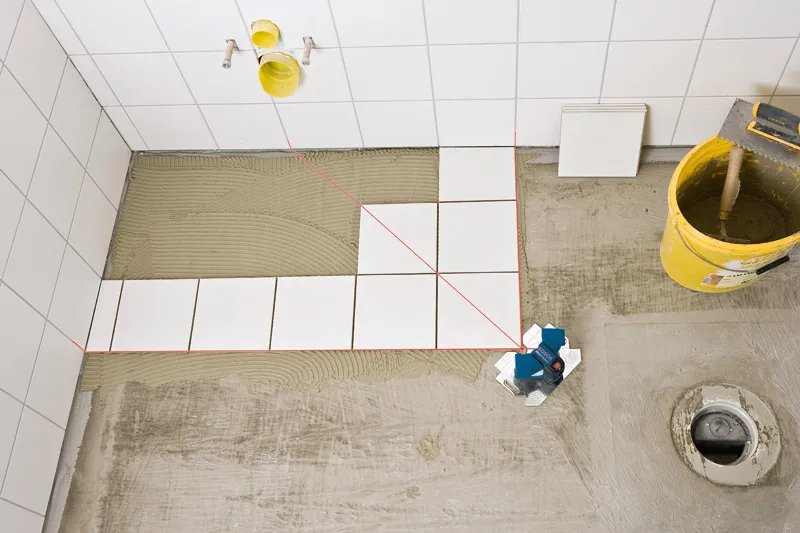

The GTL 3 in action!
