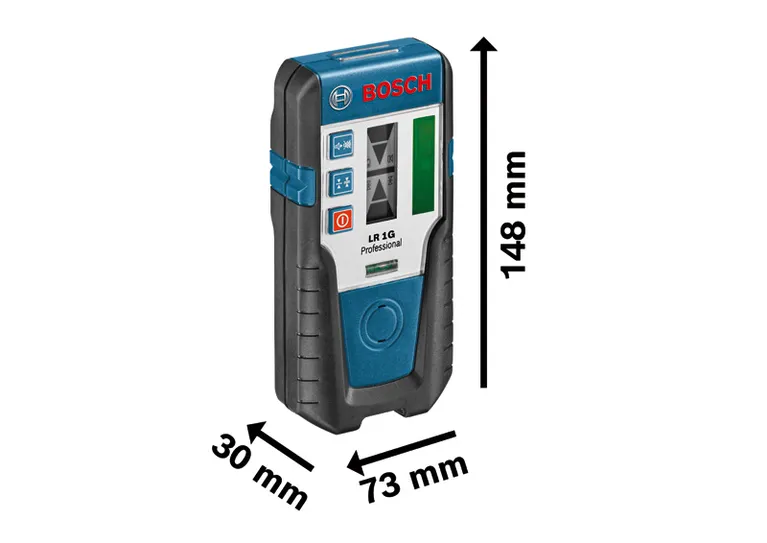

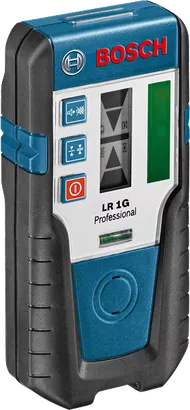

Laser Receiver LR 1G Professional

Increased benefit with accessories

Technical data
Additional data
Range of* 0 – 150 m
Power supply* 1 x 9 V 6LR61 Block
Dust and splash protection* IP 65
Remote control -
Receiver +
Range, from 0 m
Range, up to 150 m
Weight, approx. 250 g
Measuring accuracy, fine ± 1 mm
Measuring accuracy, rough ± 3 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

* Highlighted Data

Advantages

Increased benefit with accessories

  • Handy receiver for indoor and outdoor use for ranges of up to 150 m in combination with GRL 300 HVG Professional rotation laser
  • Visual and audible indication of green laser beam plane

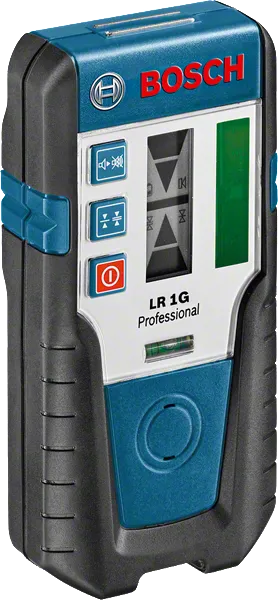

  • Dust and splash protection (IP65)

Functions

Strong Magnets Strong magnets for better mounting
Sound Activation Audible alignment of the laser beam level
Battery Indicator Battery indicator
Accuracy Measuring accuracy ± 3.0 mm
Accuracy Measuring accuracy ± 1.0 mm
Working range of LR 1 Range with receiver 400 m
Reception range 4.0 cm Reception range 4 cm
Two Sided Display Display on front and back

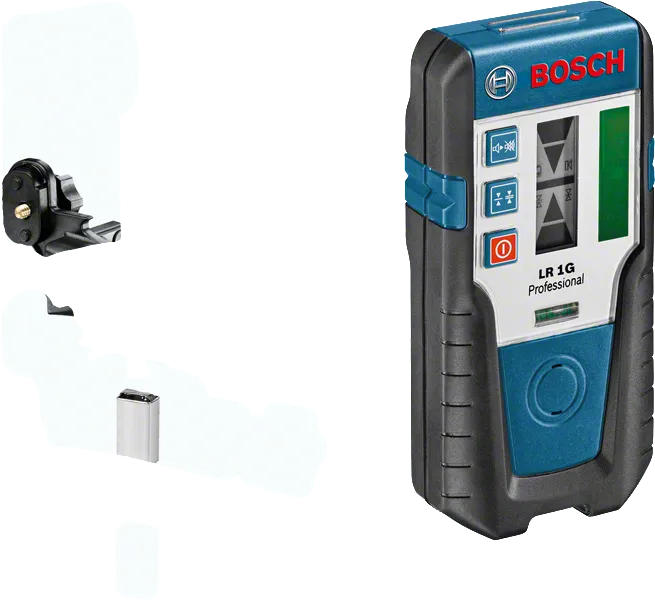

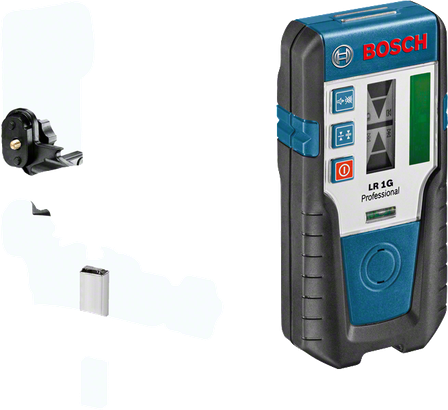

What’s Included in this Package
with 1 x battery (6LR61)
with 1 x battery (6LR61)
Order number: 0 601 069 700
  • 1 x 9 V block battery (6LR61)
The LR 1G in action!
