For large angle grinders with locking nut
Diameter mm
Bore diameter mm
Cutting width mm
Choose a pack size
Diameter mm 4 options
Bore diameter mm 22.23
Cutting width mm 2 options
Choose a pack size 2 options
Fits tools of most brands
With 22.23 mm bore for standard locking nut angle grinders
Standard for Universal Turbo Diamond Cutting Disc delivers reliable cuts in universal building materials
Available product options: 6
Part number | Diameter mm | Bore diameter mm | Cutting width mm | Segment height mm | Pack quantity | ||
---|---|---|---|---|---|---|---|

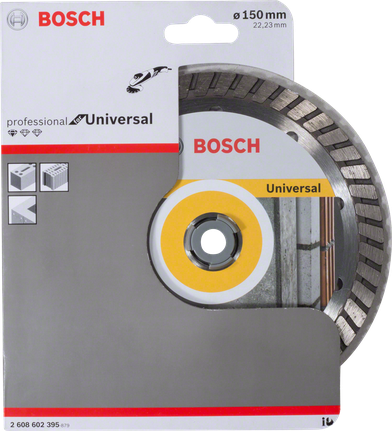

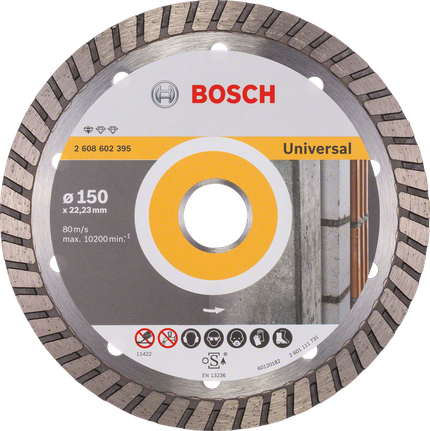

2 608 602 395 | 150 | 22.23 | 2.5 | 10 | 1 Pcs | Find a local dealer | |

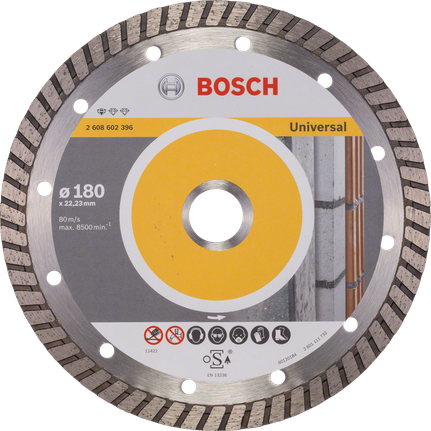

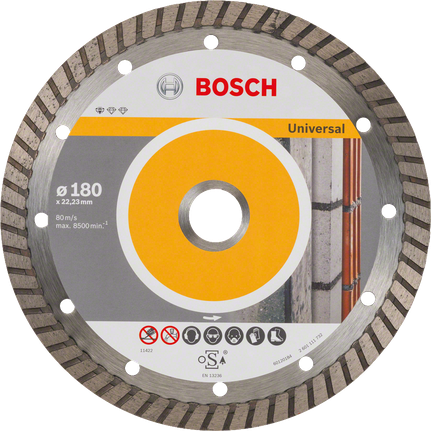

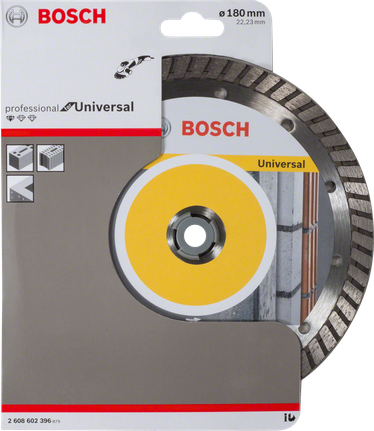

2 608 602 396 | 180 | 22.23 | 2.5 | 10 | 1 Pcs | Find a local dealer | |

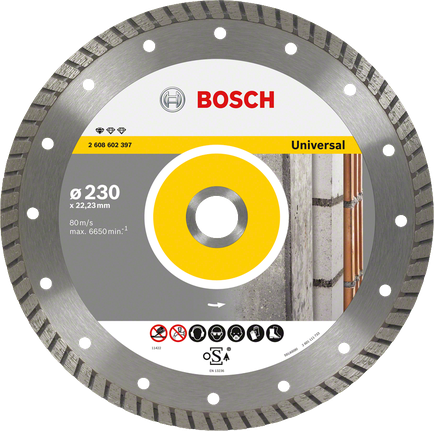

2 608 602 397 | 230 | 22.23 | 2.5 | 10 | 1 Pcs | Find a local dealer | |

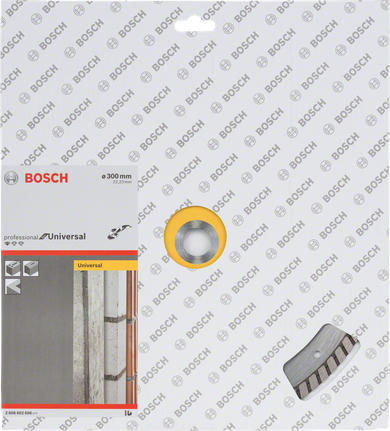

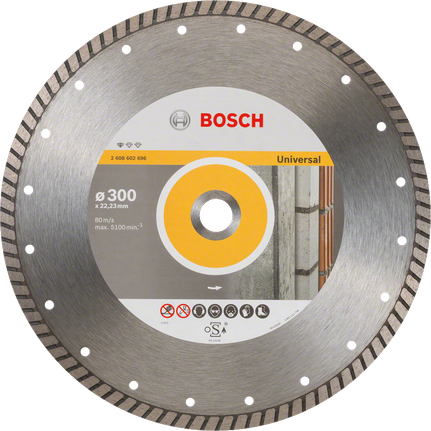

2 608 602 696 | 300 | 22.23 | 3.0 | 10 | 1 Pcs | Find a local dealer | |

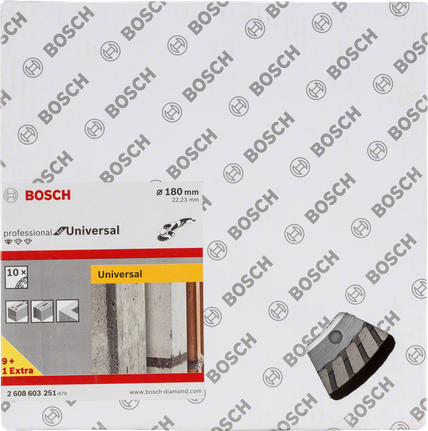

2 608 603 251 | 180 | 22.23 | 2.5 | 10 | 10 Pcs | Find a local dealer | |

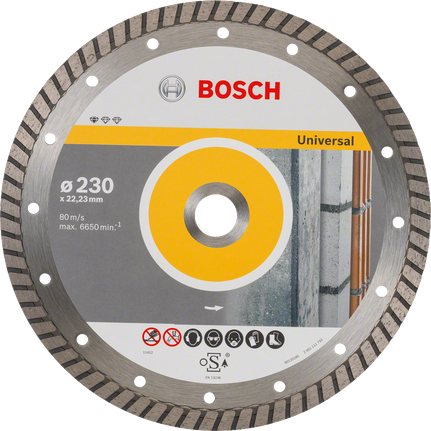

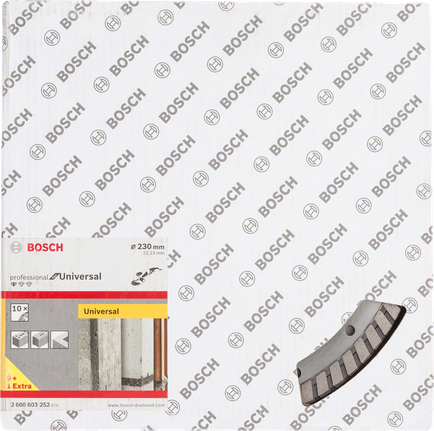

2 608 603 252 | 230 | 22.23 | 2.5 | 10 | 10 Pcs | Find a local dealer |
out of products
Most Bosch accessories are also compatible with competitors' power tools - look out for the ‘Universal Brand Fit’ logo on the packaging.

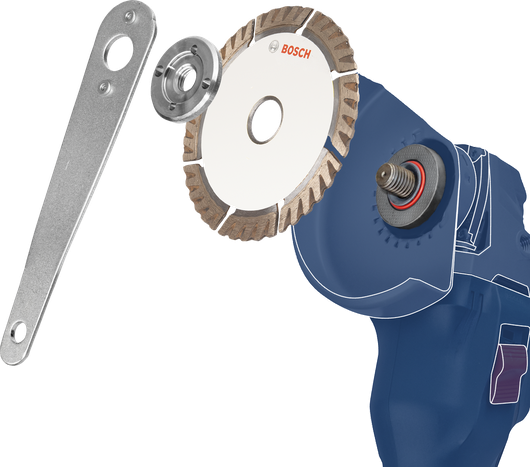

Yes, reduction rings can be removed and you can use the disc for another machine type - both borehole diameters are displayed on the packaging. To press the removed reduction ring back into the blade, use a stable base to make sure you don't bend the blade. Do not insert a reduction ring if the product was delivered without one, and never use third party reduction rings.
Our products are generally only recommended for materials that are displayed on the packaging.
The EXPERT Diamond Metal Wheel has been specifically designed to cut metal; most other diamond cutting discs are not suitable. Some multi material discs like Best for Universal or Best for Concrete can be used to cut rebar inside reinforced concrete, but they should not be used for pure metal applications. Each accessory has the materials you should use it for displayed on the back of the packaging.
We don't currently have a glass-cutting diamond blade in our portfolio.
Diamond cutting blades are not designed for this application and might damage the tiles. We recommend using a Bosch oscillating multitool to remove the joints without damaging the tiles.
Slight vibrations are normal. They are due to the high power of the machine and the tolerances of the accessory. The system will automatically reduce the level of vibrations when you start using your tool. Stronger vibrations can be caused by the damage to the spindle or the blade itself. In this case, you'll need to replace these parts.
Bosch changed the naming of different performance classes in the past. Standard was called Professional, but it's the same product. We are currently updating the naming to Bosch, PRO and EXPERT.
Outer diameter x bore hole x thickness x segment height (e.g. 180 x 22.23 x 2.2 x 5)
Designed to cut tiles, the disc has continuous rims to reduce chipping, but with the hardest tiles even this is not always enough. The EXPERT HardCeramic tile disc is Bosch’s top performance diamond disc for hard tiles. Thanks to a series of technologies and design features it makes the cleanest cuts. In thicker tiles and stone slabs (over 10 mm), using a wet cutter and a designated tile blade will give you the best results.
