For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 165
Number of teeth 3 options
Width of cut (b1) mm 1.8
Choose a pack size 1 Pcs

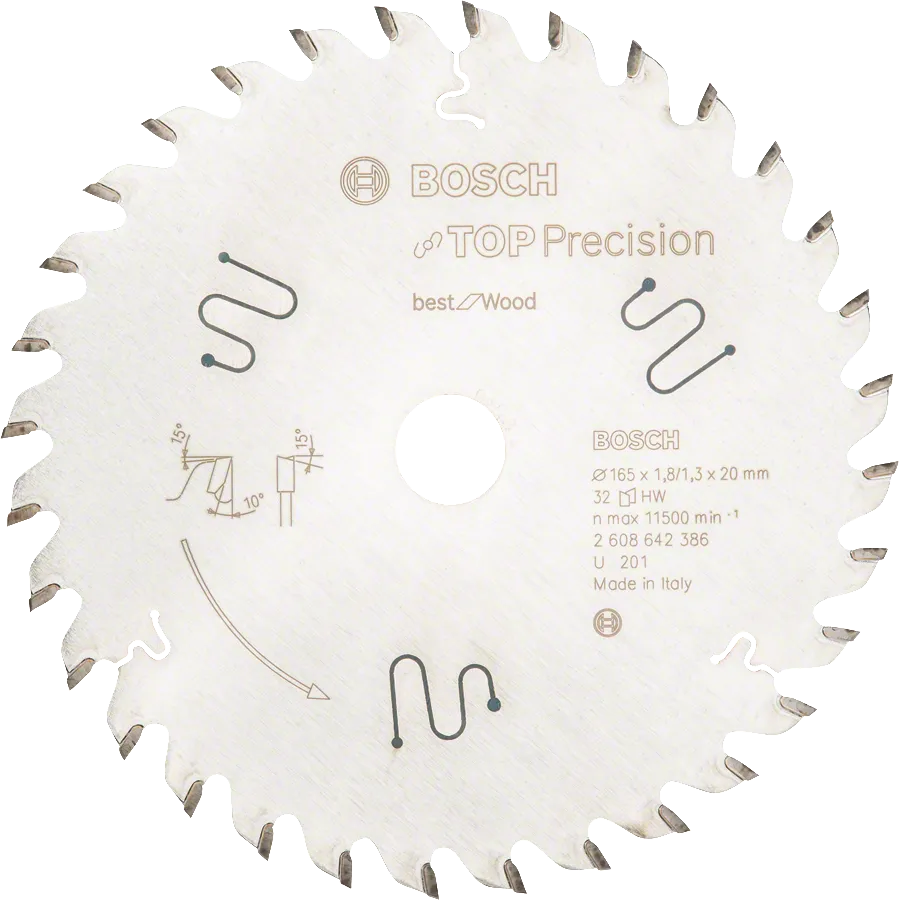

Best for Wood Circular Saw Blade offers industrial quality and performs highly demanding applications in wood
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 642 384 | 165 | 20 | 1.8/1.3 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 642 385 | 165 | 20 | 1.8/1.3 | 20 | 1 Pcs | Find a local dealer | |
| 2 608 642 386 | 165 | 20 | 1.8/1.3 | 32 | 1 Pcs | Find a local dealer |
out of products

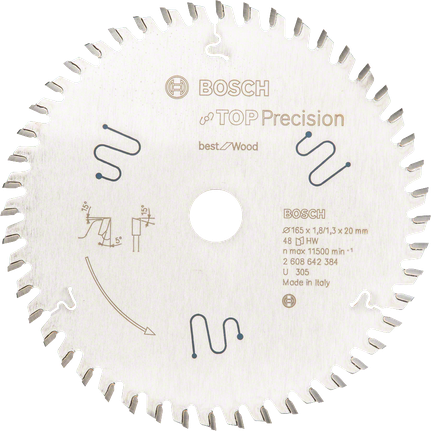

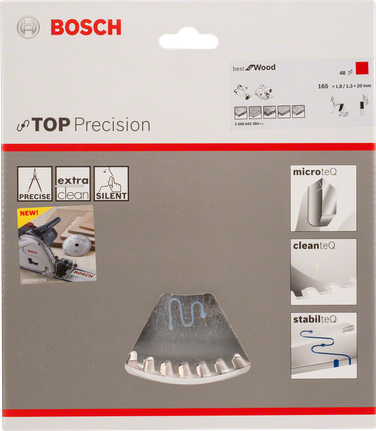

| Part number 2608642384 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |

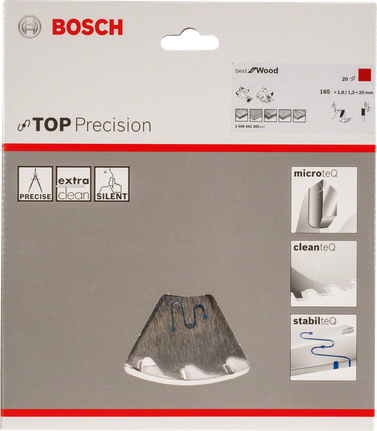

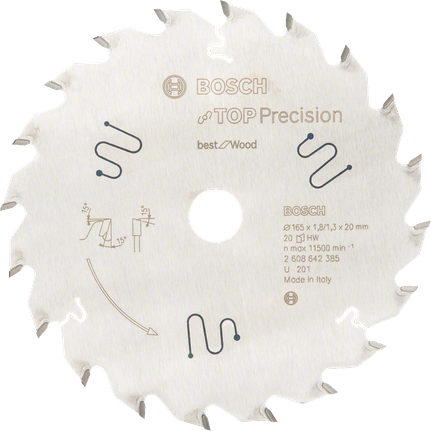

| Part number 2608642385 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 20 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

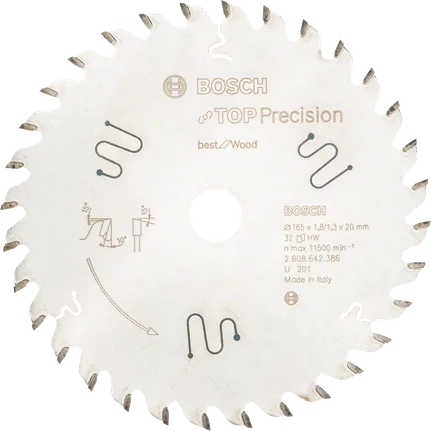

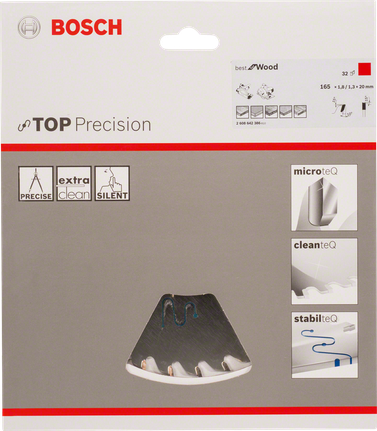

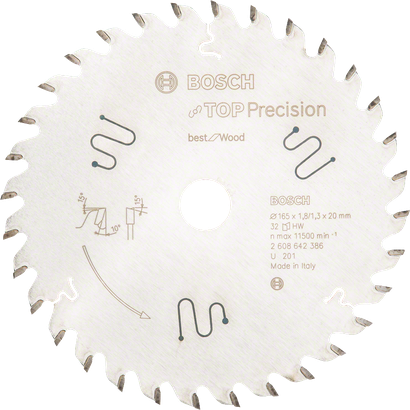

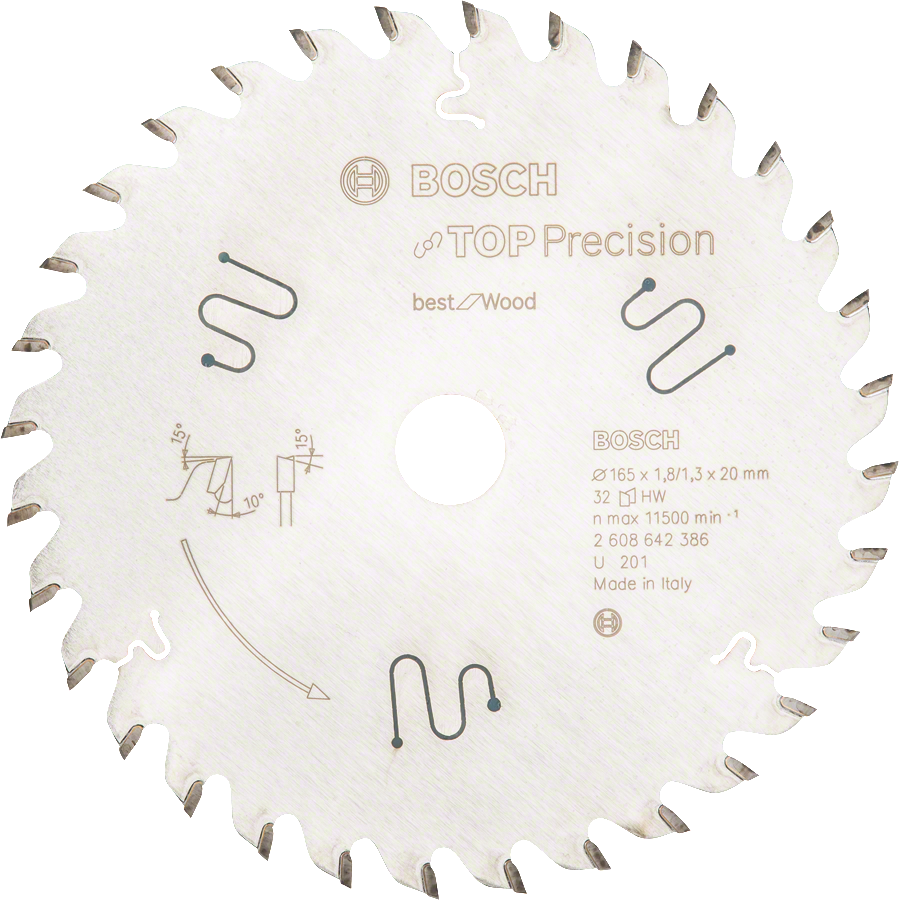

| Part number 2608642386 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 32 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
