Multi-Material Drill Bits
EXPERT

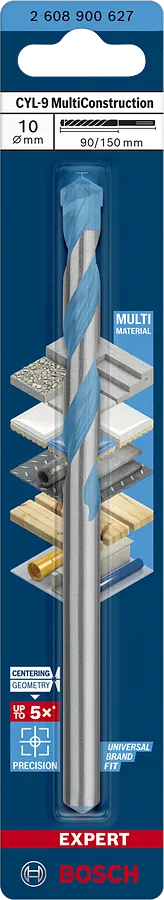

EXPERT CYL-9 Multi Construction Drill Bit

For impact drill/drivers, For rotary drills/drivers

EXPERT CYL-9 Multi Construction

Up to 5x more precise than a Bosch CYL-3 Drill Bit

  • High Precision drilling in multiple materials
  • Accurate drilling is easier with Bosch Centering Geometry
  • Start holes accurately with a specially designed centring tip
  • Cylindrical shank compatible with three-jaw drill chucks

Materials

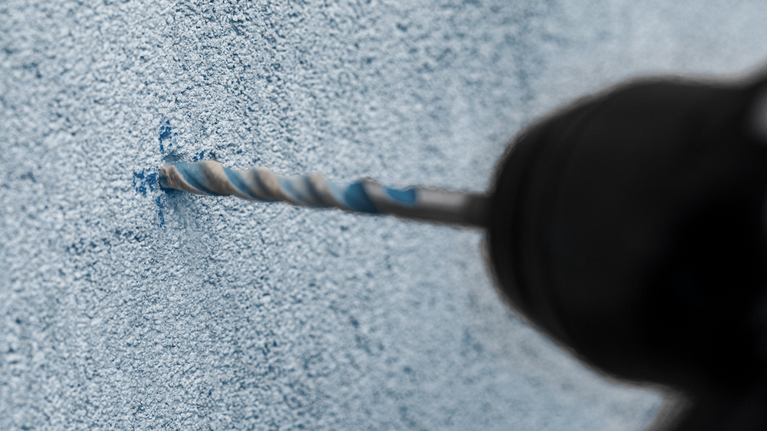

Concrete

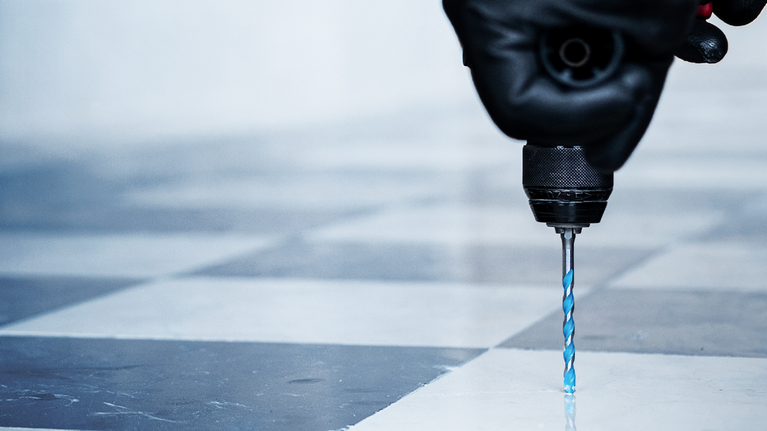

Soft tiles

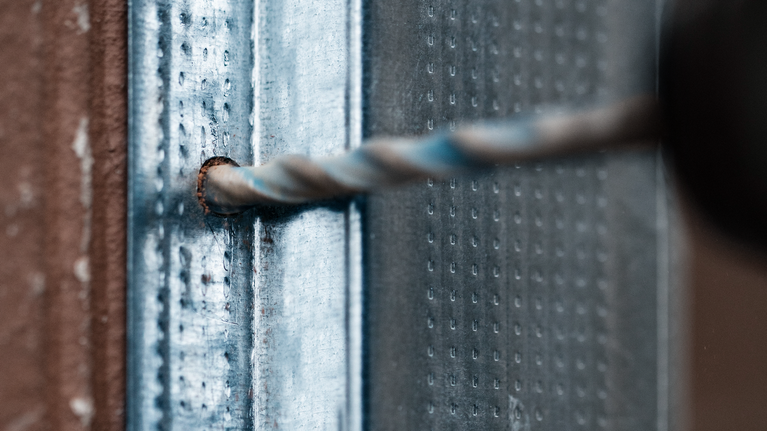

Steel
Softwood
Plastics
Select options

Diameter (D) mm 11 options

Working length mm 7 options

Total length mm 8 options

Choose a pack size 1 Pcs

Available product options (18)
from
41.00 GHS
Recommended retail price including VAT.

EXPERT CYL-9 Multi Construction Drill Bit
from
41.00 GHS
Recommended retail price including VAT.

High Precision drilling in multiple materials

High Precision drilling in multiple materials
  • 1

    Accurate drilling is easier with Bosch Centering Geometry

  • 2

    Start holes accurately with a specially designed centring tip

  • 3

    High-performance carbide tip manufactured by fine grinding

  • 4

    Optimised dust extraction channel for fast, efficient drilling

Centering Geometry
For impact drill/drivers, For rotary drills/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

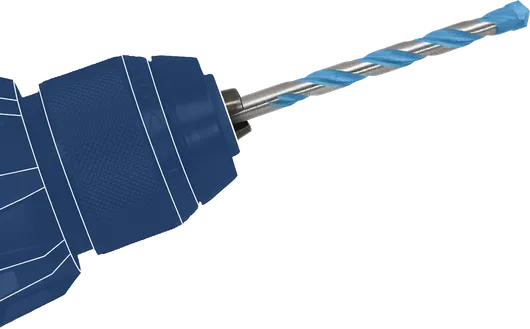

Cylindrical shank compatible with three-jaw drill chucks

EXPERT
Advantage

Precise Drilling in Every Material

EXPERT CYL-9 Multi Construction Drill Bit for Maximum Precision Drilling Multiple Materials

The modern construction site requires working on many different materials and you never know what you will need to drill next. Finding the right drill bit can be difficult and time-consuming – unless you have the EXPERT Multi Construction Drill Bit.

View more
imageAlt

Product Options

Available product options: 18

Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price
2 608 900 600 3.00 40 70 1 Pcs Find a local dealer
2 608 900 604 4.00 40 75 1 Pcs 41.00 GHS Find a local dealer
2 608 900 606 5.00 50 85 1 Pcs 41.00 GHS Find a local dealer
2 608 900 611 6.00 60 100 1 Pcs 56.00 GHS Find a local dealer
2 608 900 612 6.00 90 150 1 Pcs Find a local dealer
2 608 900 615 6.50 60 100 1 Pcs Find a local dealer
2 608 900 616 6.50 90 150 1 Pcs Find a local dealer
2 608 900 618 7.00 60 100 1 Pcs Find a local dealer
2 608 900 621 8.00 80 120 1 Pcs 50.00 GHS Find a local dealer
2 608 900 622 8.00 90 150 1 Pcs Find a local dealer
2 608 900 626 10.00 80 120 1 Pcs 65.00 GHS Find a local dealer
2 608 900 627 10.00 90 150 1 Pcs Find a local dealer
2 608 900 631 12.00 90 150 1 Pcs 106.50 GHS Find a local dealer
2 608 901 484 8.00 200 250 1 Pcs Find a local dealer
2 608 901 485 10.00 200 250 1 Pcs Find a local dealer
2 608 901 486 12.00 200 250 1 Pcs Find a local dealer
2 608 901 488 14.00 200 250 1 Pcs 170.00 GHS Find a local dealer
2 608 901 489 16.00 150 200 1 Pcs Find a local dealer

out of products

Frequently asked questions

The HEX shank has several benefits over the CYL shank. While both shank types fit into three-jaw chucks of a standard drill, the HEX shank offers a more secure connection: due to its geometry it won’t slip in the chuck. The HEX shank ensures maximum power transfer from your machine to the drill bit. The HEX shank also gives you more flexibility when choosing your tool: you can use it with standard drills with three-jaw chucks as well as impact drivers with ¼” internal hexagon tool holders. The 3-wing shank of our CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits similar to those of the HEX shank: it fits in the chuck securely, it doesn’t slip and ensures maximum power transfer from your machine to the drill bit.

CYL-1: Suitable for brick and limestone. CYL-3: Suitable for concrete, soft stone, brick and limestone. CYL-5 / HEX-5: Suitable for concrete, soft stone, brick and limestone. The 3-wing shank of CYL-5 drill bits only fits three-jaw chucks, but otherwise it offers benefits of the HEX shank: it ensures a strong connection and maximum torque transmission from your machine to the drill bit. The HEX shank is also versatile: it fits into standard drills with three-jaw chucks and impact drivers with ¼"" internal hex tool holders. CYL-9 / HEX-9 Multi Construction: Suitable for various materials, including concrete, brick, soft ceramic tiles, wood, plastics, sheet metals, aluminium and multi-layered (sandwich) materials. The HEX shank ensures a strong connection and maximum torque transmission from your machine to the drill bit. It’s also versatile: it fits into standard drills with three-jaw chucks and impact drivers with ¼"" internal hex tool holders. Impact and Rotary drill bits come in diameters of up to (and including) 16 mm and total lengths of up to (and including) 400 mm. For larger diameters and lengths use SDS plus and SDS max drill bits for concrete and stone applications.

A tile’s hardness is not always easy to determine. The Mohs scale or PEI rating is often used to indicate the grade of the material’s hardness. The price of the tile can also help you estimate its hardness: hard tiles normally cost more than the soft ones. The size of your tile can be an indicator as well. The tiles 30x30 cm or larger are normally hard (as, otherwise, considering their size, they would easily break).

Choose gear 2 for the fastest results in all materials except for ceramic tiles. If your power tool doesn’t have gear settings, keep the speed at a high rpm, using the trigger. When drilling in ceramic tiles, the power tool should be set to gear 1 to prevent the drill bit from overheating. If you’re using a corded tool, in addition to setting it to gear 1, you also need to control the speed by pushing the trigger halfway only in order not to go over 500 rpm (as, otherwise, it will go up to 1000 rpm). If you’re using a cordless tool, you don’t need to control the speed through the trigger once the tool is set to gear 1, due to cordless tools’ lower rpm limit. If your tool doesn’t have gears, keep the speed at low rpm (max. 500 rpm), using the trigger.

Use the impact mode when drilling in concrete, stone and full brick. Apply the rotary mode when drilling in metal, steel, wood and plastics as well as brittle materials, such as hollow brick and ceramic tiles.

Cooling can help extend the lifetime of your drill bit if applied in the right way, but you don’t need to apply it. When drilling in hard stone, we recommend letting the drill bit cool down each time you drilled a hole.
