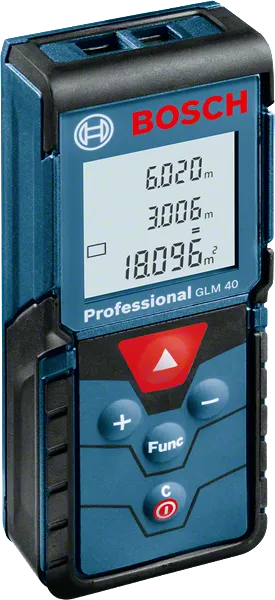

GLM 40 Professional

Laser Measure

GLM 40

All in one – all relevant measurement modes in one compact design

  • All significant modes: standard length, surface, and volume calculation as well as indirect height measurements
  • Easy to read thanks to illuminated display that showcases last three results
  • Memory function saves the last 10 measurements automatically for quick reference

Functions & key features

Iso-Norm-16331 1-Icon-positive
IP54 dust and splash water protection
Measurement accuracy ± 1.5 mm plus use-dependent deviation
Display Illumination

Your Selection

  • with 2 x battery (AAA), accessory set
Show variant
634.00 GHS Recommended retail price including VAT.

Currently not available online

Check availability on location
Find a local dealer
with 2 x battery (AAA), accessory set 0 601 072 900
634.00 GHS Recommended retail price including VAT.
Find a local dealer

GLM 40 Professional

Your Selection

with 2 x battery (AAA), accessory set

Order number: 0 601 072 900

634.00 GHS

Recommended retail price including VAT.

Find a local dealer

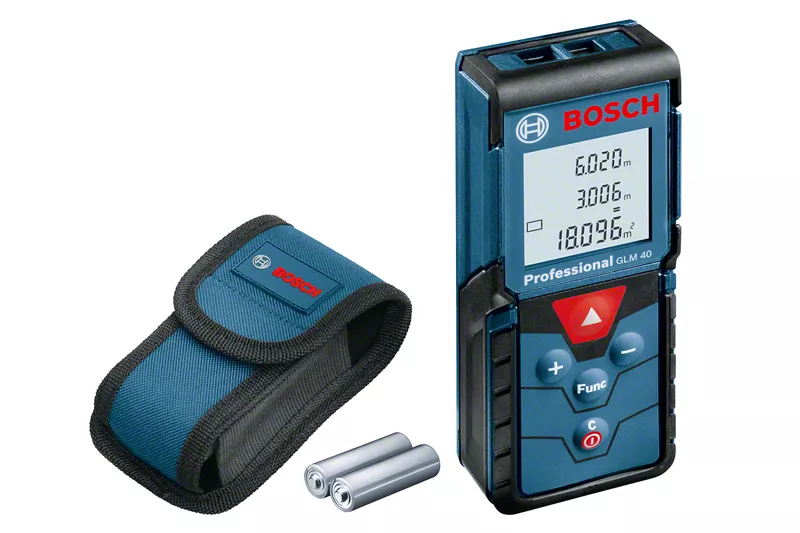

Included in this variant

  • Manufacturer’s certificate
  • Protective Bag
  • 2 x 1.5 V LR03 battery (AAA)
Your selection

Technical data

Additional data
Dust and splash protection IP 54
Laser diode 635 nm, < 1 mW
Measurement range 0.15 – 40.00 m
Weight, approx. 0.09 kg
Measurement time, typical < 0.5 s
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR03 (AAA)
Automatic deactivation 5 min
Units of measurement m/cm, ft/inch
Memory capacity (values) 10
Laser colour Red
Measuring range, up to 40 m

GLM 40 Professional: Further information

Product Highlights

Take advantage of a wide range of measurement modes in a single compact design with the Laser Measure GLM 40 Professional. This intuitive tool provides all significant measurement modes in one: standard length, surface and, volume calculation as well as indirect height measurements. It features an easy-to-read illuminated screen that displays the last three measurement results for quick reference. The laser measure also has a memory function that saves the last 10 measurements for time-efficient use.

Equipment & Application

This tool is ideal for indoor installations including electrical, tiling, carpentry, drywall fittings, construction painting, and HVAC jobs.

Additional Information

In addition to its built-in dust and splash water protection, the Laser Measure GLM 40 Professional also features a sturdy, shockproof housing that protects the tool from damage when dropped from a height of up to 1 metre.
