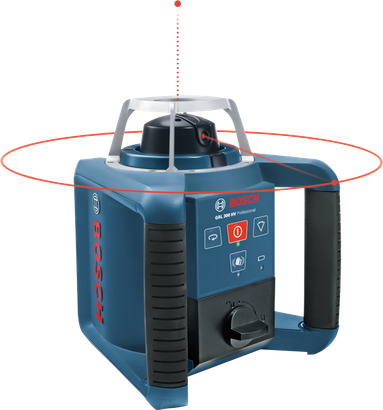

Rotation lasers

GRL 300 HV Professional

Rotation Laser

Easy handling with horizontal and vertical self-levelling

  • Easy to operate thanks to one button per function, and self-explanatory display
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations

Functions & key features

 Shock warning function gives an alarm if tool is moved
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
IP54 dust and splash water protection

Your Selection

  • in carrying case with 1 x 9 V block battery, receiver
Show variant
10,953.00 GHS
Recommended retail price including VAT.

Currently not available online

Find a local dealer

in carrying case with 1 x 9 V block battery, receiver 0 601 061 501
10,953.00 GHS
Recommended retail price including VAT.

GRL 300 HV Professional

Your Selection

GRL 300 HV
in carrying case with 1 x 9 V block battery, receiver

Order number: 0 601 061 501

10,953.00 GHS
Recommended retail price including VAT.
Find a local dealer

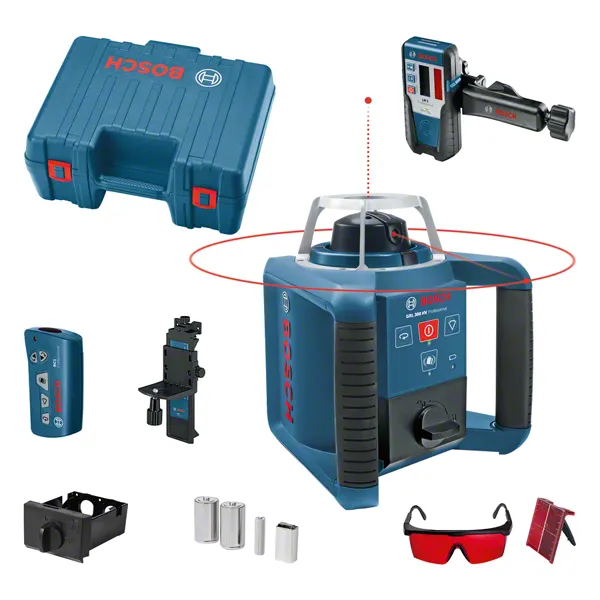

Included in this variant

  • Battery compartment (spare part number 1 608 M00 05D)
  • Universal mount WM 4 Professional
    Order number: 0 601 092 400
  • 1 x 1.5 V LR6 battery (AA)
  • Remote control RC1 Professional
    Order number: 0 601 069 900
  • 2 x 1.5 V LR20 battery (D)
  • Holder also available separately as an accessory (spare part number 1 608 M00 70F)
  • Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
  • Laser Receiver LR 1 Professional
    Order number: 0 601 015 400
  • Carrying case
  • Laser target (red) (spare part number 1 608 M00 05C)
  • 1 x 9 V block battery (6LR61)

Technical data

Additional data

Slope function no
Tripod thread 5/8"
Colour of laser line red

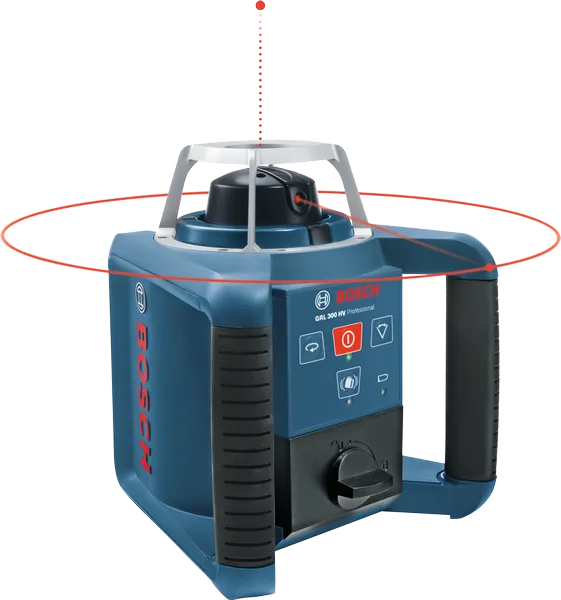

Working range with receiver up to 300 m (Diameter)
Accuracy ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Dust and splash protection IP 54
Laser diode 635 nm, < 5 mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range without receiver up to 60 m (Diameter)
Self-levelling range ± 5° (8%)
Levelling time 15 s
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.5 V LR20 (D)
Weight, approx. 1.8 kg
Working range with receiver, value 300 m

GRL 300 HV

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
