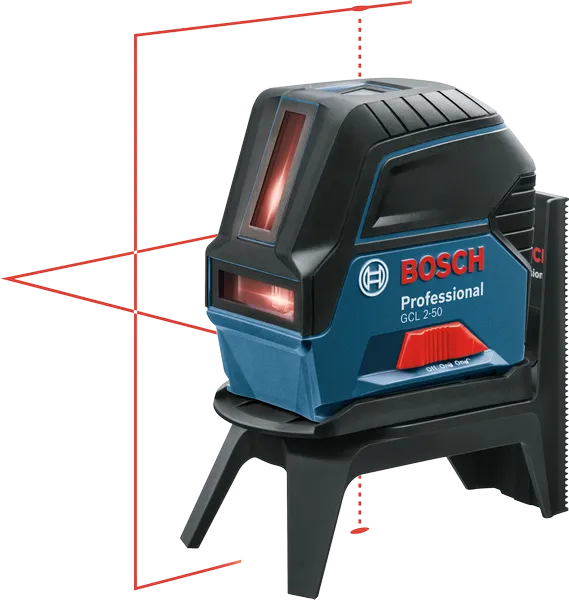

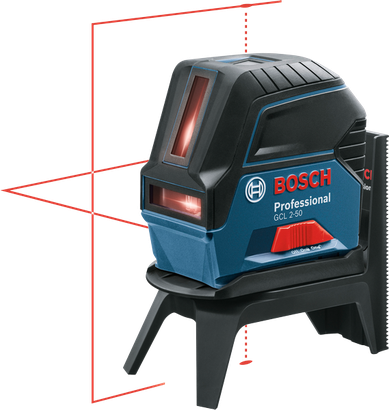

GCL 2-50 Professional

Combi Laser

Compact and versatile for all levelling applications up to 50 metres

  • Horizontal and vertical laser lines and two centred plumb points with optimal visibility
  • Receiver mode that allows you to work with the Bosch laser receiver LR 6 and LR 7 for a working range up to 50 metres

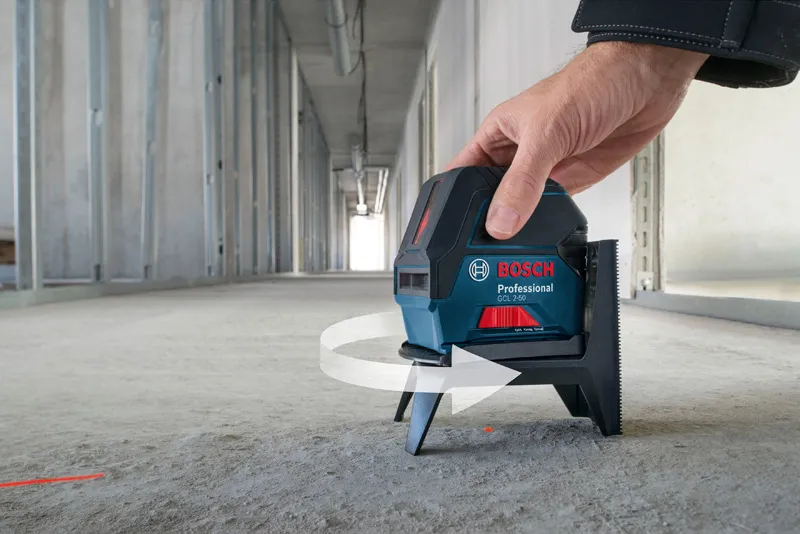

  • Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool

Functions & key features

IP54 dust and splash water protection
Slide mechanism
Laser class 2
Working range up to 50 m

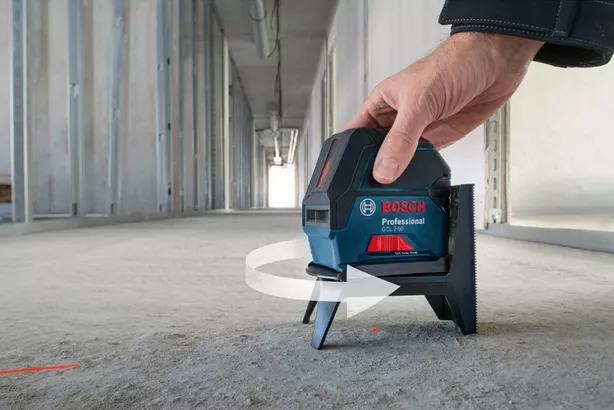

Easy line positioning around the plumb dot

Your Selection

  • in carrying case with 3 x battery (AA), clamp
Show variant
209.00 JOD
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 3 x battery (AA), clamp 0 601 066 F01
209.00 JOD
Recommended retail price excluding VAT

GCL 2-50 Professional

Your Selection

GCL 2-50
in carrying case with 3 x battery (AA), clamp

Order number: 0 601 066 F01

209.00 JOD
Recommended retail price excluding VAT
Find a local dealer

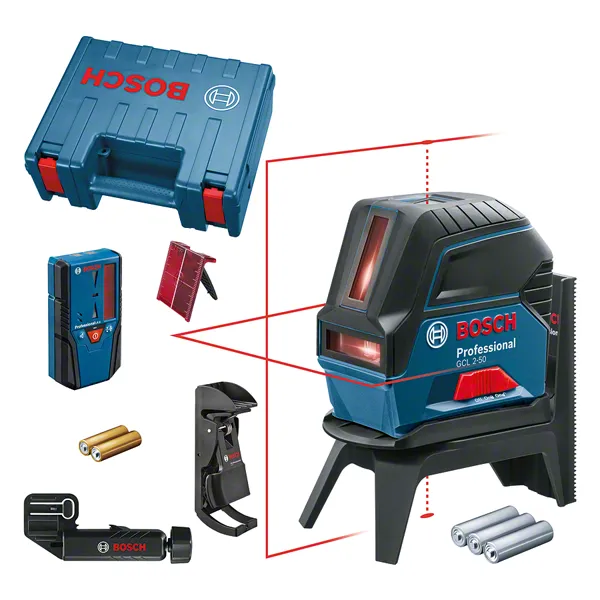

Included in this variant

  • Carrying case
    Order number: 1 608 M00 C1R
  • Laser receiver LR 6 Professional
    Order number: 0 601 069 H00

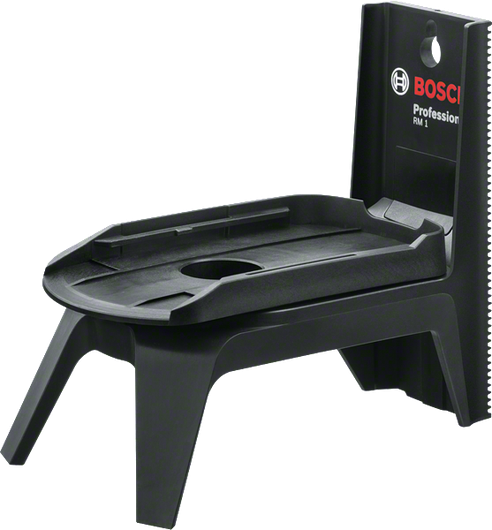

  • Rotating mount RM 1 Professional
    Order number: 0 601 092 600
  • 3 x 1.5 V LR6 battery (AA)
  • Bracket for laser receiver LR 6/7
    Order number: 1 608 M00 C1L

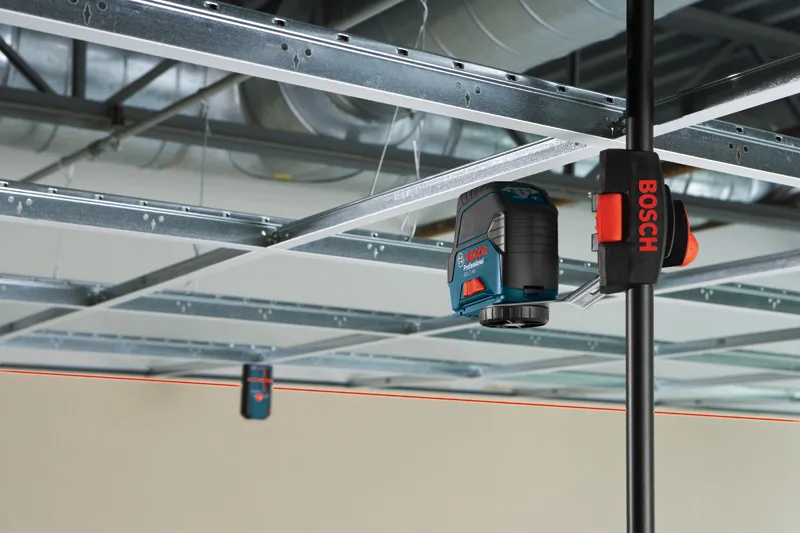

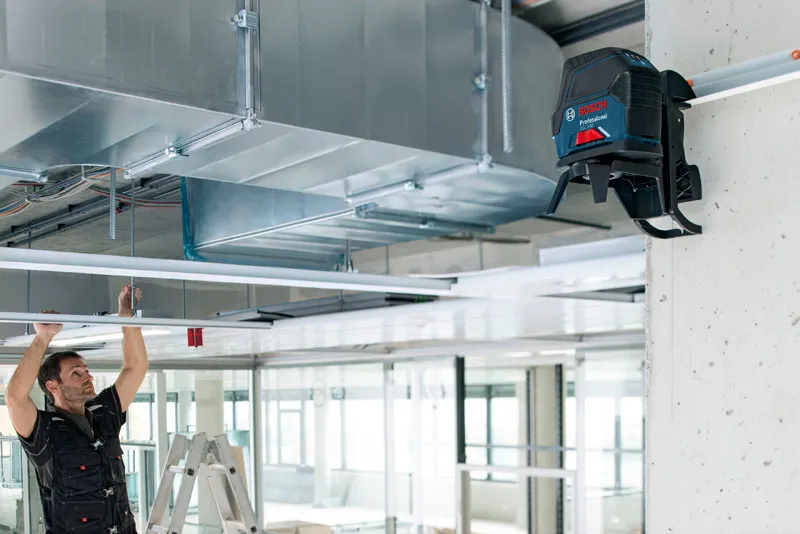

  • Ceiling clamp
  • Laser target plate

Technical data

Additional data

Working range with receiver, value 50 m
Dust and splash protection IP 54
Working range, value 15 m
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range 15 m
Working range with receiver 50 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.49 kg
Colour of laser line red
Color of plumb points red
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers LR 6 + 7

GCL 2-50

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
