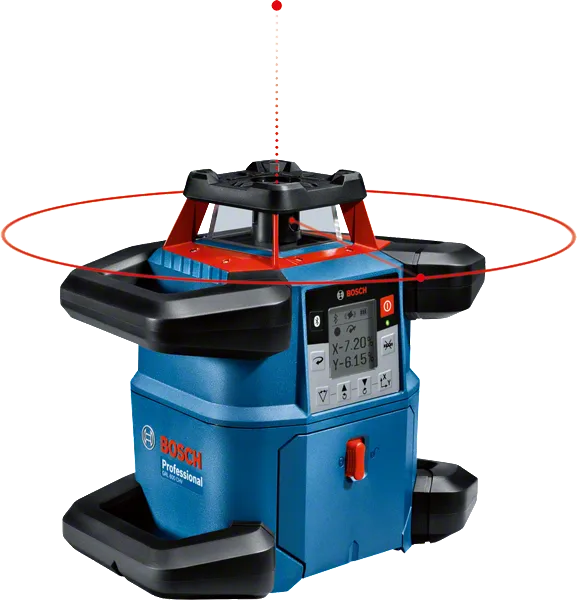

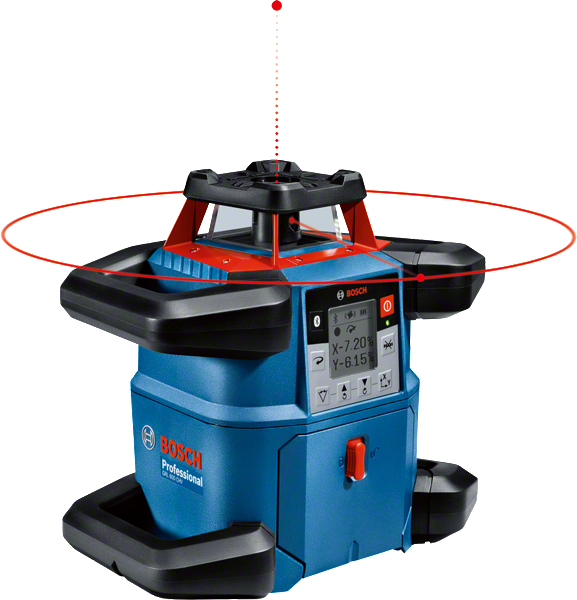

Rotation Laser GRL 600 CHV Professional

Get accurate results and save time with the new GRL 600 CHV – perfect for heavy-duty jobs

708.00 KWD Recommended retail price excluding VAT.

Technical data
Additional data
Working range with receiver* up to 600 m (Diameter)
Accuracy* ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50   °C
Storage temperature -20 – 50   °C
Laser class 2
Working range without receiver up to 60 m (Diameter)
Self-levelling range* ±8.5% (±5°)
Dust and splash protection IP 68
Rotation speed 150/300/600 min−1
Power supply 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.) 60 h, 70 h
Tripod thread 2 x 5/8"
Colour of laser line red
Projection 1 x 360° line
Compatible laser receivers LR 60
Weight with 4.0 Ah battery 4.3   kg
Weight with alkaline batteries 4.6   kg

* Highlighted Data

Advantages

Get accurate results and save time with the new GRL 600 CHV – perfect for heavy-duty jobs

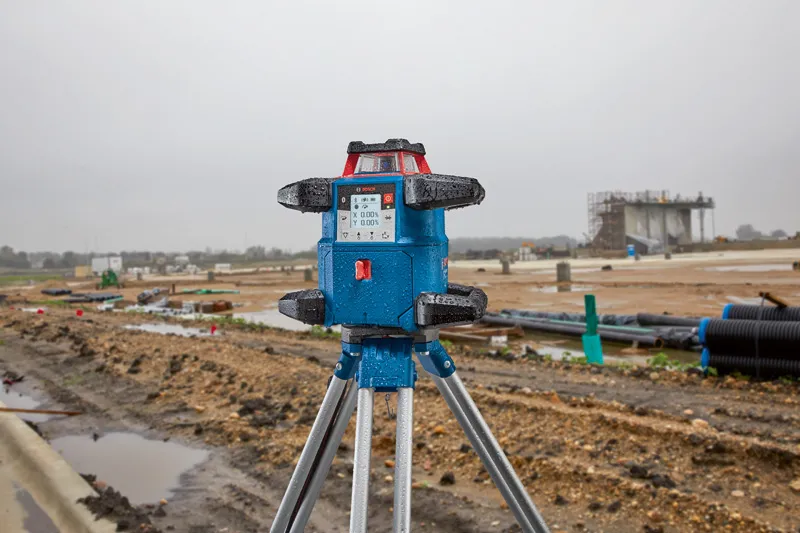

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water

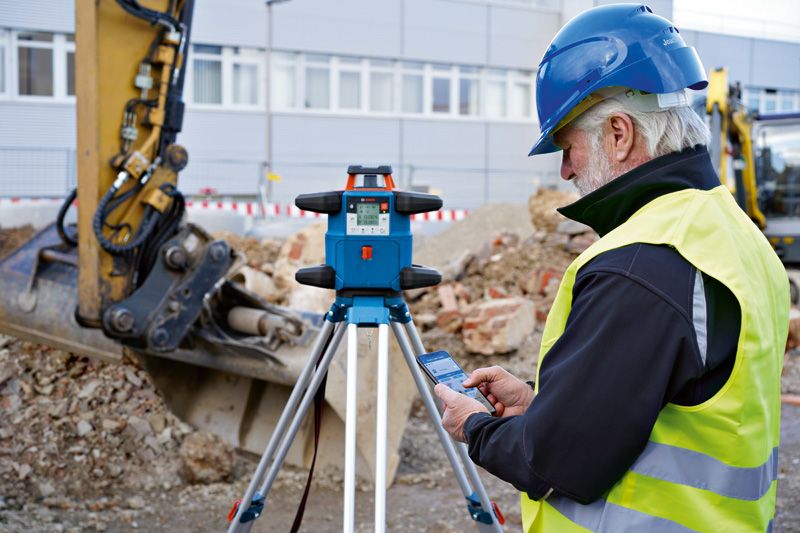

  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time

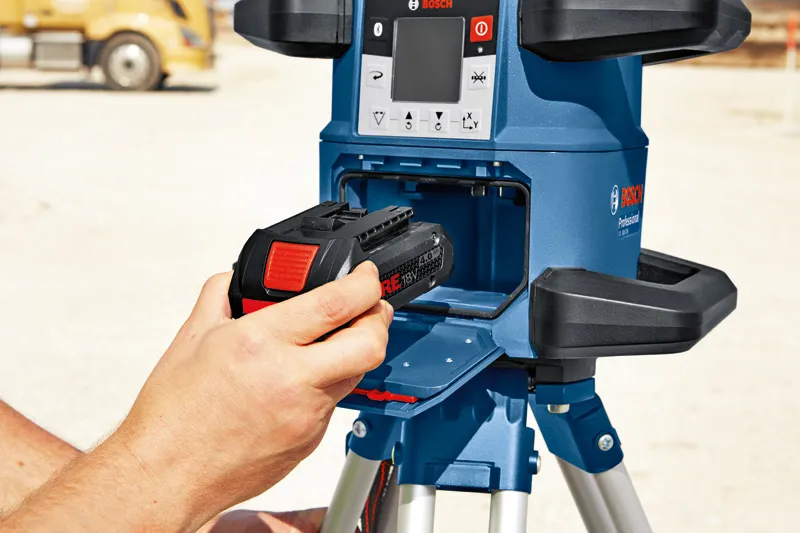

  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

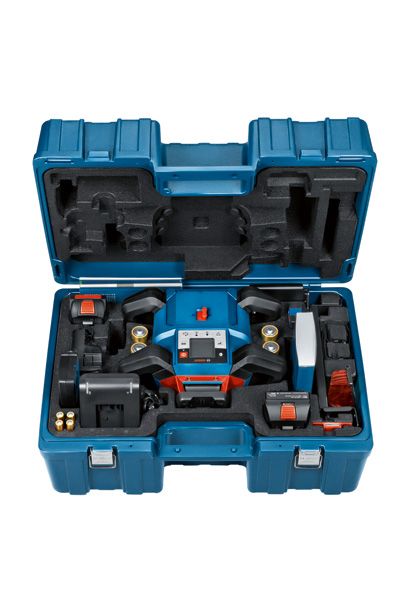

What’s Included in this Package
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser target plate
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser target plate
Order number: 0 601 061 F70
  • Laser receiver LR 60 Professional 0 601 069 P00
  • Receiver bracket RB 60 Professional
  • Remote control RC 6 Professional

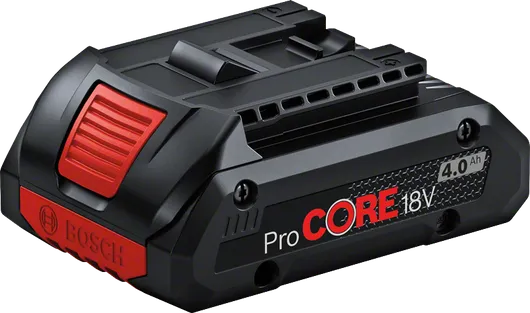

  • 1 x battery ProCORE18V 4.0Ah 1 600 A01 6GB
  • Quick charger GAL 18V-40 Professional 1 600 A01 9RJ
  • Battery adapter BA 1 Professional

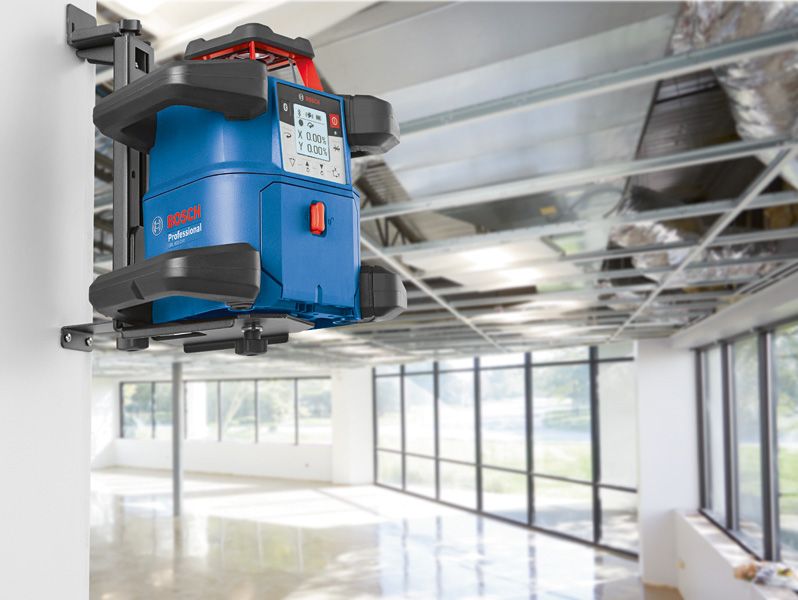

  • Wall mount WM 6 Professional
  • 4 x 1.5 V LR20 battery (D)
  • 4 x 1.5 V LR6 battery (AA)

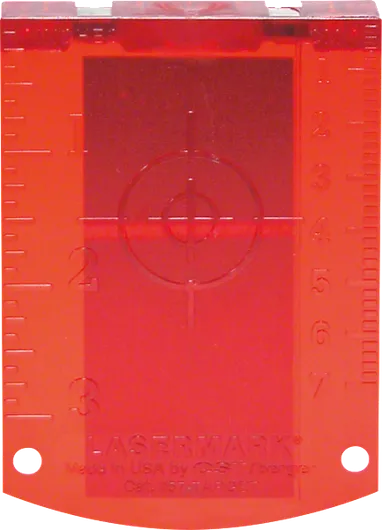

  • Laser target plate

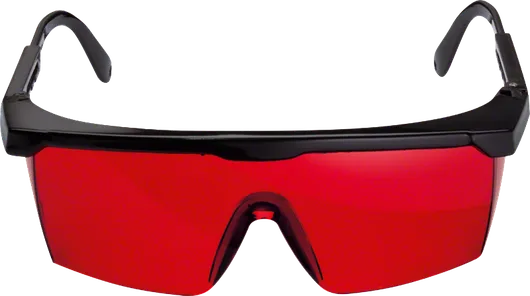

  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)
  • Carrying case
708.00 KWD Recommended retail price excluding VAT.

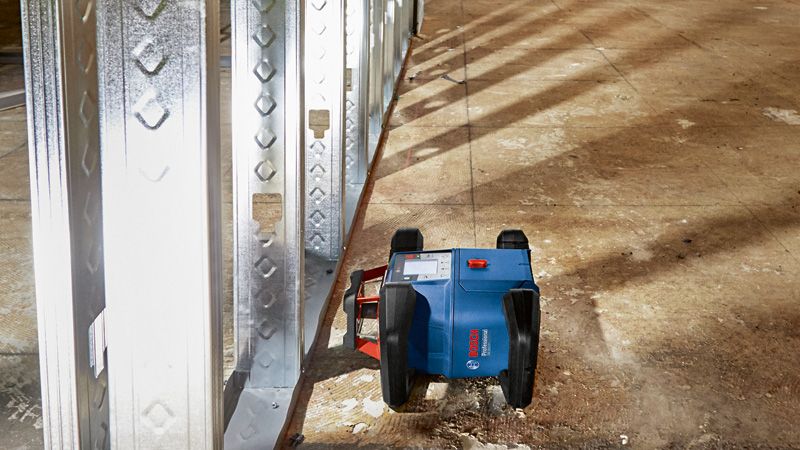

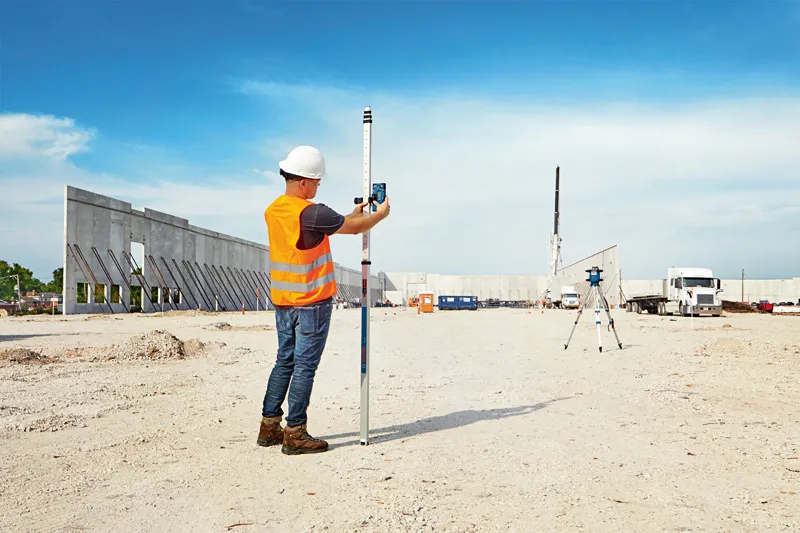

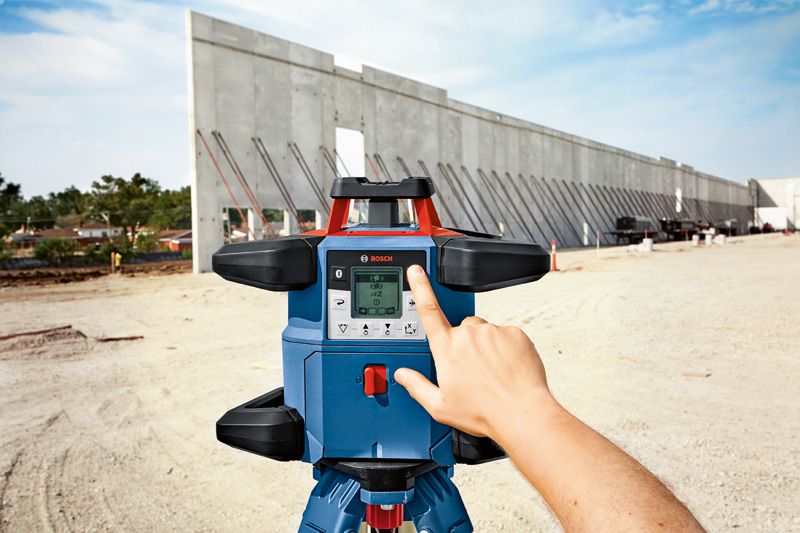

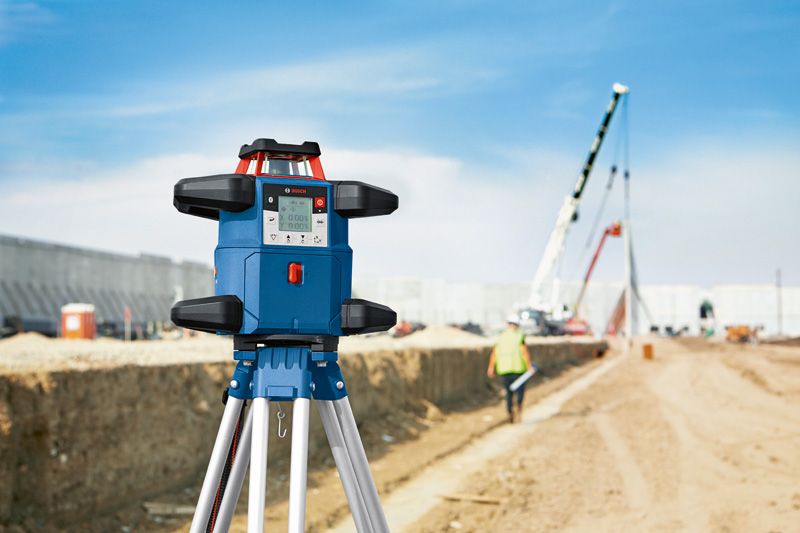

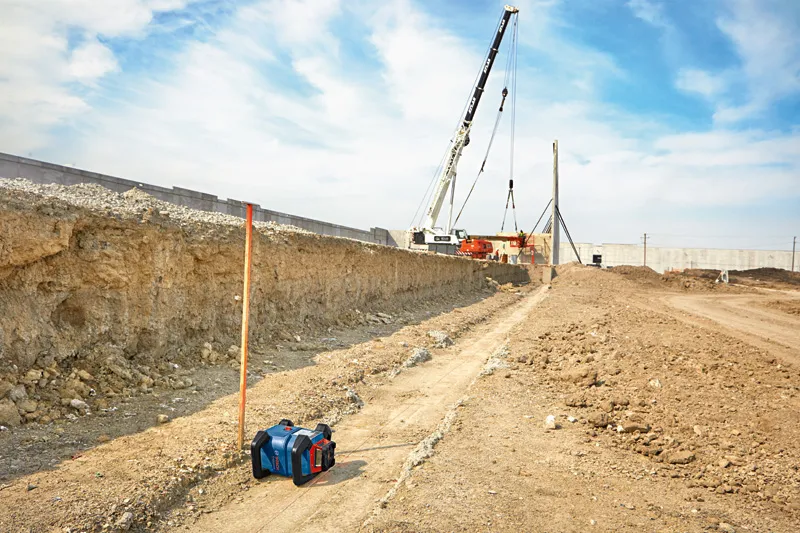

The GRL 600 CHV in action!
