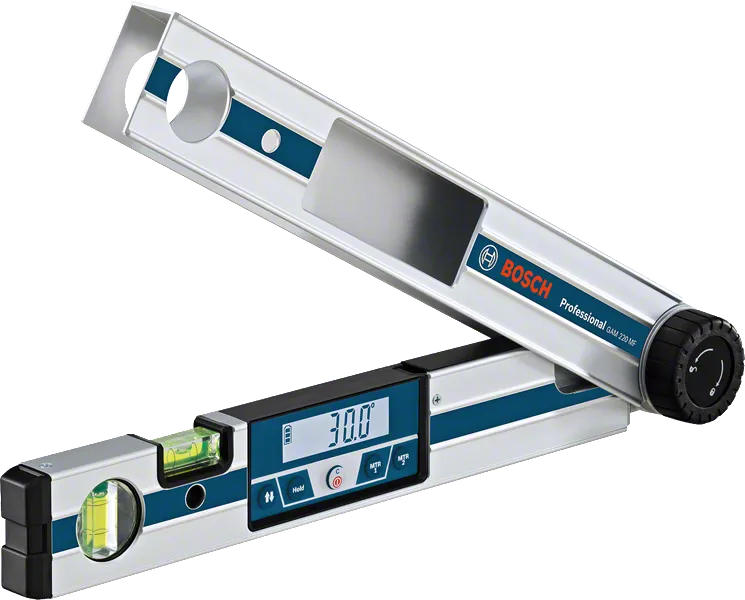

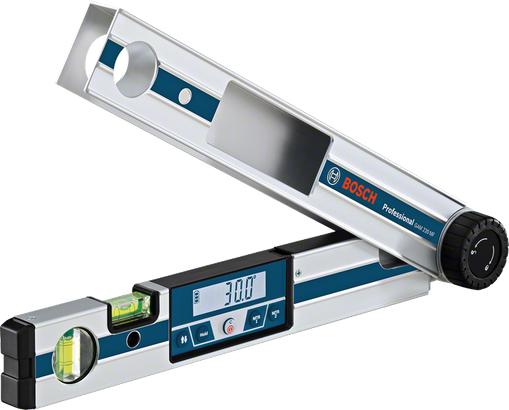

Angle Measurer GAM 220 MF Professional

Fast calculation of mitre angles

290.00 USD Recommended retail price excluding VAT.

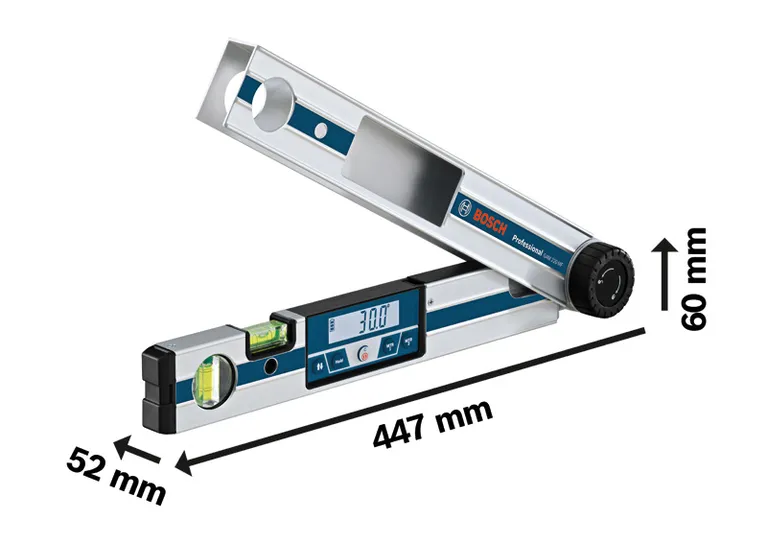

Technical data
Additional data
Measurement range* 0 – 220°
Arm length* 40   cm
Measurement accuracy, angles* ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80   h
Automatic deactivation, approx. 30   min
Weight, approx. 1.2   kg

* Highlighted Data

Advantages

Fast calculation of mitre angles

  • Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
  • Automatic calculation of single and double mitre angles without any other tools

Functions

MTR1/MTR2 Automatic calculation of mitre angles at the press of a button
Hold Hold function for intermediate storage of measured values
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Flip Display Rotating readout on display
IP protection 54 Dust and splash protection IP54
Display lighting Illuminated display
Measuring range of angles 0°–220° Angle measuring range 0°-220°
Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 076 600
  • Leg extension
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
290.00 USD Recommended retail price excluding VAT.

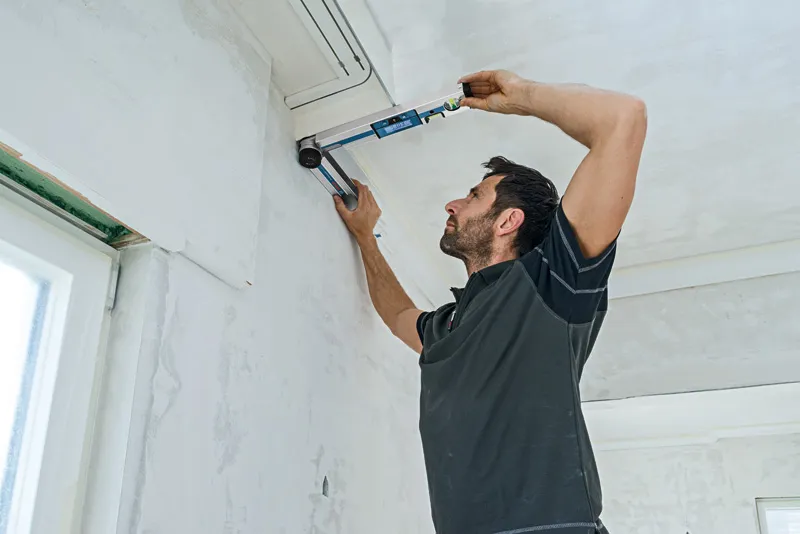

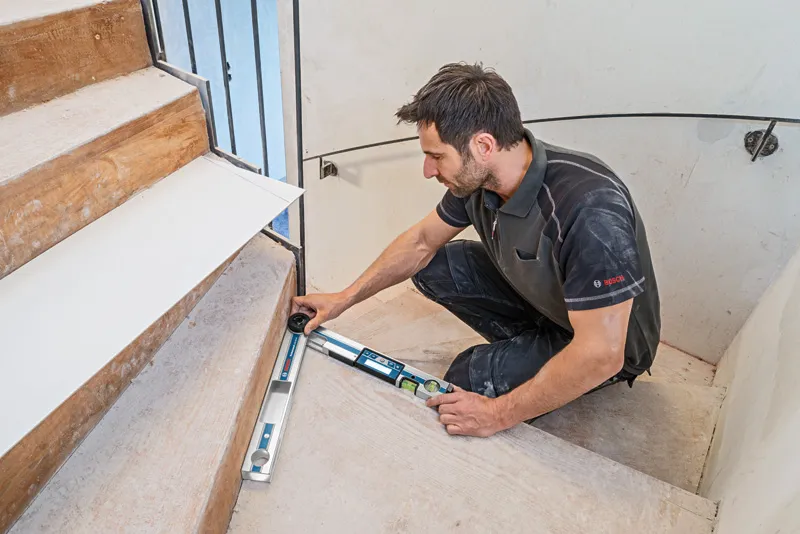

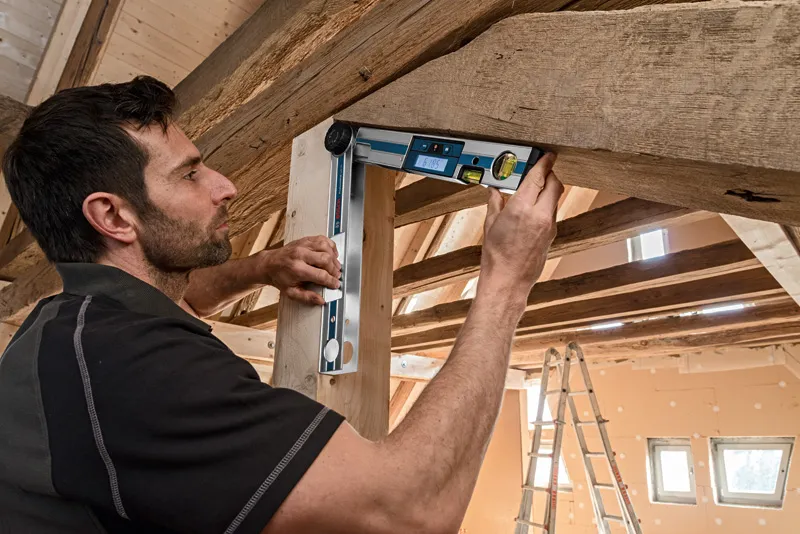

The GAM 220 MF in action!
