Technical data
| Additional data | |
|---|---|
| Working range* | 20 m |
| Working range with receiver* | 50 m |
| Accuracy* | ± 0.3 mm/m |
| Laser diode | 635 – 650 nm |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max. | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread | 1/4" |
| Weight, approx. | 0.6 kg |
| Colour of laser line | red |
| Projection | 2 lines / 2 points |
| Plumb point accuracy | ± 0.7 mm/m |
| Compatible laser receivers | LR 6 + 7 |
* Highlighted Data
Advantages
Smart functions for maximum productivity
- Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
- Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
- Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3
Functions

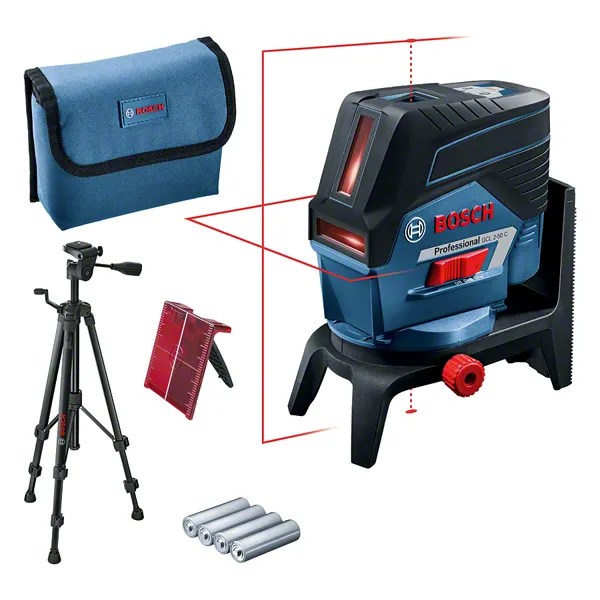

What’s Included in this Package
with 4 x battery (AA), adapter
Order number:
0 601 066 G02
- AA1 alkaline battery adapter 1 608 M00 C1B
- Building tripod BT 150 Professional 0 601 096 B00
- Laser target plate
- Protective Bag
- Rotating mount RM 2 Professional 0 601 092 700
- 4 x 1.5 V LR6 battery (AA)
509.00 USD
Recommended retail price excluding VAT.
