Technical data
| Additional data | |
|---|---|
| Mitre setting* | 52 ° L / 60 ° R |
| Saw blade diameter* | 305 mm |
| Bevel setting* | 47 ° L / 47 ° R |
| Rated input power | 1,800 W |
| Cutting capacity, 0° | 85 x 370 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutt. cap. 0° w/ spacer (max. horizontal), height | 70 mm |
| Cutt. cap. 0° w/ spacer (max. horizontal), width | 400 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 70 x 400 mm |
| Cutting capacity, 45° mitre | 85 x 250 mm |
| Cutting capacity, 45° incline | 60 x 360 mm |

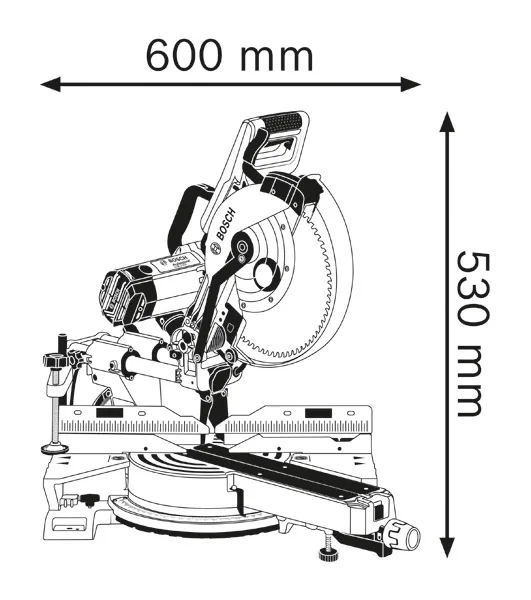

| Tool dimensions (width x length x height) | 860 x600 x530 mm |
| No-load speed | 3,100 – 4,000 rpm |
| Saw blade bore diameter | 30 mm |
| Weight | 28.6 kg |
| Total vibration values (Sawing wood) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.
Advantages
High cutting capacity and variable speed for a wide variety of applications
- Vertical cutting capacity of 120 mm
- Variable speed for adapting the cutting speed to the material
- SDS saw blade changes
Functions
What’s Included in this Package

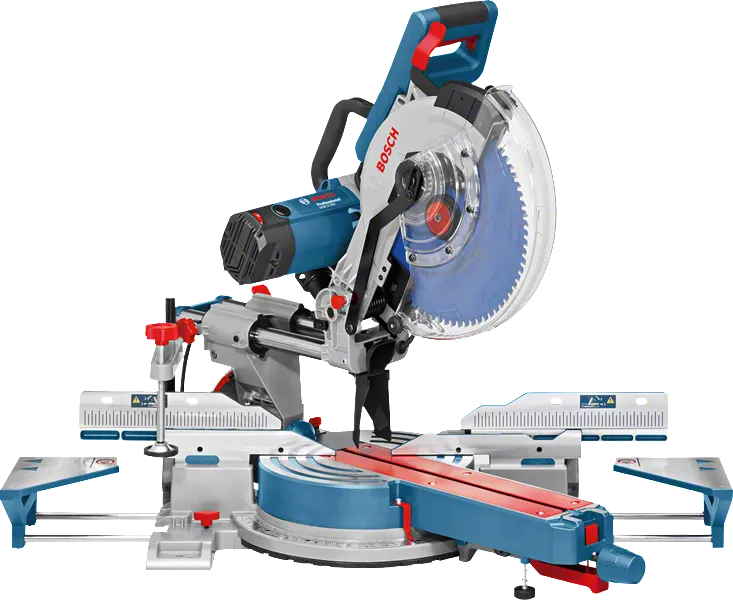

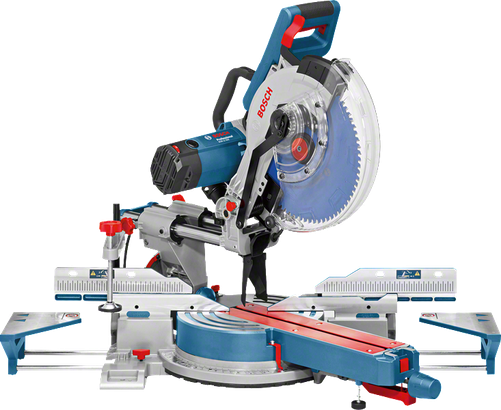

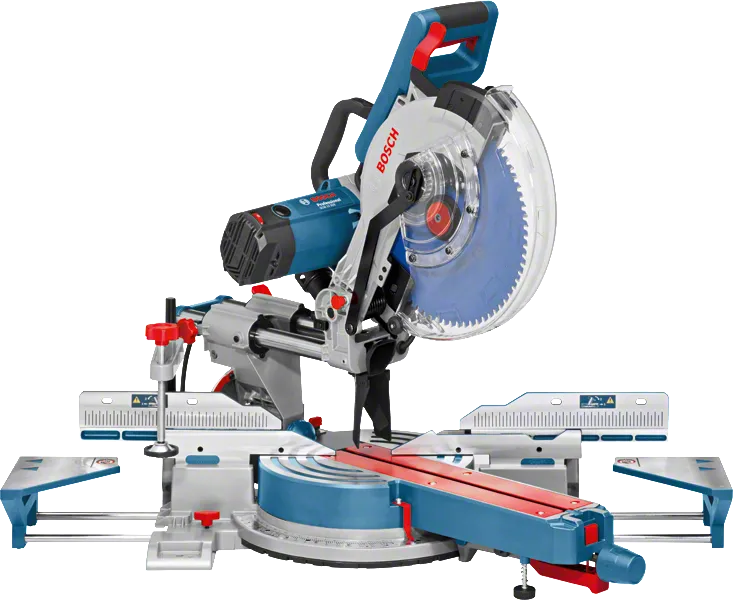

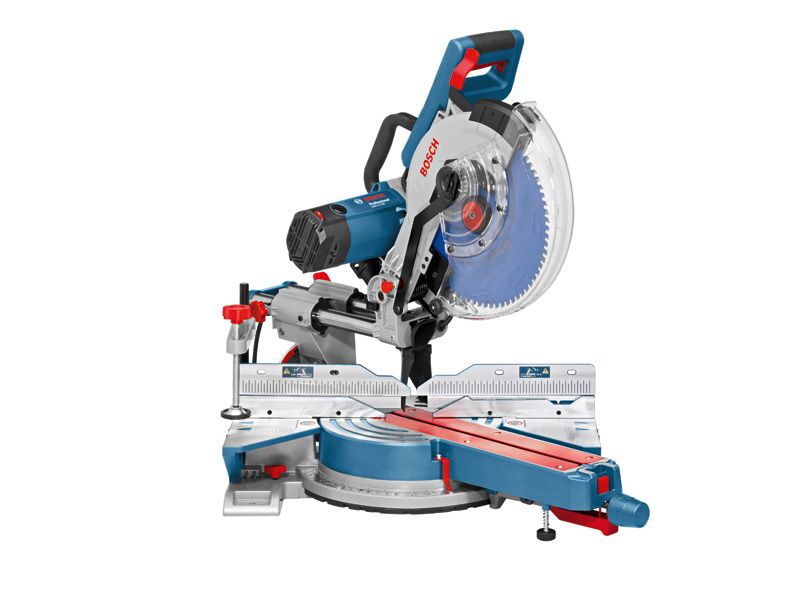

GCM 12 SDE Professional
Order number:
0 601 B23 100
1,209.00 USD
Recommended retail price excluding VAT.
