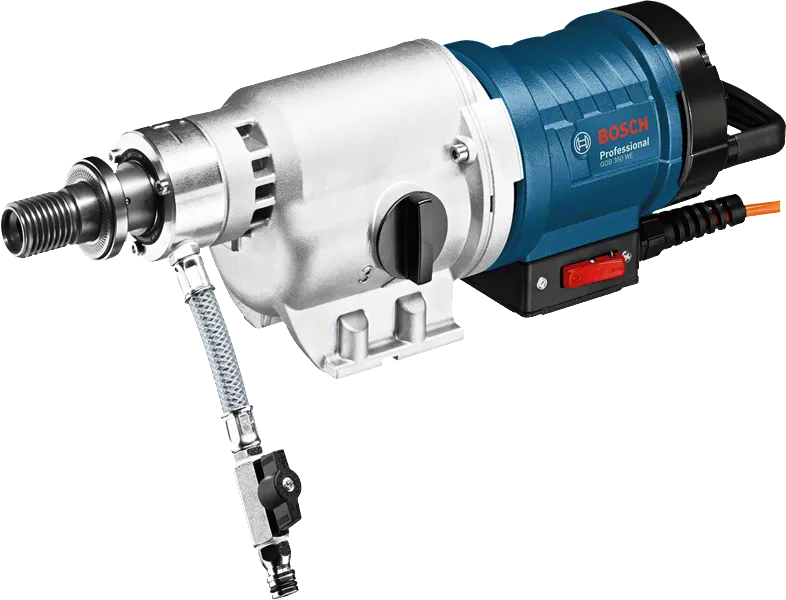

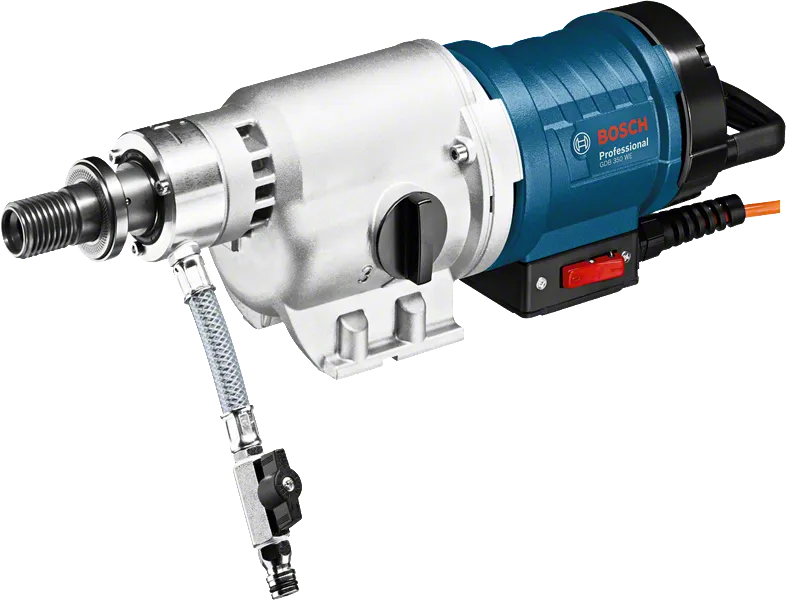

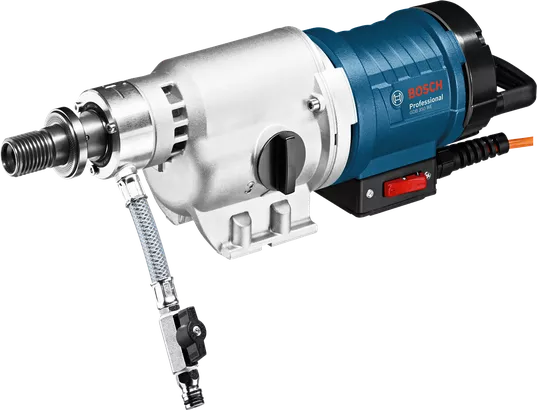

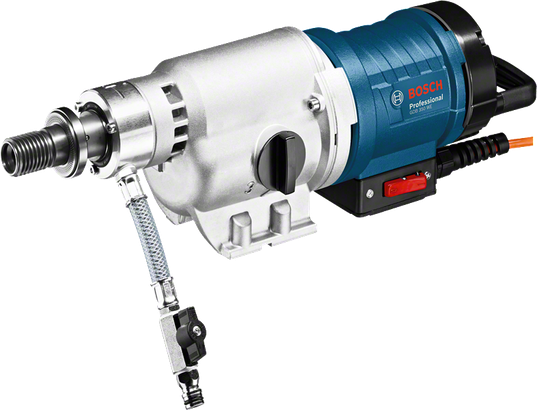

Diamond Drill GDB 350 WE Professional

Power through concrete – drill holes of up to 350 mm in diameter

Technical data
Additional data
Rated input power* 3,200 W
Tool holder* 1 1/4" UNC
Weight* 11.9 kg
Drilling range 350 mm

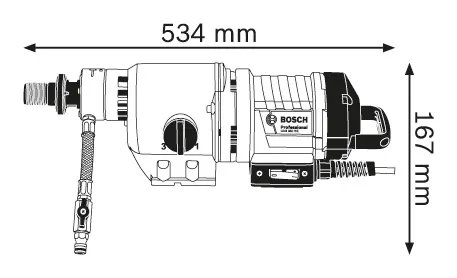

Tool dimensions (width) 142 mm
Tool dimensions (length) 534 mm
Tool dimensions (height) 167 mm
Suitability Wet drilling in concrete
Drilling range, bench-mounted
Concrete, possible range 350 mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.

Advantages

Power through concrete – drill holes of up to 350 mm in diameter

  • 3200 watt motor and 3-speed gearbox for core drilling up to 350 mm in reinforced concrete
  • Long lifetime due to robust design and gearbox with oil-bath lubrication

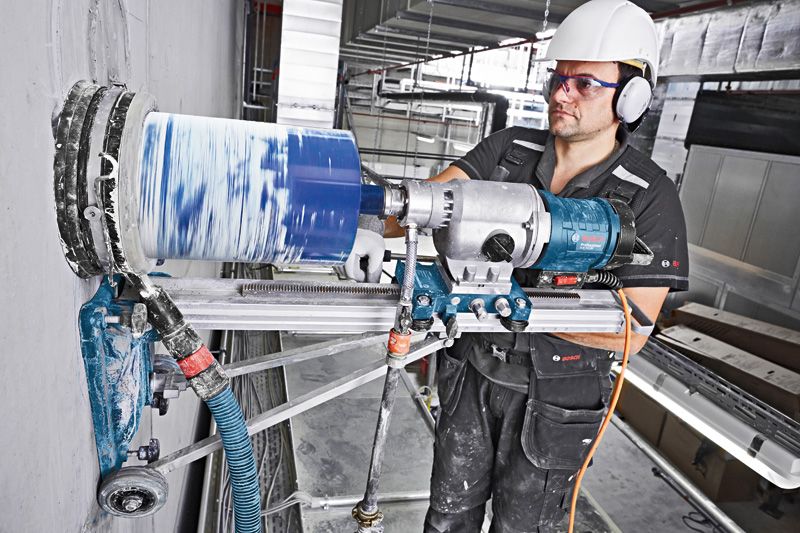

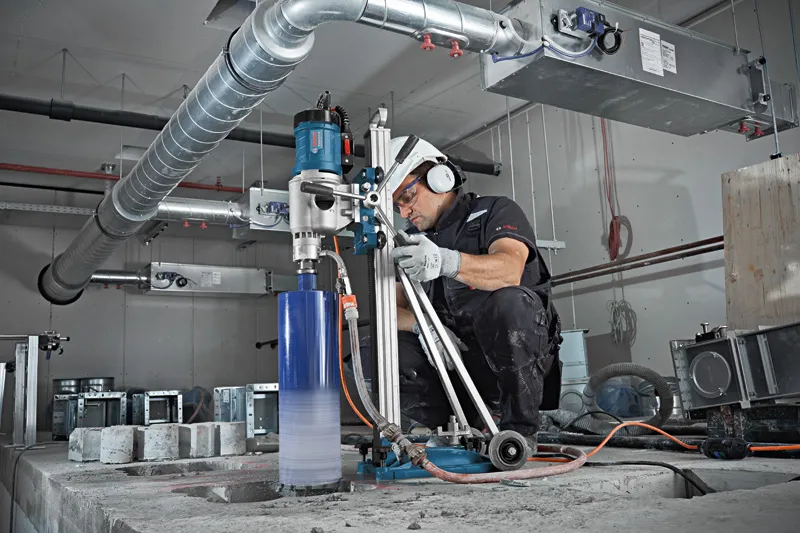

  • Stand-mounted drilling in a system with GCR 350 drill stand (part number 0 601 190 200)
What’s Included in this Package
GDB 350 WE Professional
GDB 350 WE Professional
Order number: 0 601 189 900

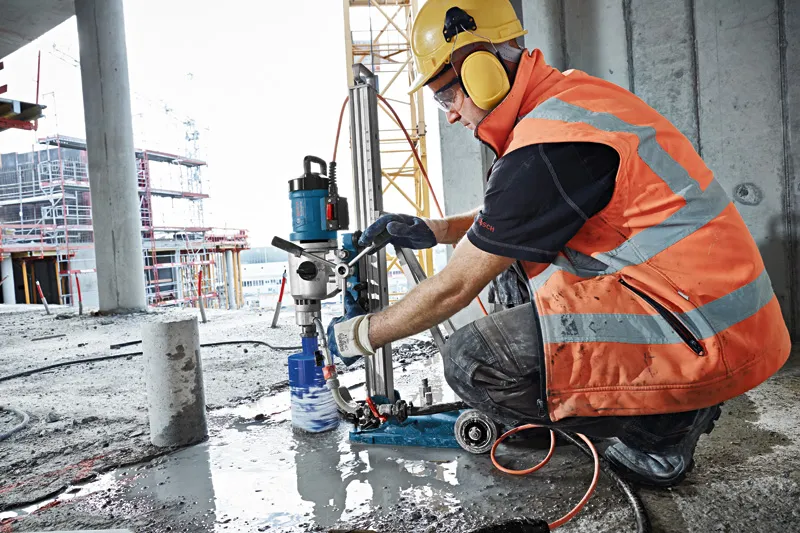

The GDB 350 WE in action!
