Digital Inclinometer GIM 60 Professional

Precise digital inclinometer

234.00 USD Recommended retail price excluding VAT.

Technical data
Additional data

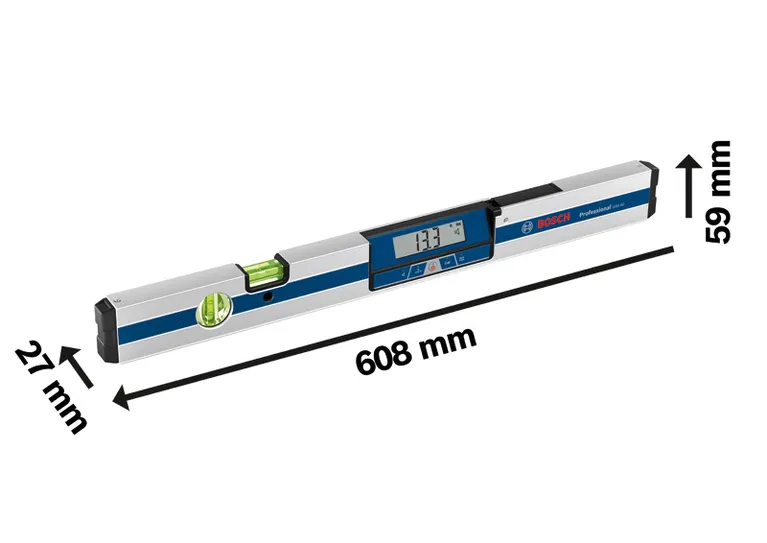

Length* 60   cm
Measurement range* 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90°* ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.2°
Measurement accuracy, vials ± 0.057° = ± 1 mm/m
Weight approx. 0.77   kg
Units of measurement °, %, mm/m
Tripod thread 1/4"

* Highlighted Data

Advantages

Precise digital inclinometer

  • Measures precise tilts in degrees, percent or millimetres/metres
  • Direction arrows and audible signals at 0° and 90° for easy alignment
  • Measured values automatically turn on the display when working overhead

Functions

Hold and Copy Hold/Copy function
Flip Display Rotating readout on display
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Measuring range of angles 0°-360° Angle measuring range 0°-360°
Measuring accuracy of incline Electronics measuring accuracy 0°/90°: ± 0.05°; Electronics measuring accuracy at 1 – 89°: ± 0.2°
What’s Included in this Package
with 4 x battery (AA), Protective Bag
with 4 x battery (AA), Protective Bag
Order number: 0 601 076 700
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
234.00 USD Recommended retail price excluding VAT.
The GIM 60 in action!
