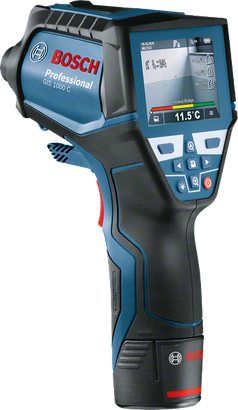

GIS 1000 C Professional

Thermo Detector

GIS 1000 C
GIS 1000 C

The all-round thermo detector for precise and versatile measurements

  • Integrated camera instantly shows and documents measured values in photos
  • Practical data transfer and storage via Bosch ThermalOn app or USB
  • Precise results due to five different modes covering all applications

Functions & key features

IR measurement range -40 °C to +1000 °C
Temperature probe interface type K
Measuring accuracy of IR ± 1.0 °C plus use-dependent deviation
Optics Ratio of meas. distance: Meas. spot
Measuring accuracy of relative humidity ± 2 % plus use-dependent deviation

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card
Change variant
879.00 USD
Recommended retail price excluding VAT
Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card 0 601 083 301
879.00 USD
Recommended retail price excluding VAT

Select a variant

Your Selection

GIS 1000 C

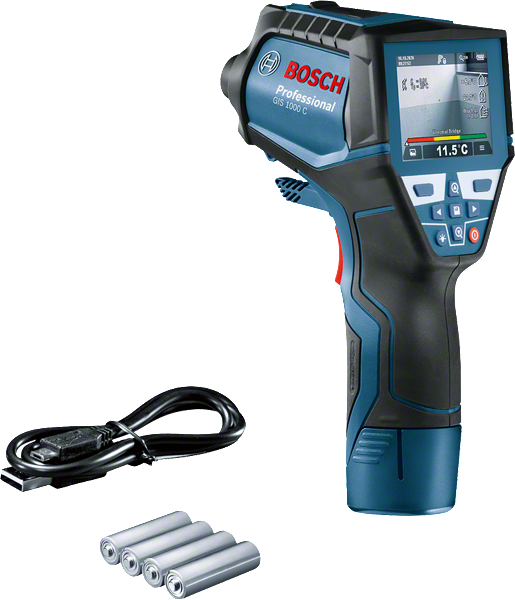

with 4 x battery (AA), adapter

Order number: 0 601 083 300

650.00 USD
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Micro USB cable
    Order number: 2 609 120 670
  • L-BOXX inlay for tool
  • Quick-start card

Additional in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)

Your Selection

GIS 1000 C

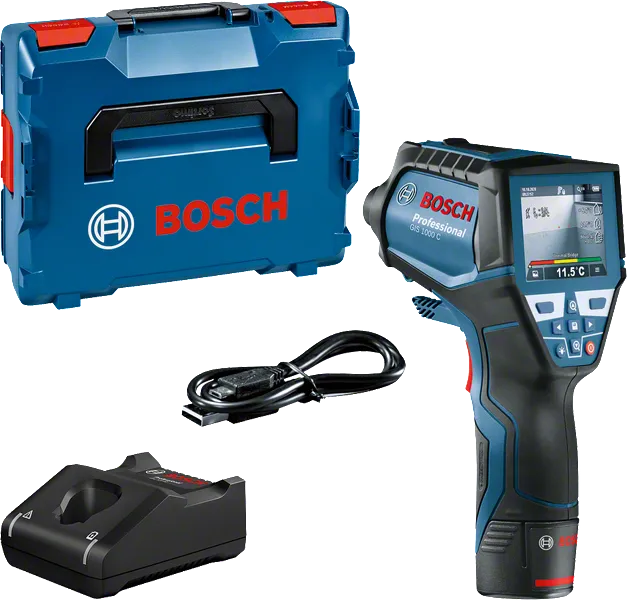

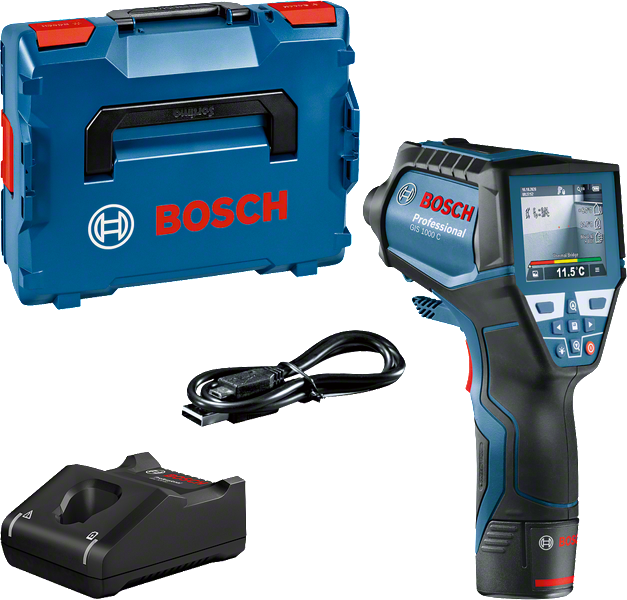

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card

Order number: 0 601 083 301

879.00 USD
Recommended retail price excluding VAT
Find a local dealer

Included in all variants

  • Micro USB cable
    Order number: 2 609 120 670
  • L-BOXX inlay for tool
  • Quick-start card

Additional in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • L-BOXX inlay accessories
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X

Technical data

Additional data

Measurement range -40 °C … +1000 °C
Measuring accuracy of IR ± 1.0 °Cᵇ
Battery voltage 12.0 V
Optics (Ratio of meas. distance : meas. spot) 50:1
Resolution 0.1 °C
Measuring accuracy of relative humidity ± 2%ᶜ
Laser diode Laser class 2, 635 nm
Frame buffer (number of images) >200
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Bluetooth™ Smart
Shock protection 1 m
Weight 0.56 kg
Display type TFT LCD
Size of display 2,8"
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Working range 0.1 – 5 m
Measuring application Spot temperature measurement, Thermal bridge, Dew point
GIS 1000 C

GIS 1000 C Professional: Further information

Product Highlights

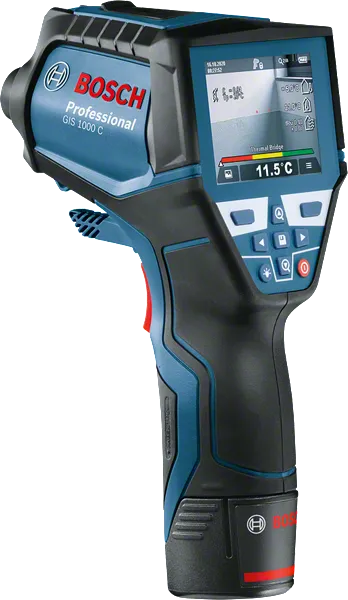

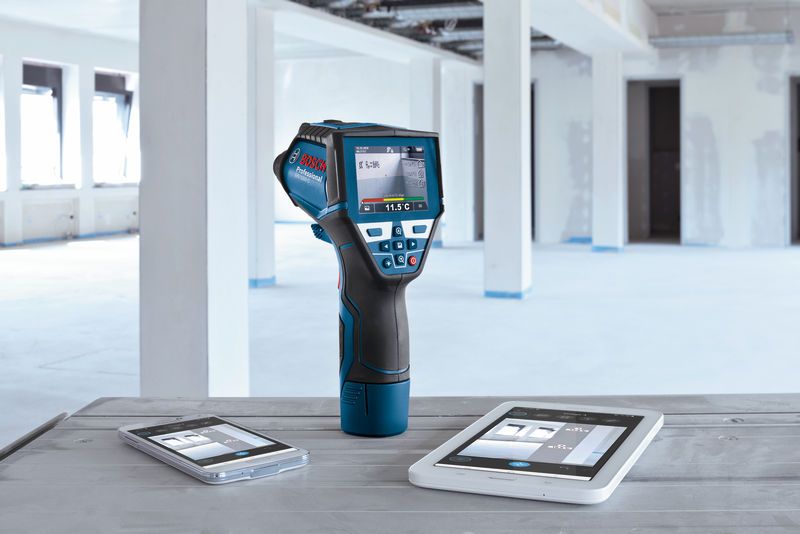

The thermo detector GIS 1000 C Professional is the swift solution for precise reading and documentation of temperatures and relative humidity. While recording measurements, the device’s integrated camera conveniently captures images for instant display with the relevant values. Detailed data is quickly documented and can be shared to remote devices thanks to the Bosch ThermalOn app via Bluetooth® connection. The thermo detector delivers a temperature recording, offering professionals five different modes for complex surface and contact temperatures (with integrated K-type functionality), dew point and thermal bridge calculations, and a user mode for custom values.

Equipment & Application

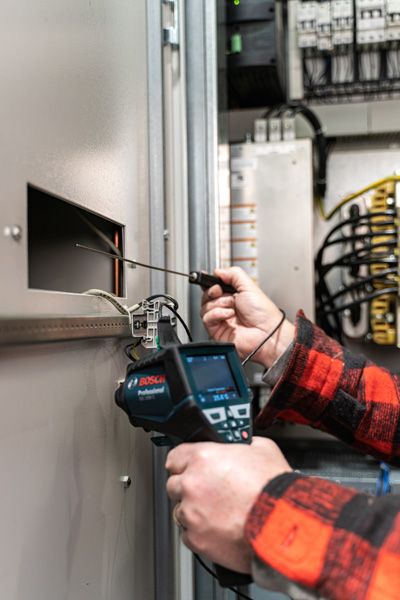

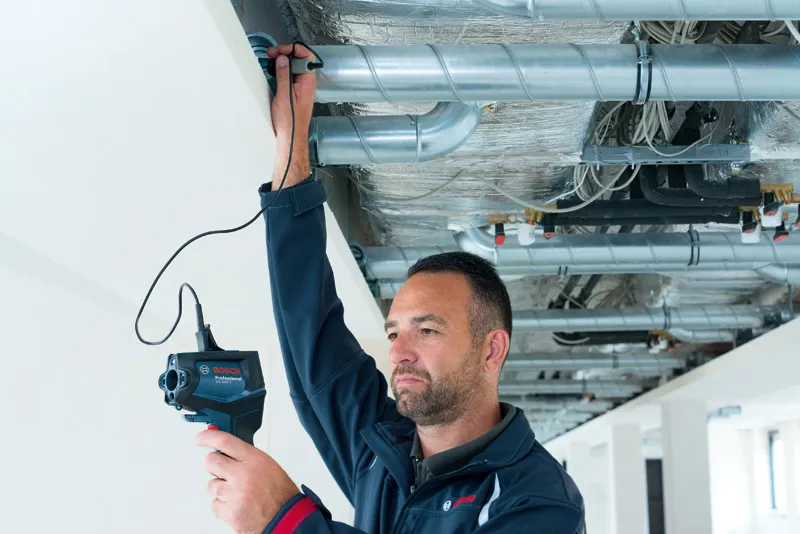

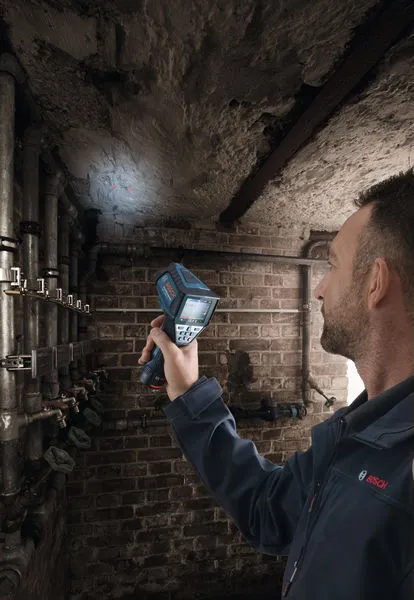

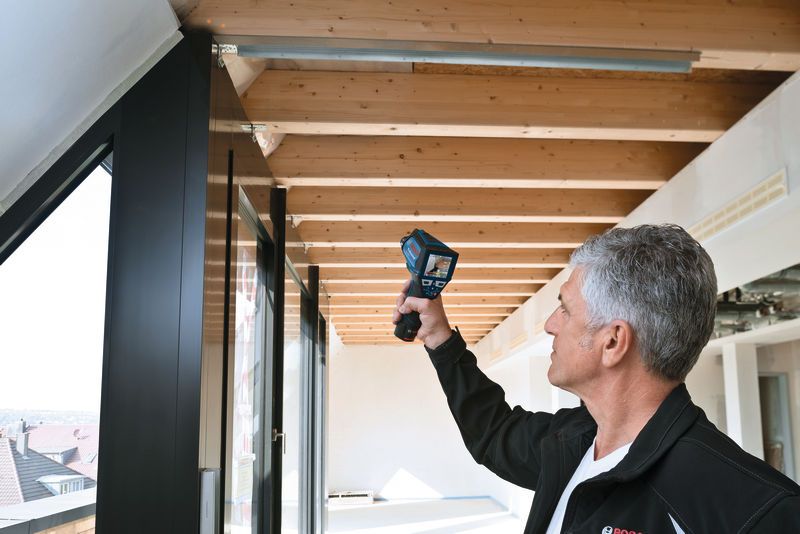

Professionals can use the thermo detector in a range of applications, from determining mould risk to checking thermal bridges, as well as for accurate contact measurement of reflective surfaces, liquids, and direct air temperature.

Additional Information

Along with measuring surface and contact temperatures, the GIS 1000 C Professional´s ambient sensor also quickly monitors surrounding conditions for precise measurement of room temperature and relative humidity, enabling an even wider range of applications. A straightforward user interface allows intuitive operation and delivers high-accuracy results on a wide measurement range. The GIS 1000 C Professional is not suitable for medical purposes.
