Line Laser GLL 3-80 Professional

3 x 360° for visibility on a new level

from  647.00 USD Recommended retail price excluding VAT

Technical data
Additional data
Working range with receiver, value 120   m
Accuracy ± 0.3 mm/m*/** (*for the four horizontal intersection points; **plus use-dependent deviation)
Projection 3 x 360° line
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range up to 30   m
Working range with receiver up to 120 m
Working range without receiver up to 30 m
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.82   kg
Colour of laser line red
Compatible laser receivers LR 6 + 7
Working range, value 30   m

Advantages

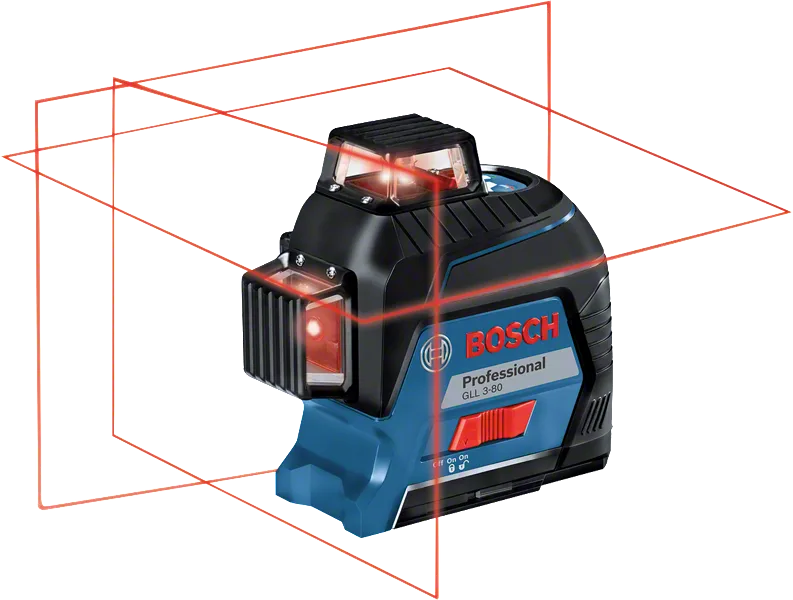

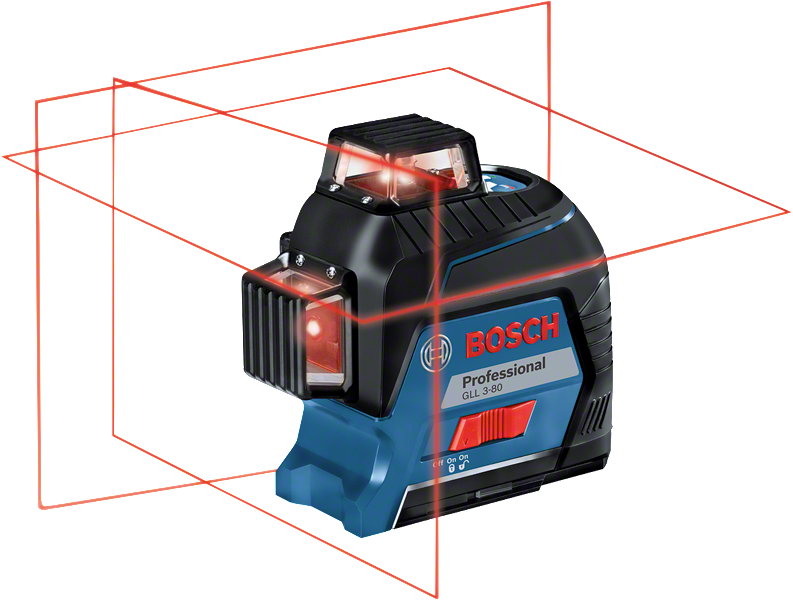

3 x 360° for visibility on a new level

  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
  • Intuitive user interface offers easy operation

Functions

3 x 360° Laser lines
Laser class 2
Working with receiver for higher working range
Power supply 4 x AA battery
IP54 dust and splash water protection
Icon
Icon
Icon
IP54 dust and splash water protection
Power supply 4 x AA battery
Working with receiver for higher working range
Tripod mount for 5/8" and 1/4" tripod thread

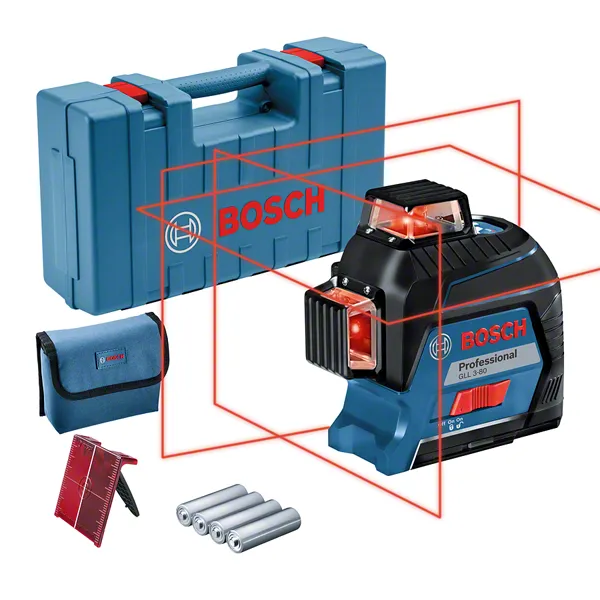

What’s Included in this Package
in carrying case with 4 x battery (AA), laser target plate
in carrying case with 4 x battery (AA), laser target plate
Order number: 0 601 063 S00
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Pouch
  • Carrying case
647.00 USD Recommended retail price excluding VAT
Product variations (2)

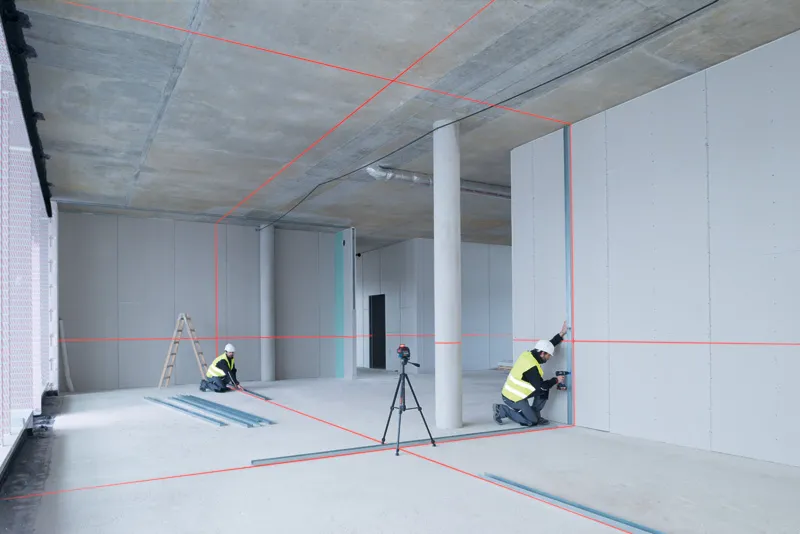

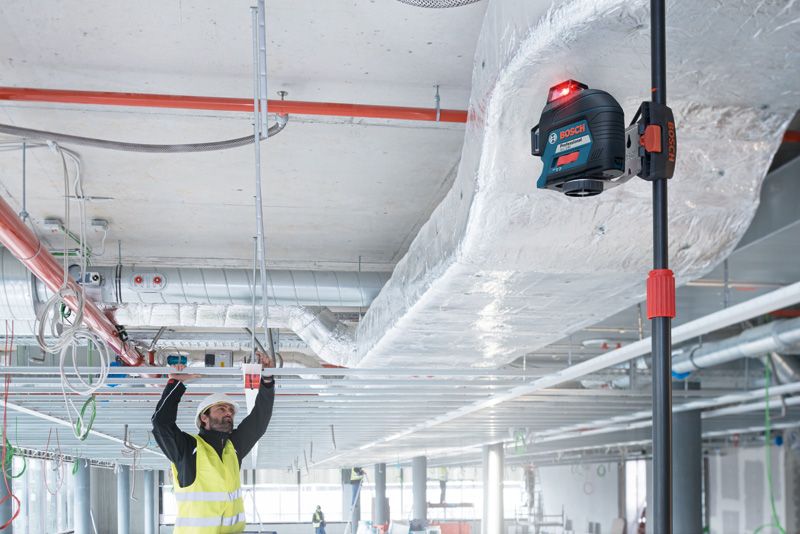

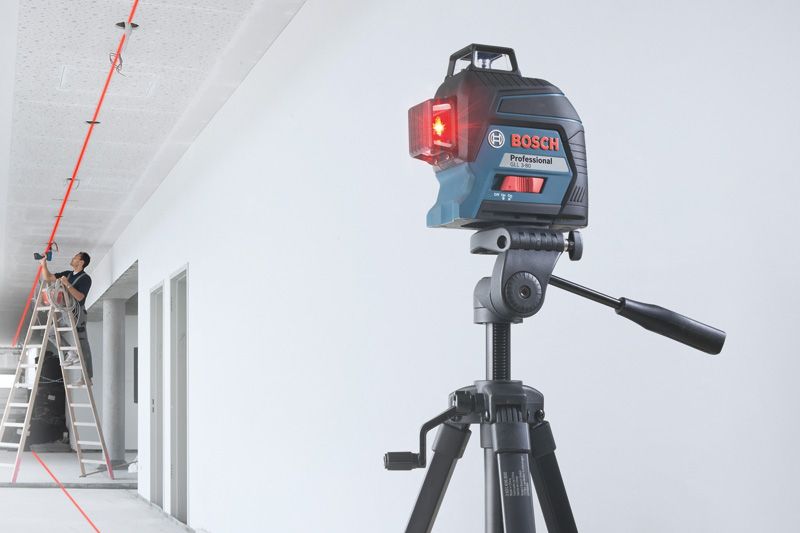

The GLL 3-80 in action!
