Line lasers

GLL 3-80 G Professional

Line Laser

GLL 3-80 G

3 x 360° bold green lines for optimal visibility

  • Bright green lines provide up to four times better visibility than red lines
  • Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
  • Intuitive user interface makes it easy to operate

Functions & key features

3 x 360° Laser lines
Laser class 2
Working with receiver for higher working range
Power supply 4 x AA battery
Tripod mount for 5/8" and 1/4" tripod thread

Your Selection

  • in carrying case with 4 x battery (AA), laser target plate
Show variant
666.00 USD
Recommended retail price excluding VAT
Find a local dealer

in carrying case with 4 x battery (AA), laser target plate 0 601 063 Y00
666.00 USD
Recommended retail price excluding VAT

GLL 3-80 G Professional

Your Selection

GLL 3-80 G
in carrying case with 4 x battery (AA), laser target plate

Order number: 0 601 063 Y00

666.00 USD
Recommended retail price excluding VAT
Find a local dealer

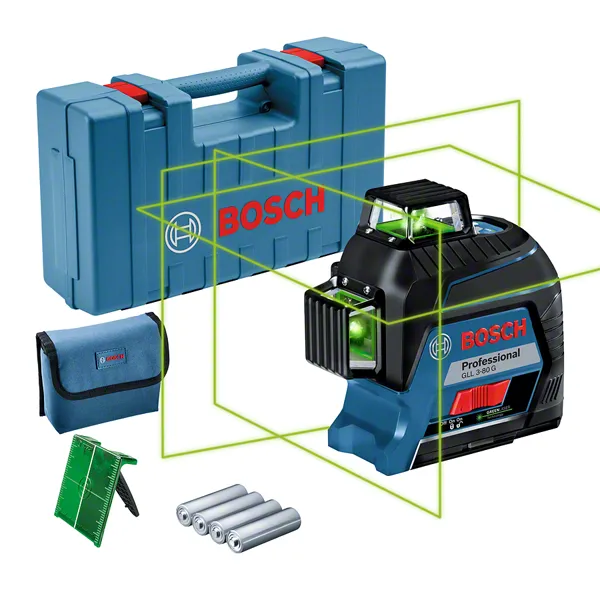

Included in this variant

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate
  • Carrying case

Technical data

Additional data

Working range with receiver, value 120 m
Working range up to 30 m
Working range with receiver up to 120 m
Accuracy ± 0.3 mm/mᵃ/**
Projection 3 x 360° line
Working range, value 30 m
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Self-levelling range ± 4°
Levelling time 4 s
Power supply 4 x 1.5 V LR6 (AA)
Tripod thread 1/4",5/8"
Weight, approx. 0.82 kg
Colour of laser line green
GLL 3-80 G

GLL 3-80 G Professional: Further information

Product Highlights

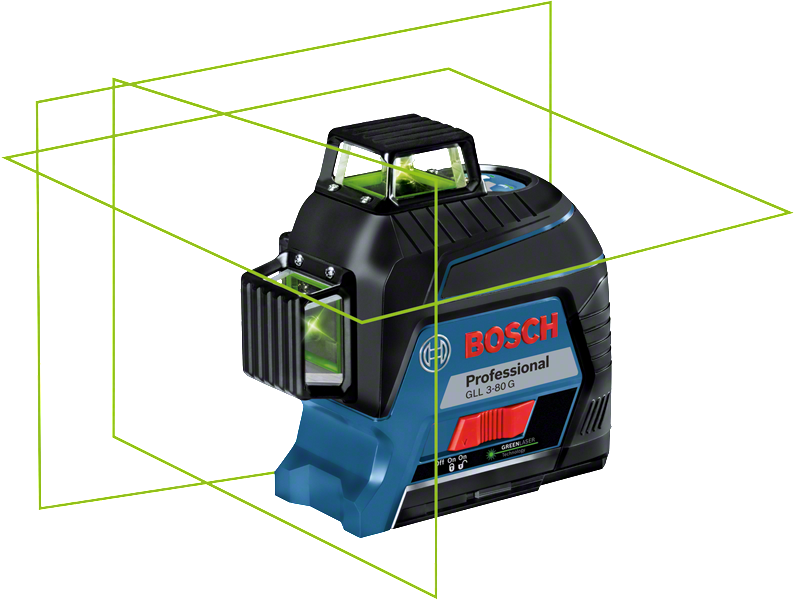

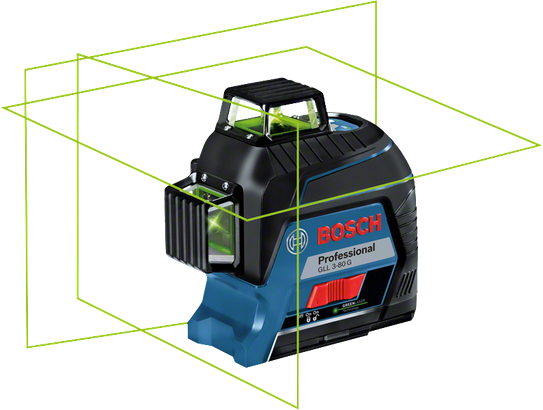

The line laser GLL 3-80 G Professional projects b1old 3 x 360° lines for high visibility. Its bright green lines provide up to four times better visibility than red lines. The tool can be used to set up entire rooms and is perfect for simultaneous horizontal and vertical levelling applications thanks to its three lines, for highly efficient work. An intuitive user interface makes it easy to operate.

Equipment & Application

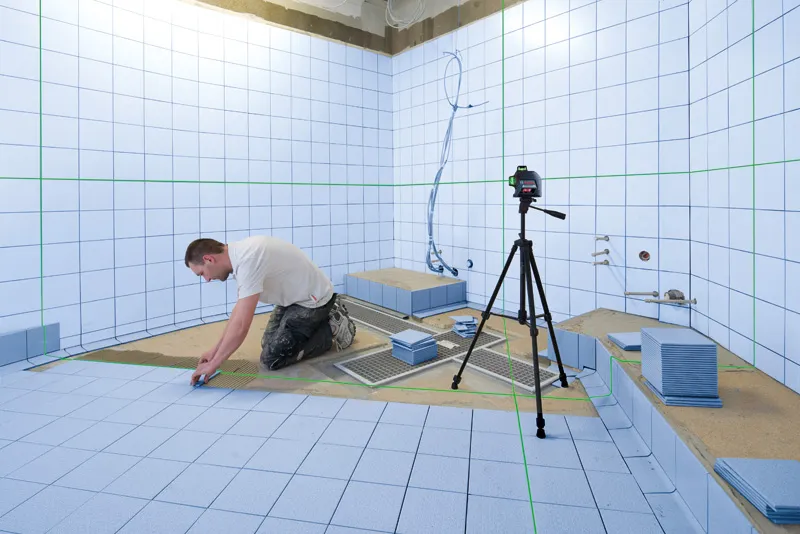

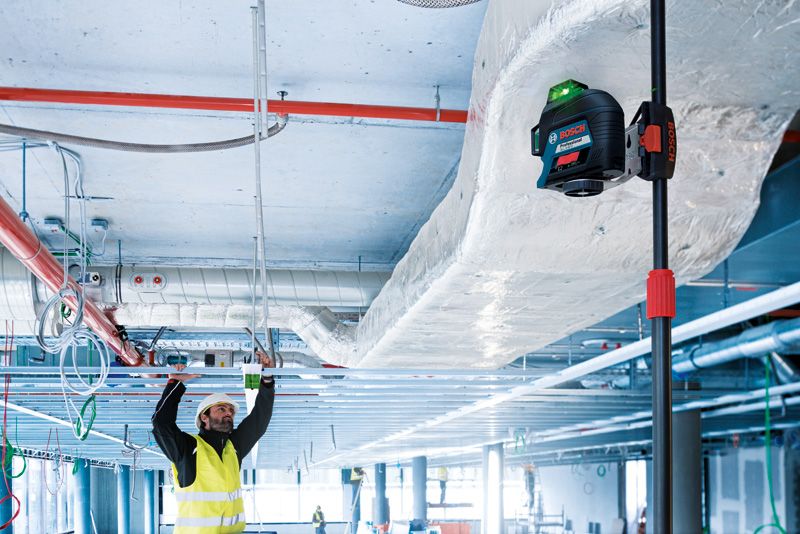

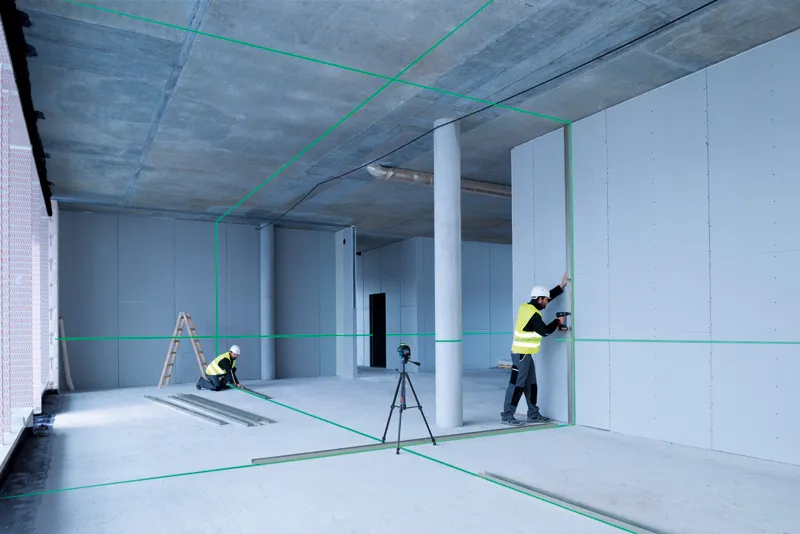

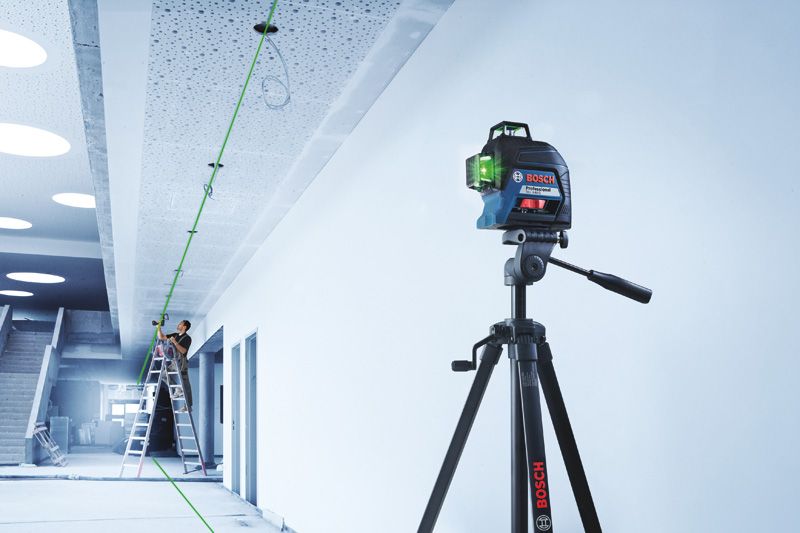

This tool is designed for various applications including suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building frameworks for drywalls, general construction, and laying tiles.

Additional Information

The GLL 3-80 G Professional can self-level up to ± 4° in less than 4 seconds, has a precision of ± 0.3 mm/m*/**, and a range of up to 120 m with the optional laser receiver LR 7. It is compact, easy to handle, and robust.
