Technical data
| Additional data | |
|---|---|
| No-load speed* | 10,000 – 25,000 rpm |
| Rated input power* | 1,600 W |
| Bit holder* | 8 – 12.7 mm |
| Maximum router cage stroke | 76 mm |
| Weight | 5.8 kg |
| Total vibration values (Sanding solid wood) | |
|---|---|
| Vibration emission value ah | 5.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages

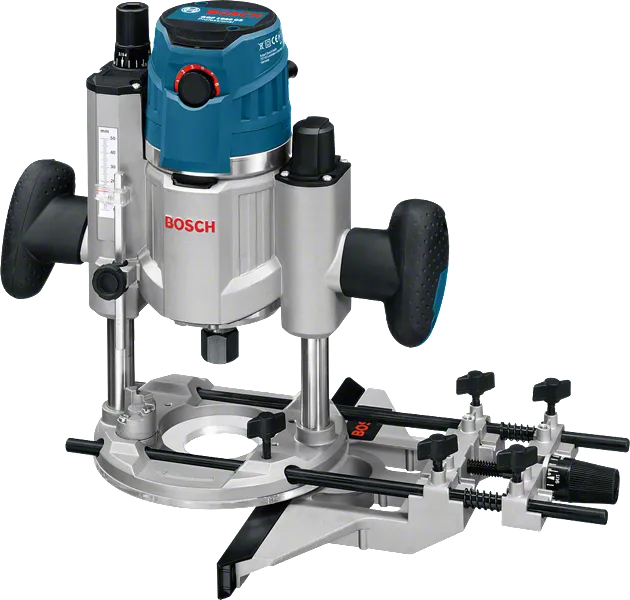

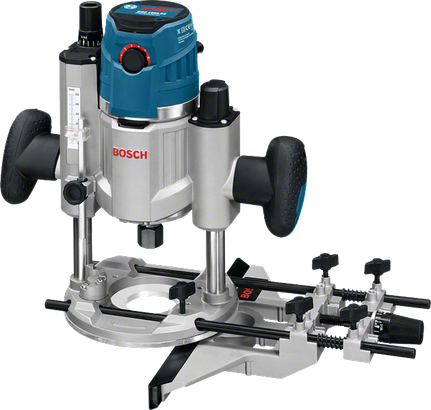

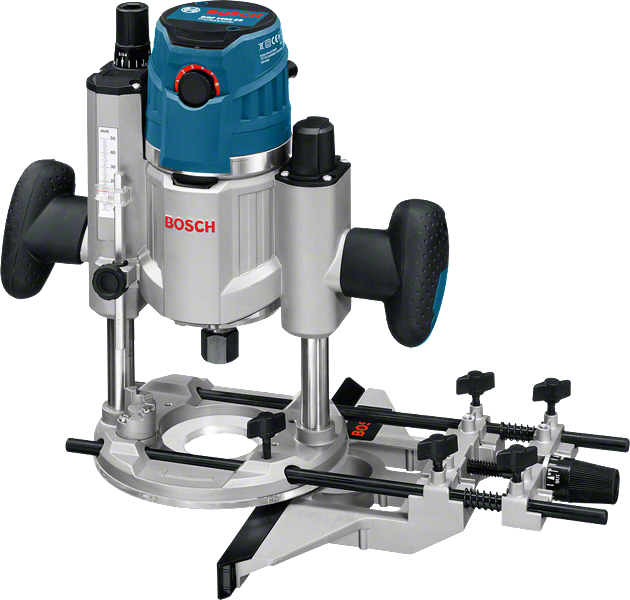

Precise plunge router with handle trigger switch and LED illumination
- Trigger switch with lock-on button located in handle for enhanced control
- After-lock Micro-fine Depth Adjustment for easy & precise adjustment at any plunge setting
- LED Light for enhanced visibility during operation and adjustment
Functions

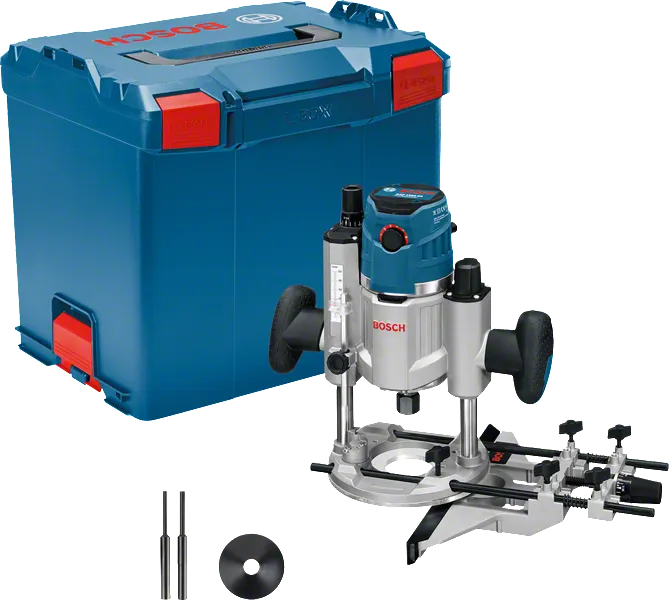

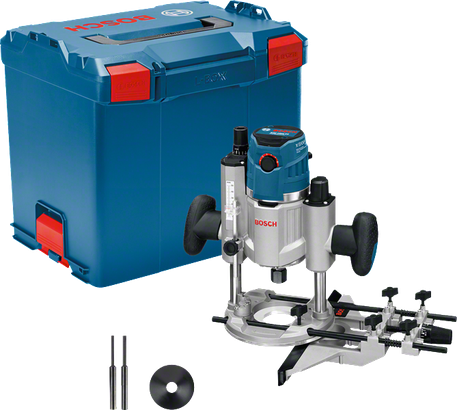

What’s Included in this Package
in L-BOXX with accessory set
Order number:
0 601 624 000
- Centring pin 8 mm/12 mm
- Chip protection for plunge-cutting router
- Dust extraction adapter for plunge-cutting router
- L-BOXX
- Open-ended spanner 24 mm (spare part number 2 610 992 417)
- Parallel guide with fine adjustment 2 607 001 387
- Template guide 17 mm 2 609 200 139
- Template guide 30 mm 2 609 200 142
- Collet with nut 12 mm 2 608 570 107
- Collet with nut 8 mm 2 608 570 105
732.00 USD
Recommended retail price excluding VAT.
