GPL 5 G Professional

Point Laser

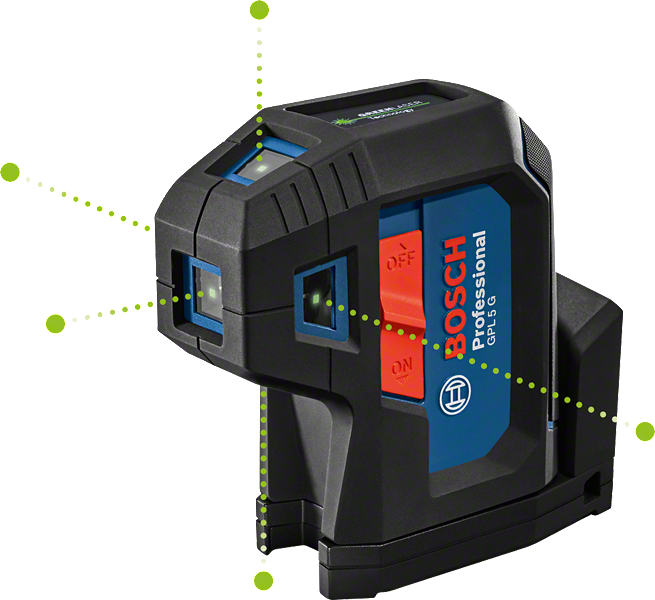

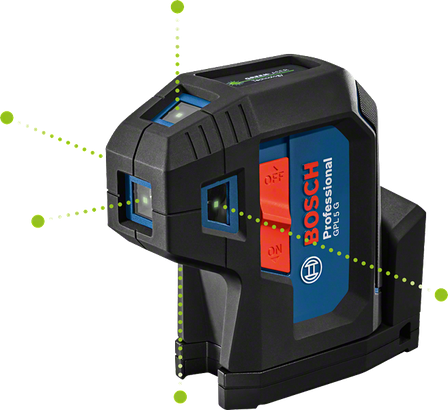

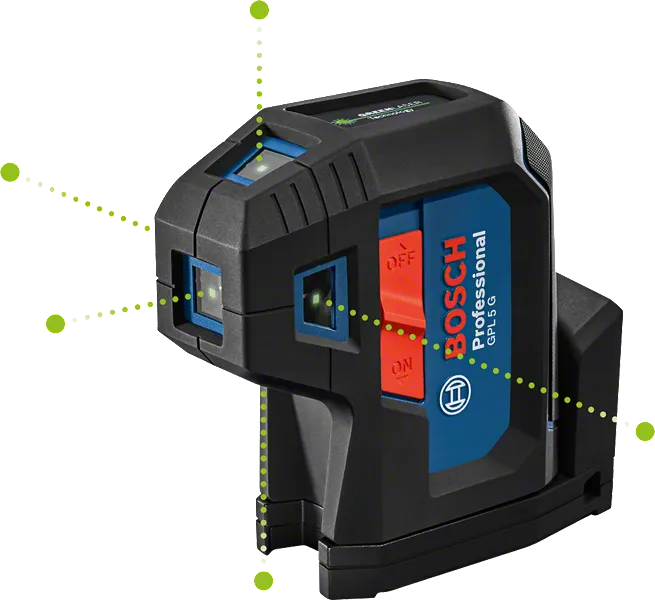

The tough and compact 5-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design resists tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Fast and secure mounting thanks to integrated rotation mount with strong magnets

Functions & key features

Line configuration 5-Point laser
IP65 dust tight and water jets protection
Integrated rotation mount
Laser class 2

Your Selection

  • with 2 x battery (AA), Pouch
Show variant Find a local dealer

with 2 x battery (AA), Pouch 0 601 066 P00

GPL 5 G Professional

Your Selection

with 2 x battery (AA), Pouch

Order number: 0 601 066 P00

Find a local dealer

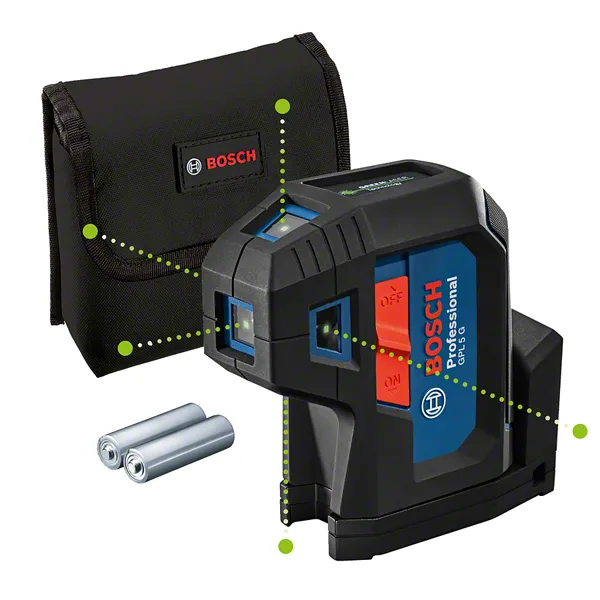

Included in this variant

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Dust and splash protectionnull IP 65
Working rangenull up to 30 m
Accuracynull ± 0.35 mm/m* (except bottom laser point) ; ± 0.7 mm/m* (bottom laser point) (*plus use-dependent deviation)
Projectionnull 5 points
Working range, valuenull 30 m
Laser diodenull < 1 mW, 500 – 540 nm
Operating temperaturenull -10 – 45 °C
Storage temperaturenull -20 – 70 °C
Laser classnull 2
Self-levelling rangenull ± 4°
Levelling timenull 4 s
Power supplynull 2 x 1.5 V LR6 (AA)
Operating time (max.)null 8 h
Tripod threadnull 1/4"

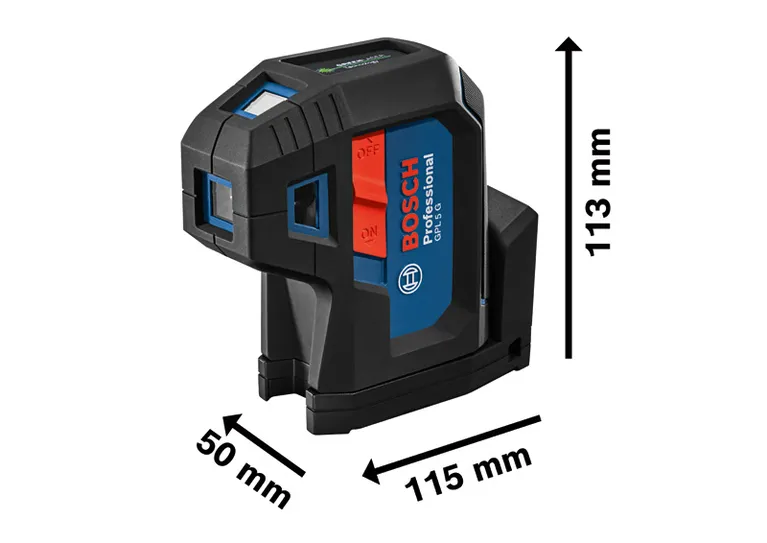

Weight, approx.null 0.35 kg

GPL 5 G Professional: Further information

Product Highlights

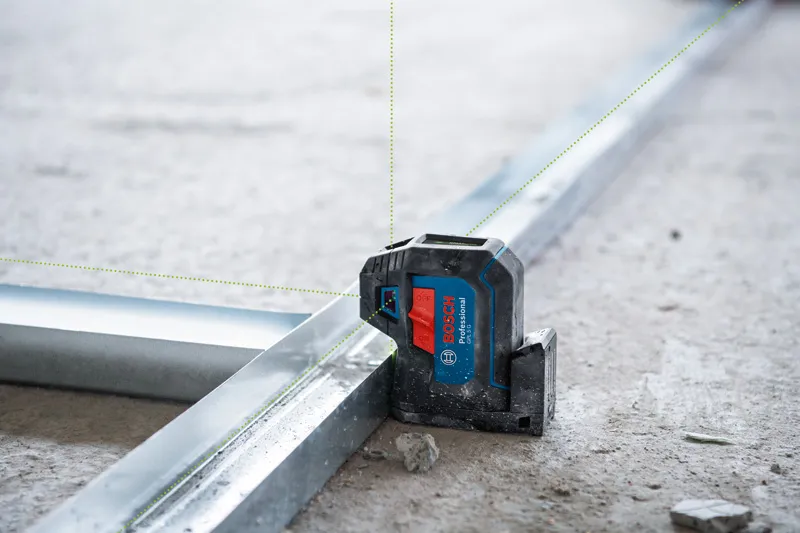

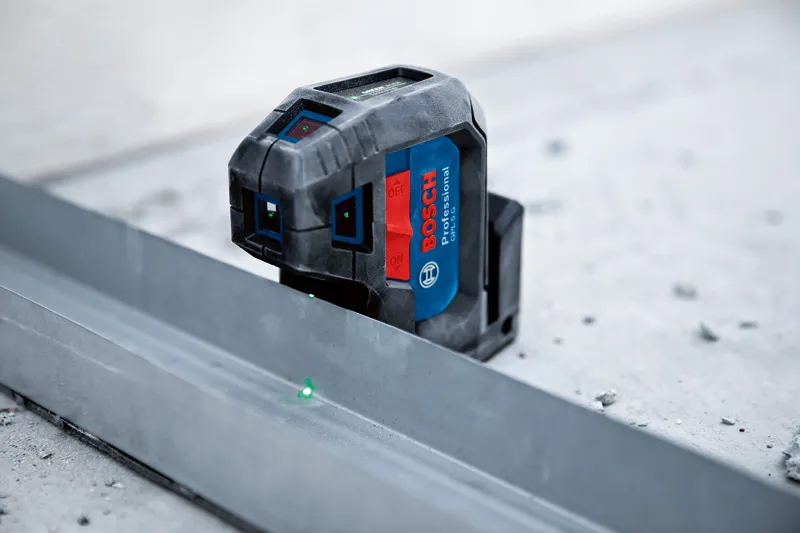

The 5-point laser GPL 5 G Professional stands out with its durable and compact design, making it the ideal choice for laying out 90-degree walls. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 5 G Professional resists tough jobsite conditions. This 5-point laser is transport-ready in no time, thanks to an integrated rotation mount that features strong magnets for fast and secure tool mounting.

Equipment & Application

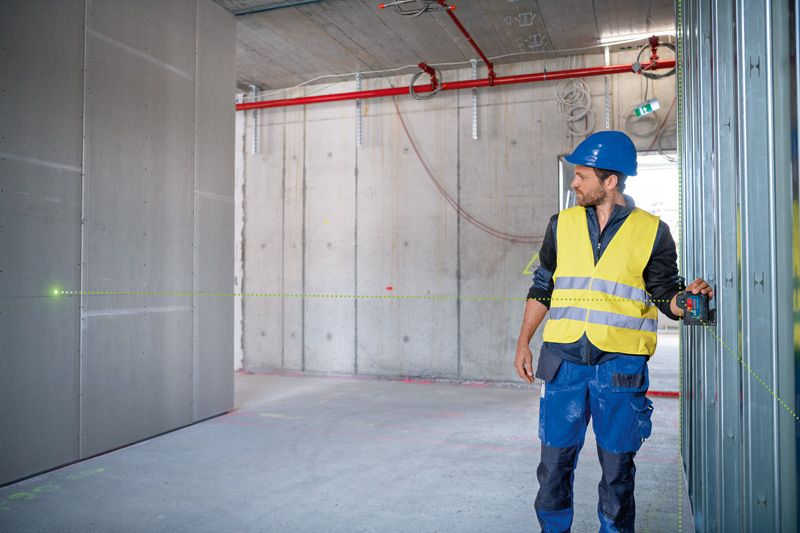

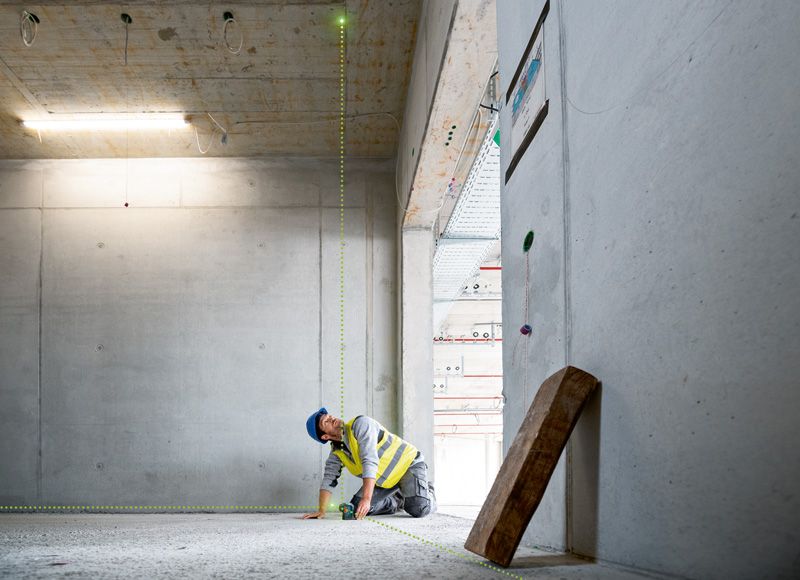

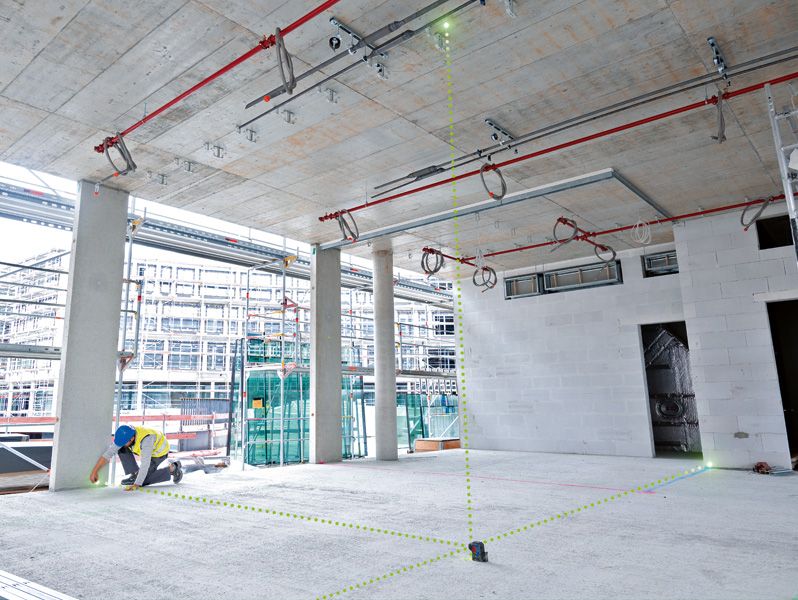

The GPL 5 G Professional is ideal for room partitioning with 90-degree angles and for transferring points from floor to ceiling. It is very suitable for jobs like plumbing and building frames for drywalls.

Additional Information

This 5-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
