Technical data
| Additional data | |
|---|---|
| Working range* | 100 m |
| Working range with receiver* | 300 m (Diameter) |
| Accuracy* | ± 0.1 mm/m |
| Laser diode | 532 nm, < 5 mW |
| Operating temperature, from | 0 °C |
| Operating temperature, up to | 40 °C |
| Operating temperature | 0 – 40 °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range with receiver, value | 300 m |
| Working range with receiver, appendage | (Diameter) |
| Working range without receiver, value | 100 m |
| Working range without receiver, appendage | (Diameter) |
| Working range without receiver | 100 m (Diameter) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Dust and splash protection | IP 54 |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D) |
| Operating time (max.) | Rechargeable batteries (NiMH) 20 h |
| Tripod thread | 5/8" |
| Weight, approx. | 1.8 kg |
| Colour of laser line | green |
| Compatible laser receivers | LR 1G |
* Highlighted Data
Advantages

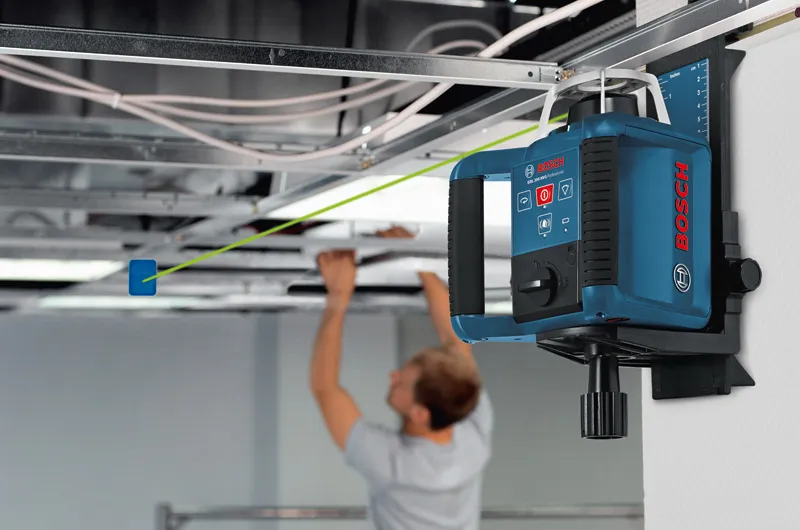

Outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Functions

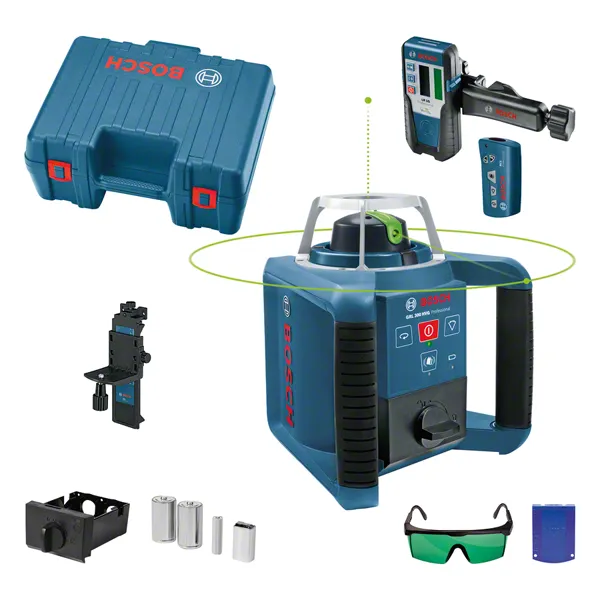

What’s Included in this Package
in carrying case with battery, accessory set
Order number:
0 601 061 701
- Battery compartment (spare part number 1 608 M00 05D)
- Carrying case (spare part number 1 608 M00 05F)
- Charger set with adapter (spare part number 1 608 M00 05E)
- Holder also available separately as an accessory (spare part number 1 608 M00 05A)
- Laser target (blue) (spare part number 1 608 M00 05K)
- Laser viewing glasses (green) (spare part number 1 608 M00 05J)

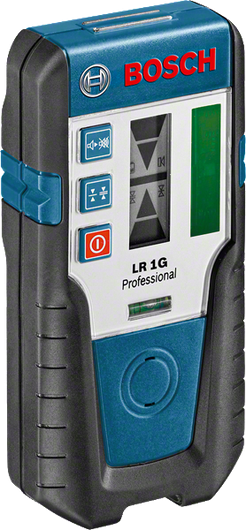

- Laser receiver LR 1G Professional 0 601 069 700

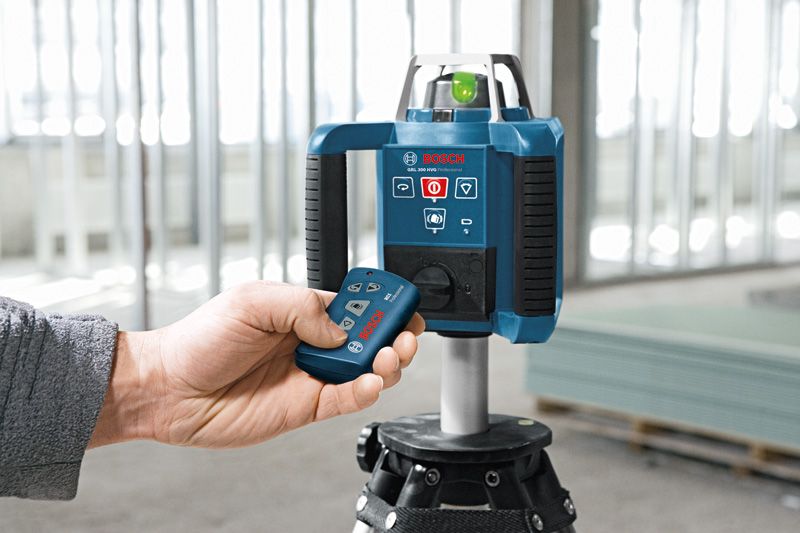

- Remote control RC1 Professional 0 601 069 900
- Universal mount WM 4 Professional 0 601 092 400
- 1 x NiMH battery (spare part number 1 608 M00 05G)
- 1 x 9 V block battery (6LR61)
- 2 x 1.5 V LR20 battery
- 1 x 1.5 V LR6 battery (AA)
1,085.00 USD
Recommended retail price excluding VAT.
