Technical data
| Additional data | |
|---|---|
| Rated input power* | 850 W |
| Weight | 2.6 kg |
| No-load speed, 1st gear | 0 – 1,000 rpm |
| No-load speed, 2nd gear | 3,000 rpm |
| Power output | 430 W |
| Rated speed | 800 / 2,060 rpm |
| Rated torque | 5.2 / 2.0 Nm |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Chuck capacity, min./max. | 1.5 – 13 mm |

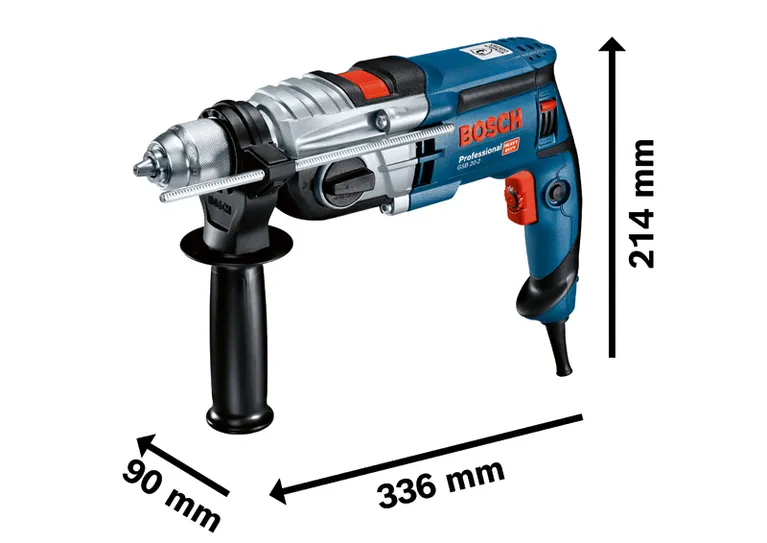

| Tool dimensions (width) | 90 mm |
| Tool dimensions (length) | 336 mm |
| Tool dimensions (height) | 214 mm |
| Impact rate at no-load speed | 0 – 17,000 / 51,000 bpm |
| Max. torque | 36.0 / 15.5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 18 / 13 mm |
| Drilling diameter in wood* | 40 / 25 mm |
| Drilling diameter in steel | 13 / 8 mm |
| Drilling dia. in stone | 20 / 15 mm |
| Drilling diameter in masonry* | 20 / 15 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 15 m/s² |
| Uncertainty K | 2 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages

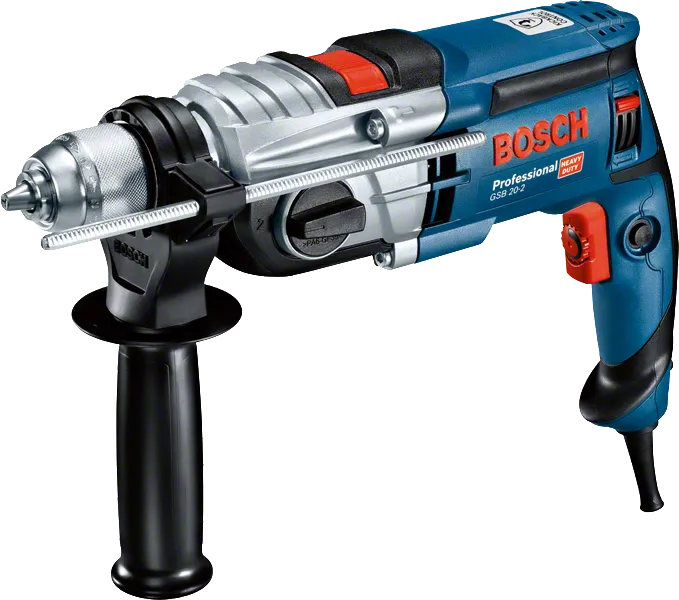

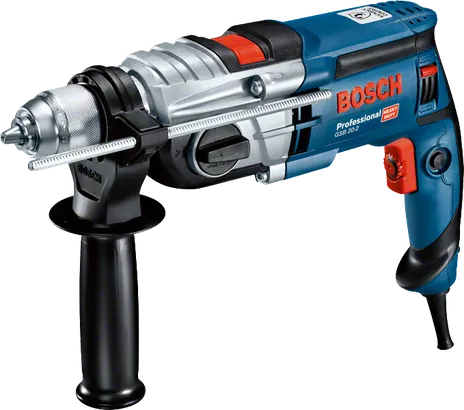

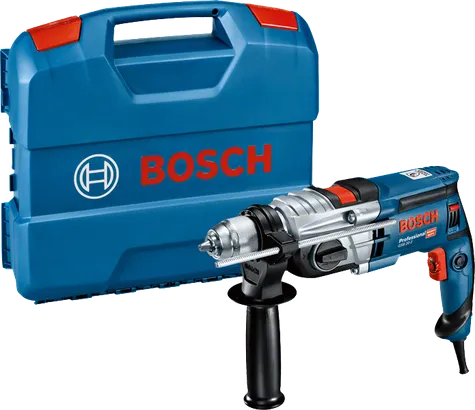

All-round performing 2-gear corded impact drill with KickBack Control
- Powerful 850 W motor for fast work progress
- KickBack Control increases user protection
- Sturdy metal gear housing for a long tool lifetime
Functions

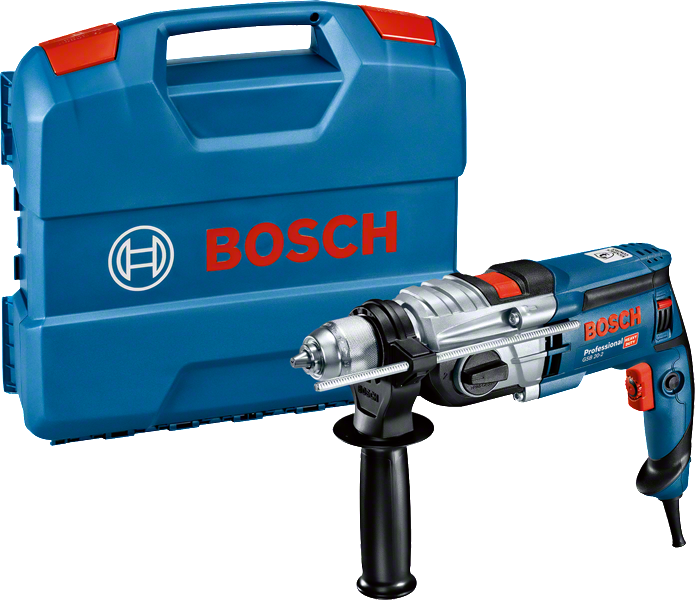

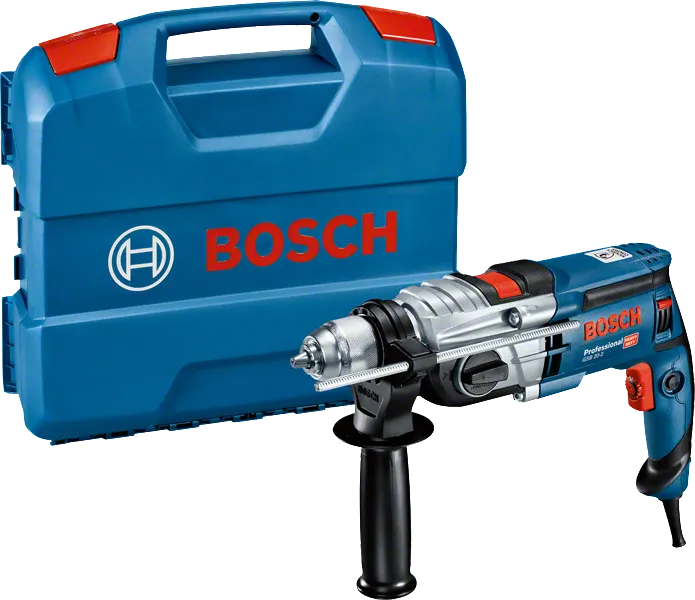

What’s Included in this Package
with chuck
Order number:
0 601 17B 400
- Keyless chuck 13 mm 2 608 572 149
- Auxiliary handle 2 605 025 190
- Depth stop 210 mm 1 613 001 010
- L-CASE
226.00 USD
Recommended retail price excluding VAT.
