Mitre saws & work benches

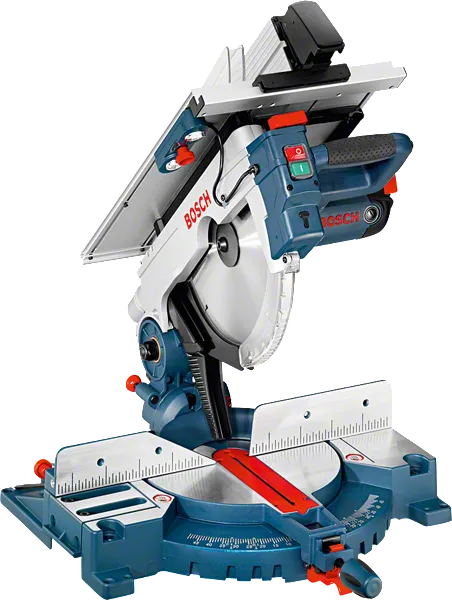

GTM 12 JL Professional

Combination Saw

Multi-talented tool with 100% precision

Table saw and mitre saw in one tool

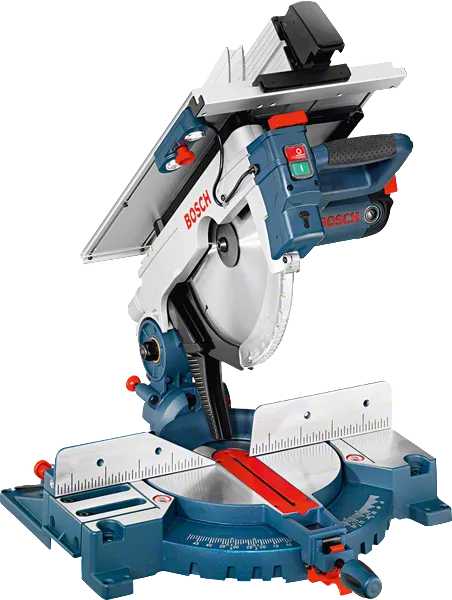

Precise work with integrated laser
Powerful 1800 W motor for fast work progress (up to 95 mm cutting depth – mitre function and up to 51 mm cutting height – table saw function)

Functions & key features

Your Selection

with circular saw blade

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

with circular saw blade 0 601 B15 001

Find a local dealer

GTM 12 JL Professional

Your Selection

with circular saw blade

Order number: 0 601 B15 001

Find a local dealer

Included in this variant

1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40

Order number: 2 608 640 440
Push stick

Order number: 1 619 P04 042

Your selection

Technical data

Additional data
Saw blade diameter	305 mm
Mitre setting	48 ° L / 48 ° R
Bevel setting	47 ° L / 2 ° R
Saw blade bore diameter	30 mm
Rated input power	1,800 W
Cutting capacity, 0°	95 x 150 mm
Cutting capacity, 45° mitre	95 x 90 mm

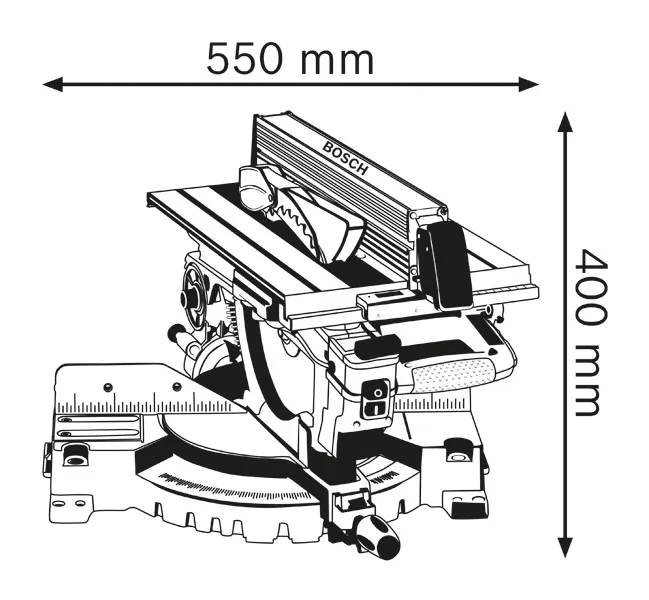

Tool dimensions (width x length x height)	660 x550 x400 mm
No-load speed	3,800 rpm
Cutting height of table saw	51 mm
Weight	21 kg

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.

* You can find more information about the deviations in the following link: Technical features of products

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
