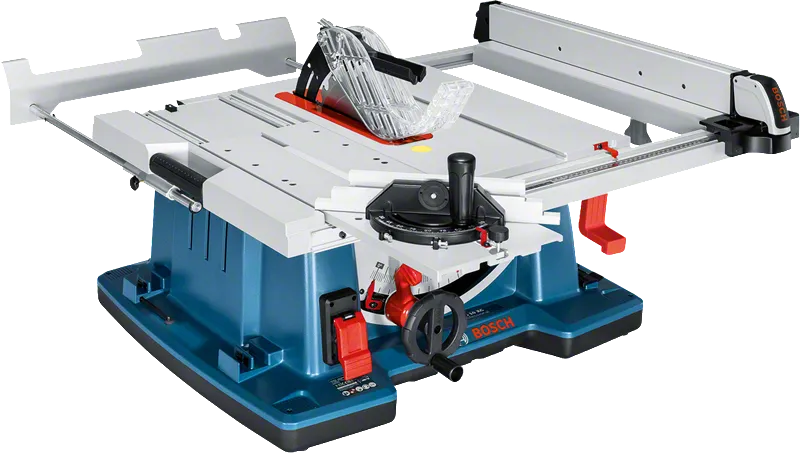

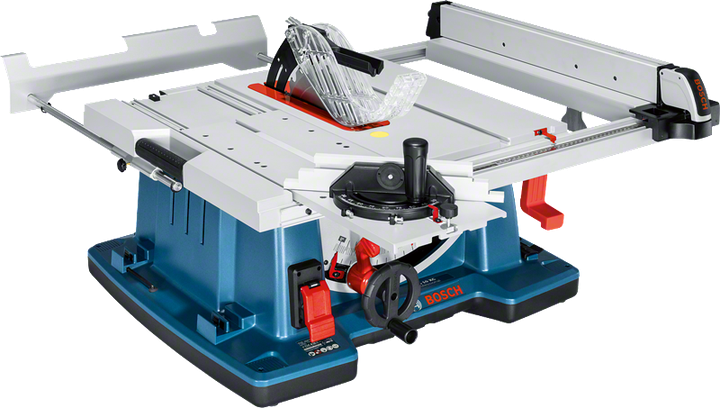

Table Saw GTS 10 XC Professional

The versatile tool with a powerful motor

770.00 USD Recommended retail price excluding VAT.

Technical data
Additional data
Saw blade diameter* 254 mm
Incline setting* 47 ° L / 1 ° R
Table size* 640 x 705 mm

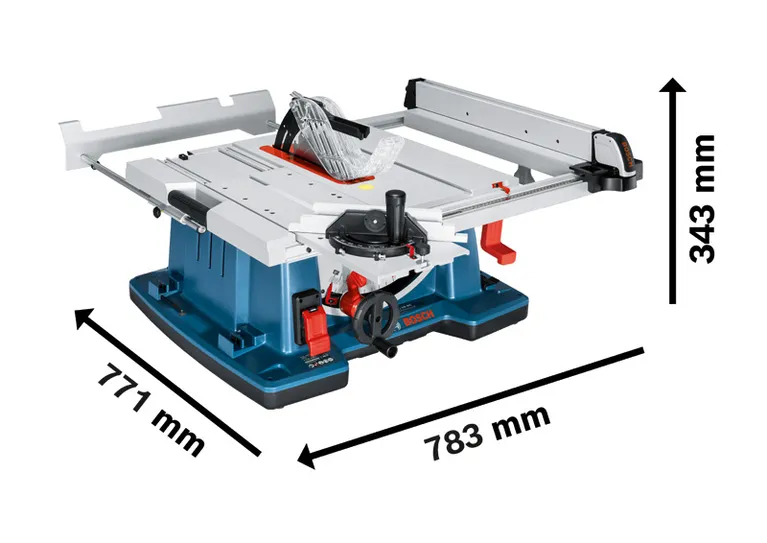

Tool dimensions (width x length x height) 325 mm
No-load speed 3,200 rpm
Cutting height 90° 79 mm
Saw blade bore diameter 30 mm
Weight 35 kg
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 250 mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 111 dB(A). Uncertainty K= 3 dB.

Advantages

The versatile tool with a powerful motor

  • Powerful motor with motor brake, starting current limitation, overload protection and Constant Electronic for the toughest applications

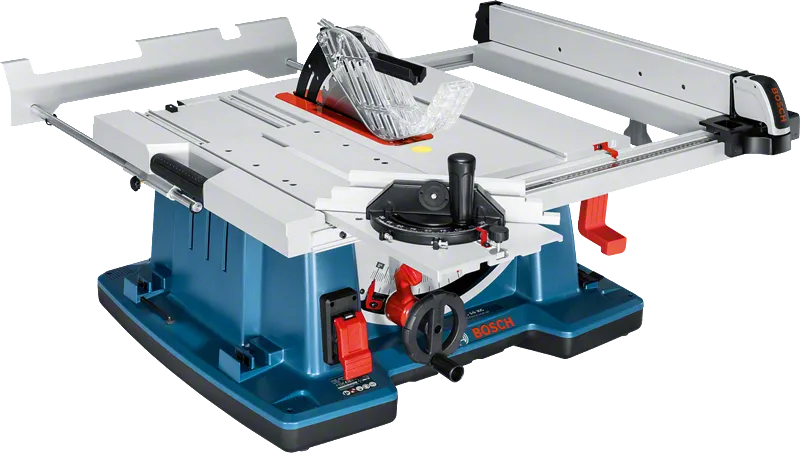

  • Versatile due to integrated slide carriage as well as table widener and table extension
  • Tool-free lowering of the riving knife for concealed cuts

Functions

Easy disc / tool change thanks to spindle lock
Best work results with constant speed thanks to electronic regulation of speed - even under load
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 B30 400
  • Dust extraction adapter 2 610 015 509
  • Angle guide 2 610 015 508
  • Parallel guide 2 610 016 851

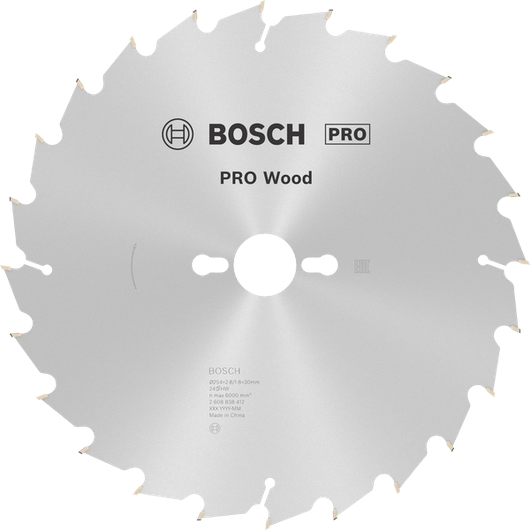

  • Saw blade 254 x 30 mm
  • Push stick 2 610 015 022
  • Storage for additional saw blade
770.00 USD Recommended retail price excluding VAT.

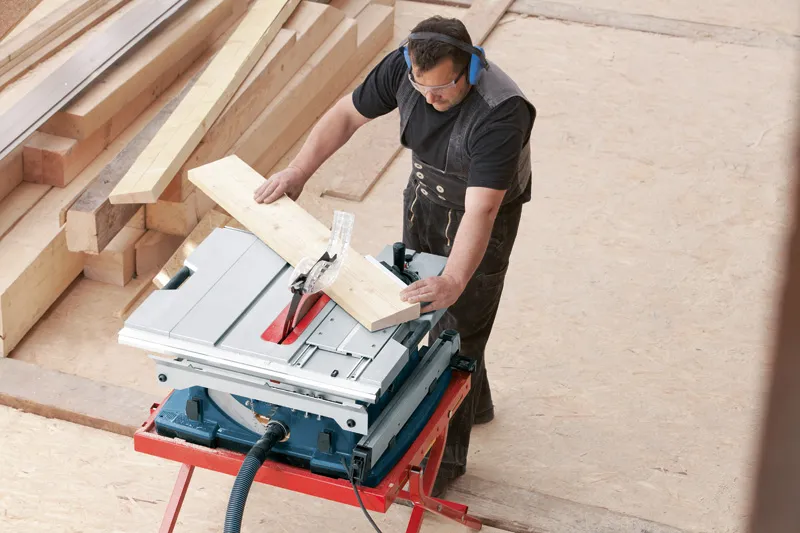

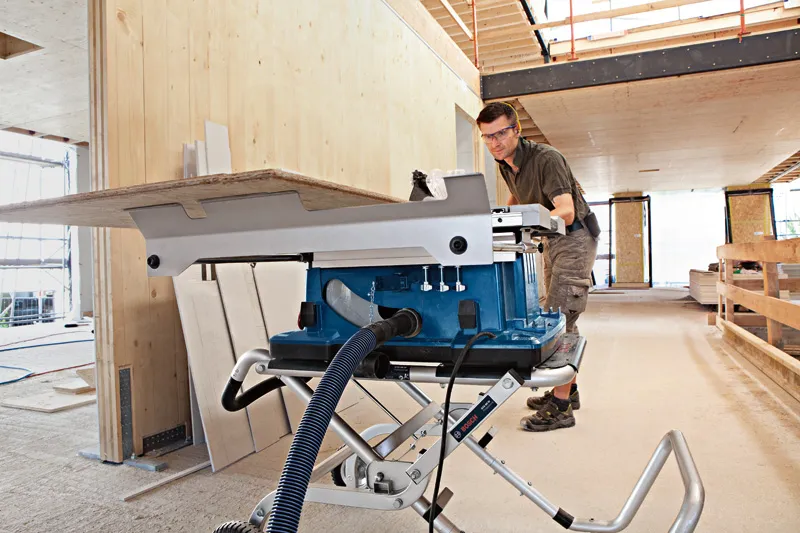

The GTS 10 XC in action!
