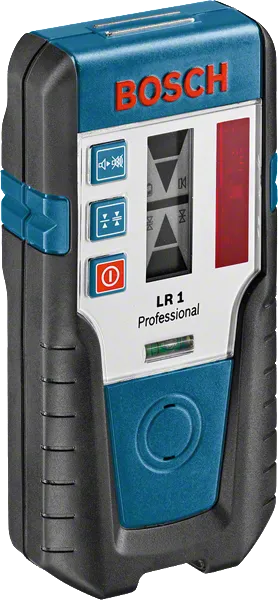

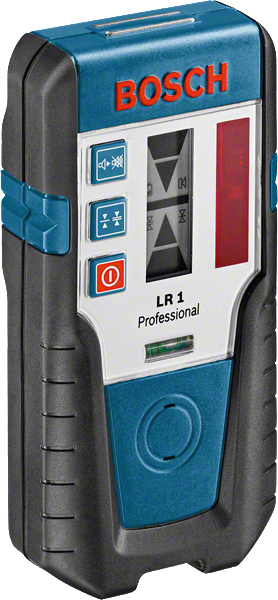

Laser Receiver LR 1 Professional

More benefit thanks to accessories
225.00 USD Recommended retail price excluding VAT.
LR 1 Professional
Technical data
Additional data
Range of* 0 – 200 m
Power supply* 1 x 9 V 6LR61 Block
Dust and splash protection* IP 65
Remote control -
Receiver +
Range, from 0 m
Range, up to 200 m
Weight, approx. 250 g
Tool dimensions (width) 75 mm
Tool dimensions (length) 145 mm
Tool dimensions (height) 30 mm
Measuring accuracy, fine ± 1 mm
Measuring accuracy, rough ± 3 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

* Highlighted Data

Advantages

More benefit thanks to accessories

  • Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H Professional and GRL 300 HV Professional Rotation Lasers
  • Visual and audible alignment of the laser beam plane
  • Dust and splash protection (IP65)

Functions

Accuracy Measuring accuracy ± 1.0 mm
Accuracy Measuring accuracy ± 3.0 mm
Working range of LR 1 Range with receiver 400 m
Battery Indicator Battery indicator
Reception range 4.0 cm Reception range 4 cm
Sound Activation Audible alignment of the laser beam level
Strong Magnets Strong magnets for better mounting
Two Sided Display Display on front and back

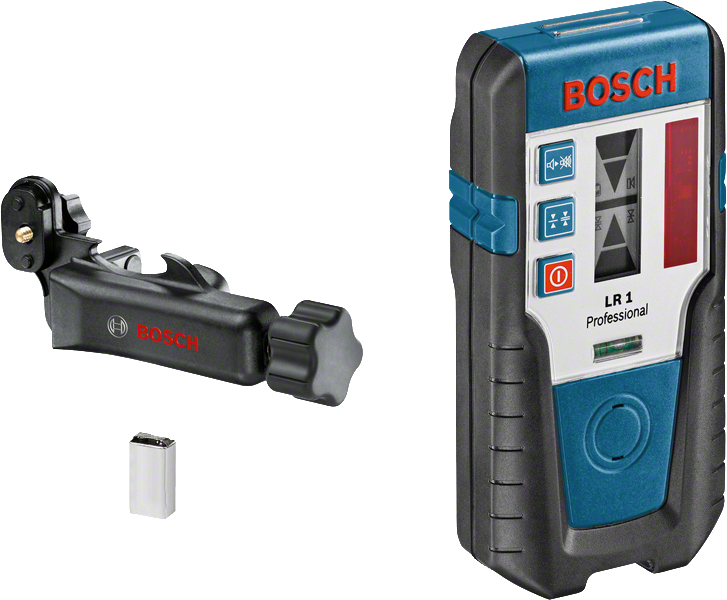

What’s Included in this Package
with 1 x battery (6LR61), Bracket (1 608 M00 70F)
with 1 x battery (6LR61), Bracket (1 608 M00 70F)
Order number: 0 601 015 400
  • Bracket 1 608 M00 70F
  • 1 x 9 V block battery (6LR61)
225.00 USD Recommended retail price excluding VAT.
