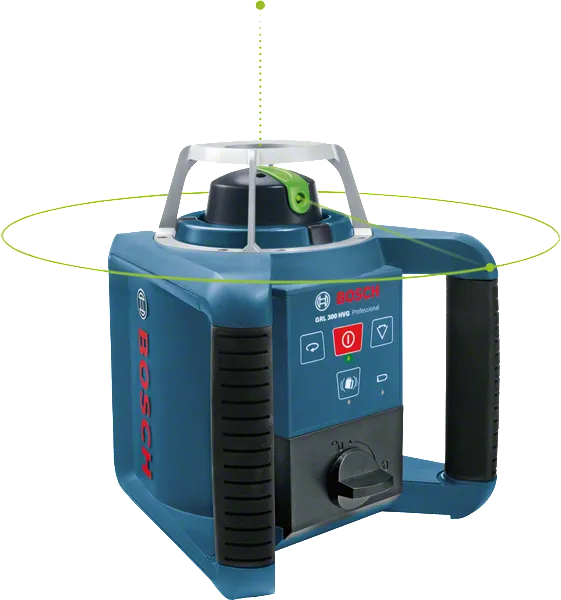

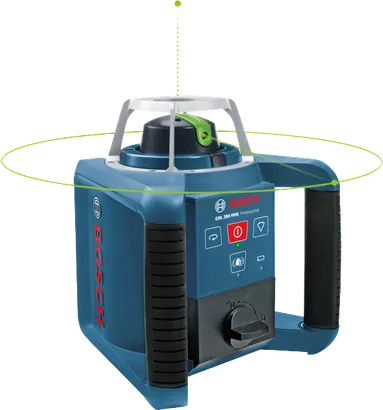

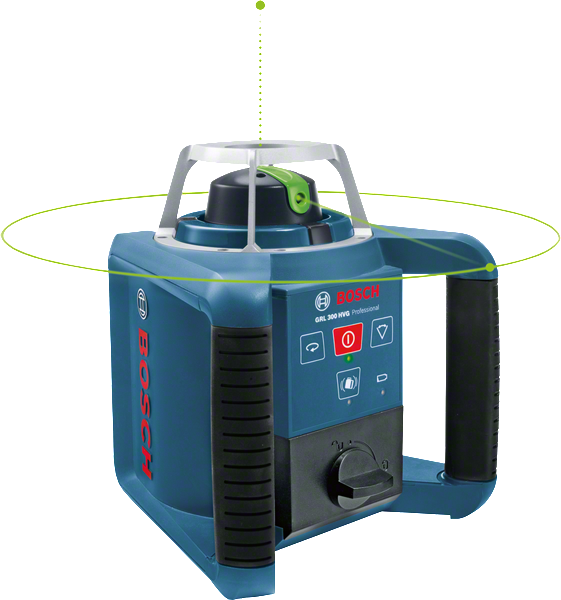

GRL 300 HVG Professional

Rotation Laser

GRL 300 HVG

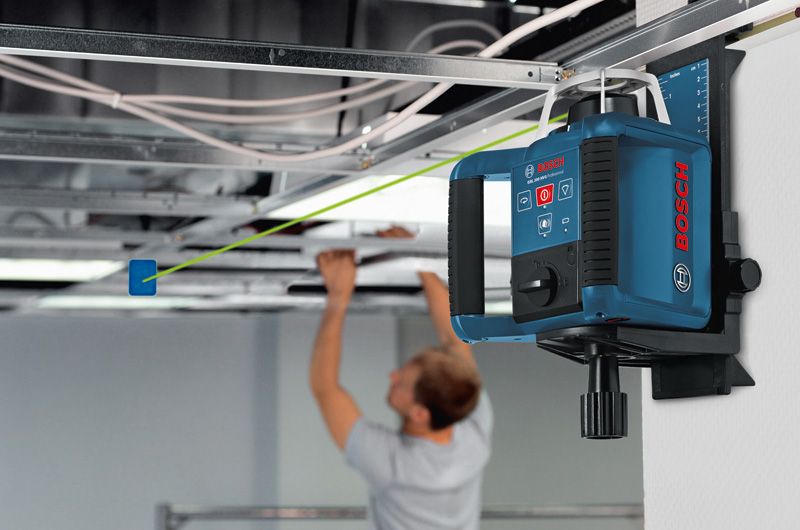

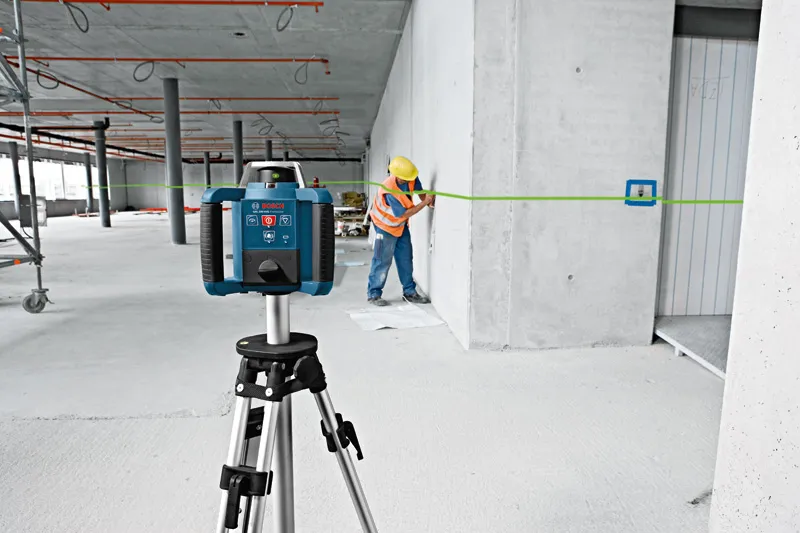

Outstanding visibility for indoor applications

  • Green laser line: up to four times better visibility than a red line
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
See technical details

Functions & key features

Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
Working range up to 100 m

Your Selection

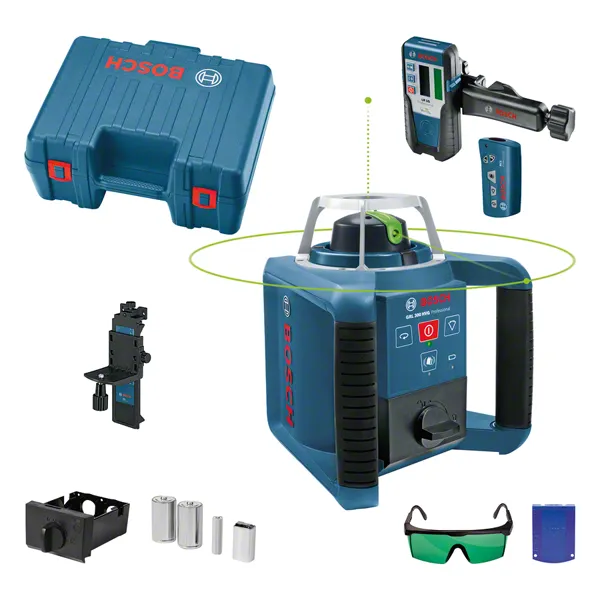

  • in carrying case with 1 x 9 V block battery, receiver
Show variant
424.00 OMR Recommended retail price excluding VAT
Find a local dealer

in carrying case with 1 x 9 V block battery, receiver 0 601 061 701
424.00 OMR Recommended retail price excluding VAT

GRL 300 HVG Professional

Your Selection

in carrying case with 1 x 9 V block battery, receiver

Order number: 0 601 061 701

424.00 OMR

Recommended retail price excluding VAT

Find a local dealer

Technical data

Additional data

Working range with receiver, value 300 m
Accuracy ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Laser diode 532 nm, < 5 mW
Operating temperature 0 – 40 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range 100 m
Working range with receiver 300 m (Diameter)
Working range without receiver 100 m (Diameter)
Self-levelling range ± 5° (8%)
Levelling time 15 s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply 2 x 1.5 V LR20 (D)
Tripod thread 5/8"

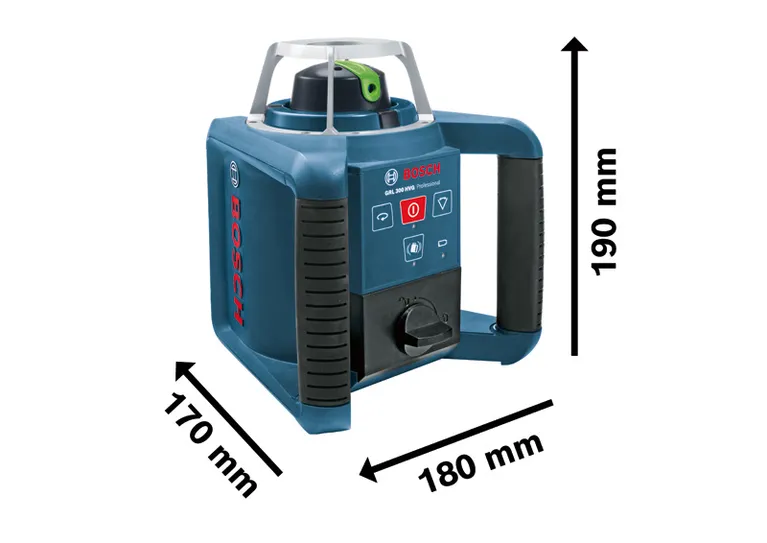

Weight, approx. 1.8 kg
Colour of laser line green

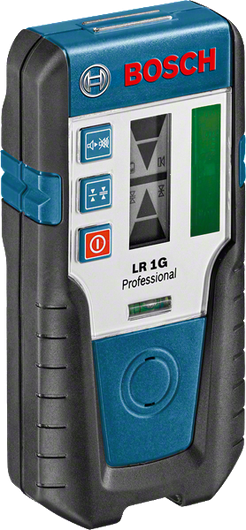

Compatible laser receivers LR 1G
Slope function no
Working range, value 100 m
