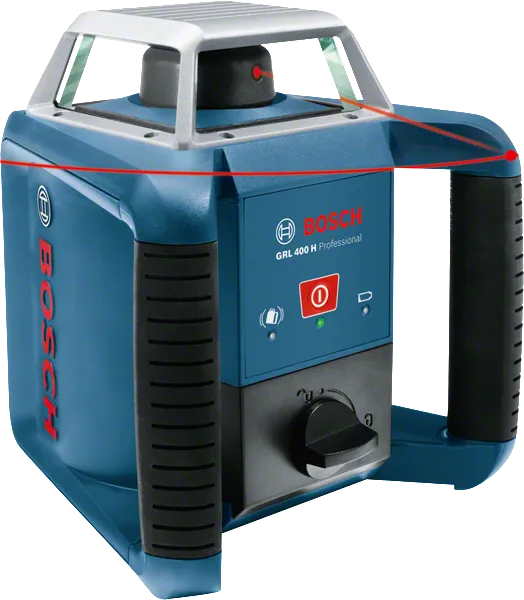

Rotation Laser GRL 400 H Set Professional

Jobsite ready – the intuitive, single-button tool for outdoor-levelling applications

from  3,119.00 QAR Recommended retail price excluding VAT.

Technical data
Additional data
Working range* 20 m
Working range with receiver* 400 m (Diameter)
Accuracy* ± 0.08 mm/m
Laser diode 635 nm, < 1 mW
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50 °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range with receiver, value 400 m
Working range with receiver, appendage (Diameter)
Working range without receiver, value 20 m
Working range without receiver, appendage (Diameter)
Working range without receiver 20 m (Diameter)
Self-levelling range ± 8% (± 5°)
Levelling time 15 s
Dust and splash protection IP 56
Rotation speed 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 30 h
Tripod thread 5/8"-11

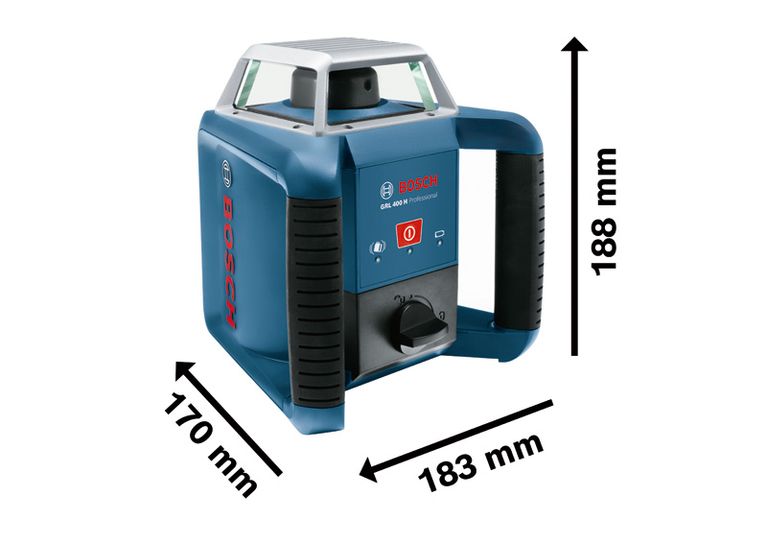

Weight, approx. 2 kg
Colour of laser line red
Compatible laser receivers LR 1

* Highlighted Data

Advantages

Jobsite ready – the intuitive, single-button tool for outdoor-levelling applications

  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with 0.08 mm/m levelling accuracy and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56

Functions

Laser class 2 Laser class for measuring tools.
Shock Warning Shock warning function
Self Levelling 8% Self-levelling ± 8%
Working range of GRL 400 H Range with receiver 400 m
Working range of GRL 400 H Working range Ø 20 m
GRL 400 H Fast alignment due to a horizontal 360° laser line
Levelling accuracy 0.08 mm/m Measuring accuracy of 1.6 mm/30 m
Rotation mode Rotation speed 600 rpm
IP protection 56 Dust and splash protection IP56

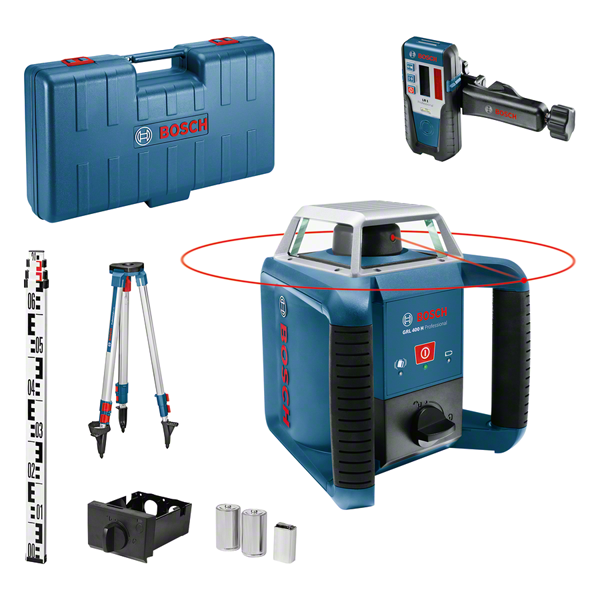

What’s Included in this Package
in carrying case with Laser Receiver LR 1 Professional (0 601 015 400)
in carrying case with Laser Receiver LR 1 Professional (0 601 015 400)
Order number: 0 615 994 0JY
  • Rotation Laser GRL 400 H Professional
  • Laser Receiver LR 1 Professional 0 601 015 400
  • Building Tripod BT 152 Professional
  • Measuring rod GR 2400 Professional
  • Carrying case
3,119.00 QAR Recommended retail price excluding VAT.
Product variations (2)

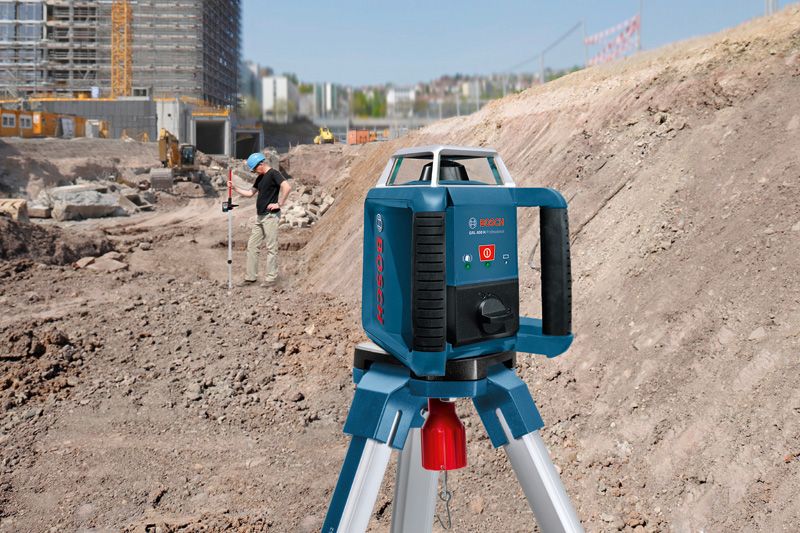

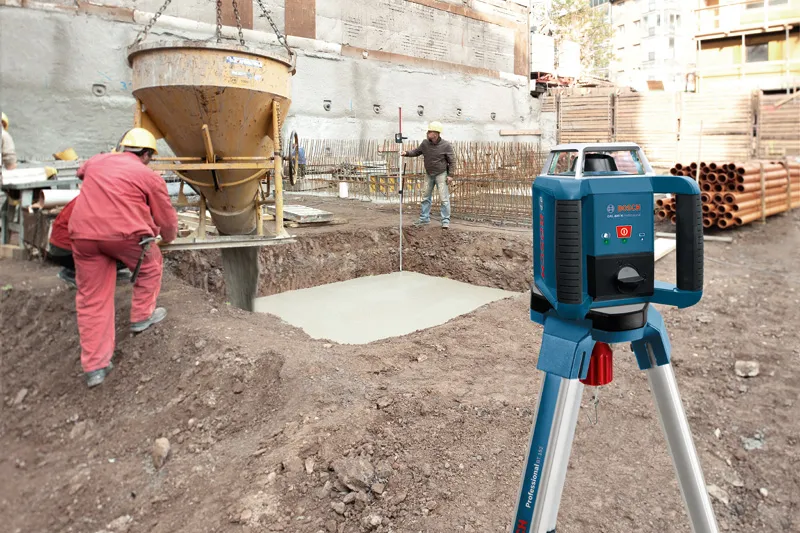

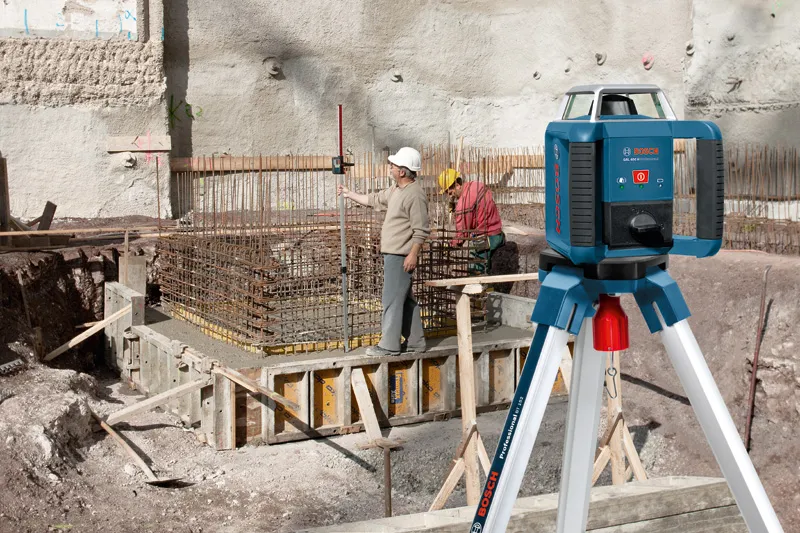

The GRL 400 H Set in action!
