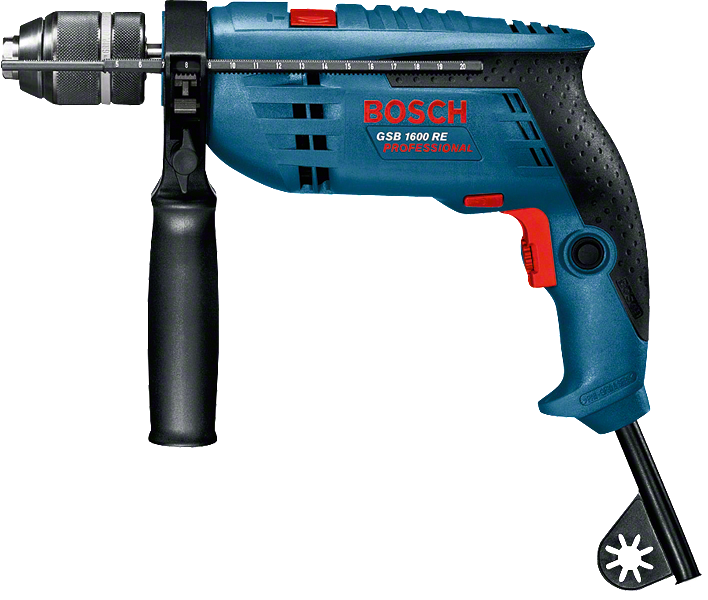

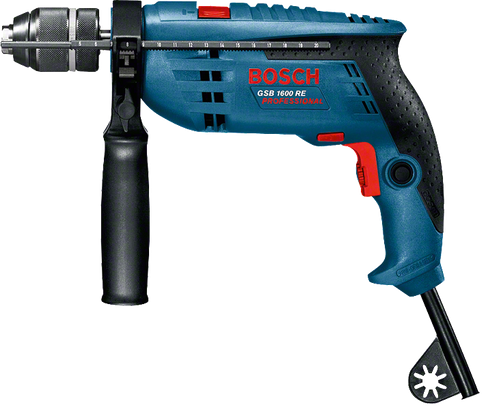

Impact Drill GSB 16 RE Professional

Compact power – The most compact and powerful impact drill in its class

Technical data
Additional data
Rated input power* 701 W
Weight 1.9 kg
No-load speed 0 – 3,000 rpm
Power output 351 W
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm
Impact rate at no-load speed 0 – 48,000 bpm
Drilling range
Drilling diameter in concrete 16 mm
Drilling diameter in wood* 30 mm
Drilling diameter in steel 12 mm
Drilling diameter in masonry* 18 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.7 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 23 m/s²
Uncertainty K 3.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.

Advantages

Compact power – The most compact and powerful impact drill in its class

  • Robust and powerful 701 W motor for tough applications
  • Soft in line grip for a secure hold
  • Higher dynamic load rated ball bearing for long life

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Woodworking The professional power tools for woodworking from Bosch.

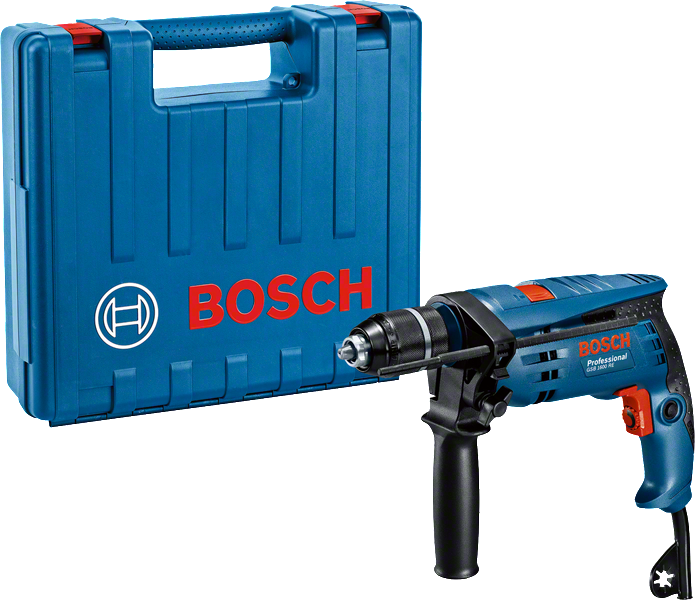

What’s Included in this Package
with Auxiliary handle
with Auxiliary handle
Order number: 0 601 218 671
  • Carton box
  • Auxiliary handle
  • Depth gauge
Product variations (2)

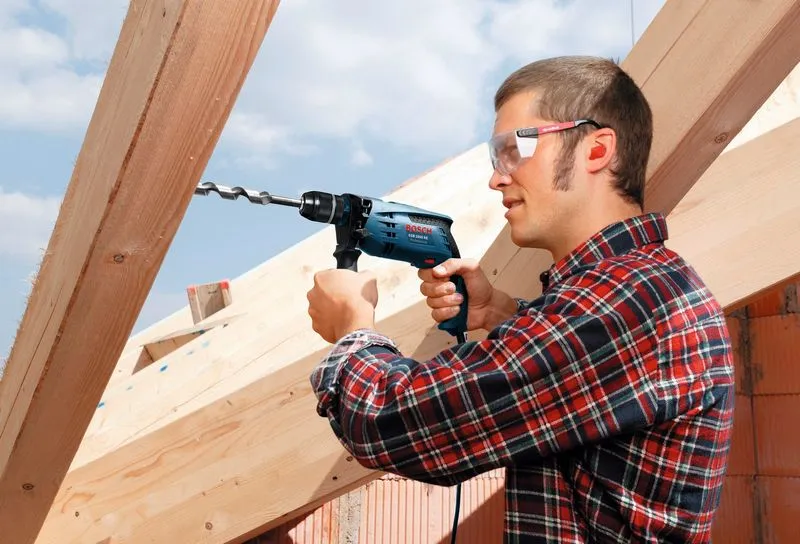

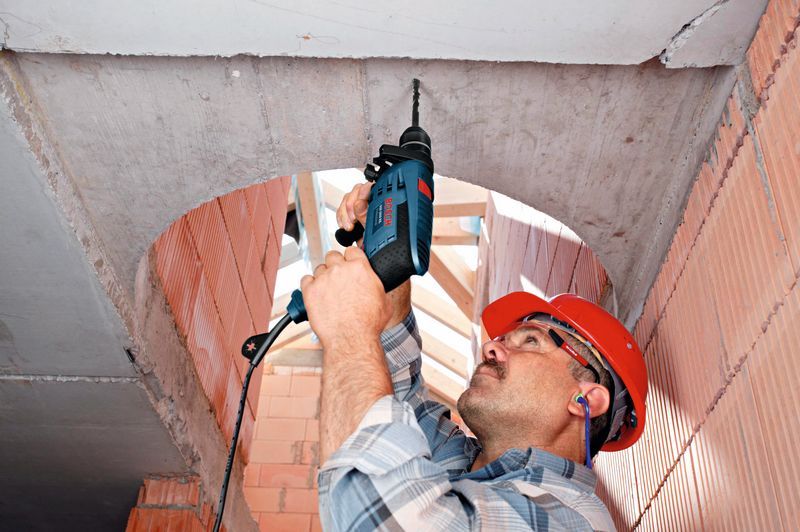

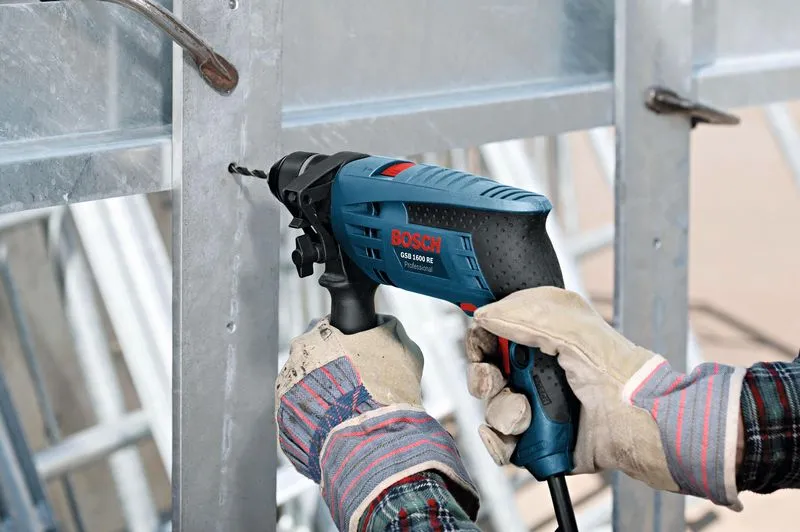

The GSB 16 RE in action!
