Multi-Material Drill Bits
EXPERT
Object #200347819: <!-- language missing -->
Object #200347818: <!-- language missing -->
Object #200360545: <!-- language missing -->
Object #200360546: <!-- language missing -->
Object #200360547: <!-- language missing -->
Object #200360548: <!-- language missing -->
Object #200347817: <!-- language missing -->
Object #200347819: <!-- language missing -->
Object #200347818: <!-- language missing -->
EXPERT CYL-9 Multi Construction
Object #200360545: <!-- language missing -->
Object #200360546: <!-- language missing -->
Object #200360547: <!-- language missing -->
Object #200360548: <!-- language missing -->
Object #200347817: <!-- language missing -->

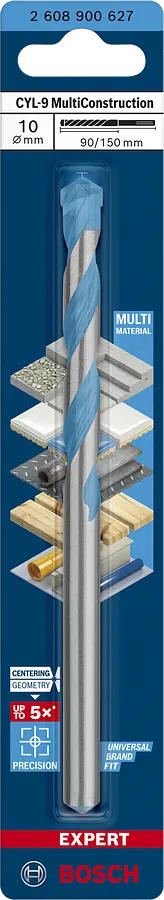

EXPERT CYL-9 Multi Construction Drill Bit

For impact drill/drivers, For rotary drills/drivers

EXPERT CYL-9 Multi Construction

Up to 5x more precise than a Bosch CYL-3 Drill Bit

Test results
  • High Precision drilling in multiple materials
  • Accurate drilling is easier with Bosch Centering Geometry
  • Start holes accurately with a specially designed centring tip
  • Cylindrical shank compatible with three-jaw drill chucks

Materials

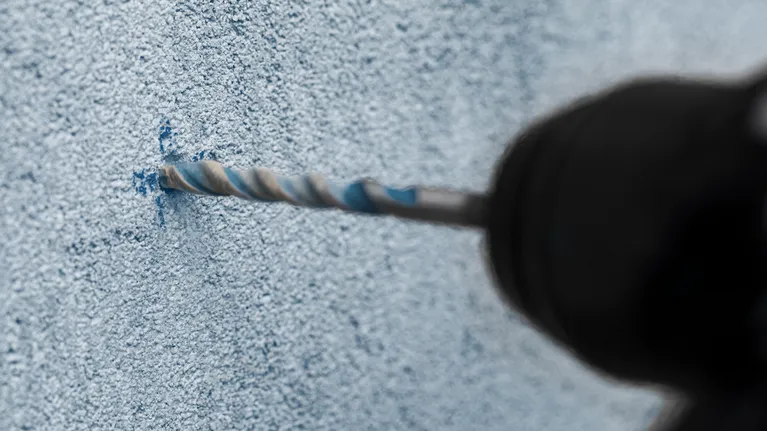

Concrete

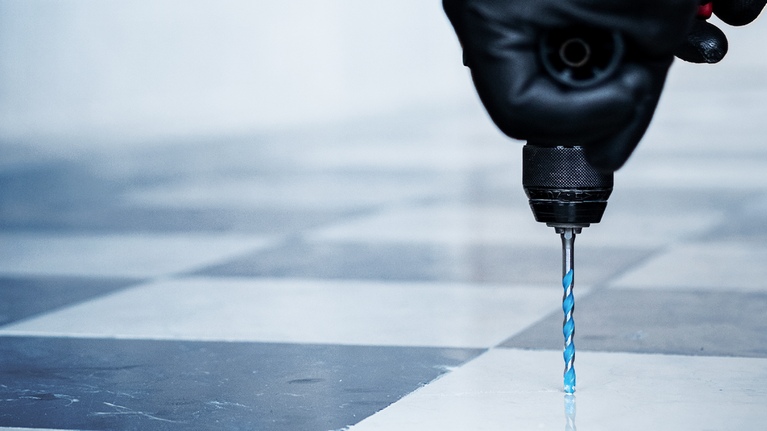

Soft tiles
Steel

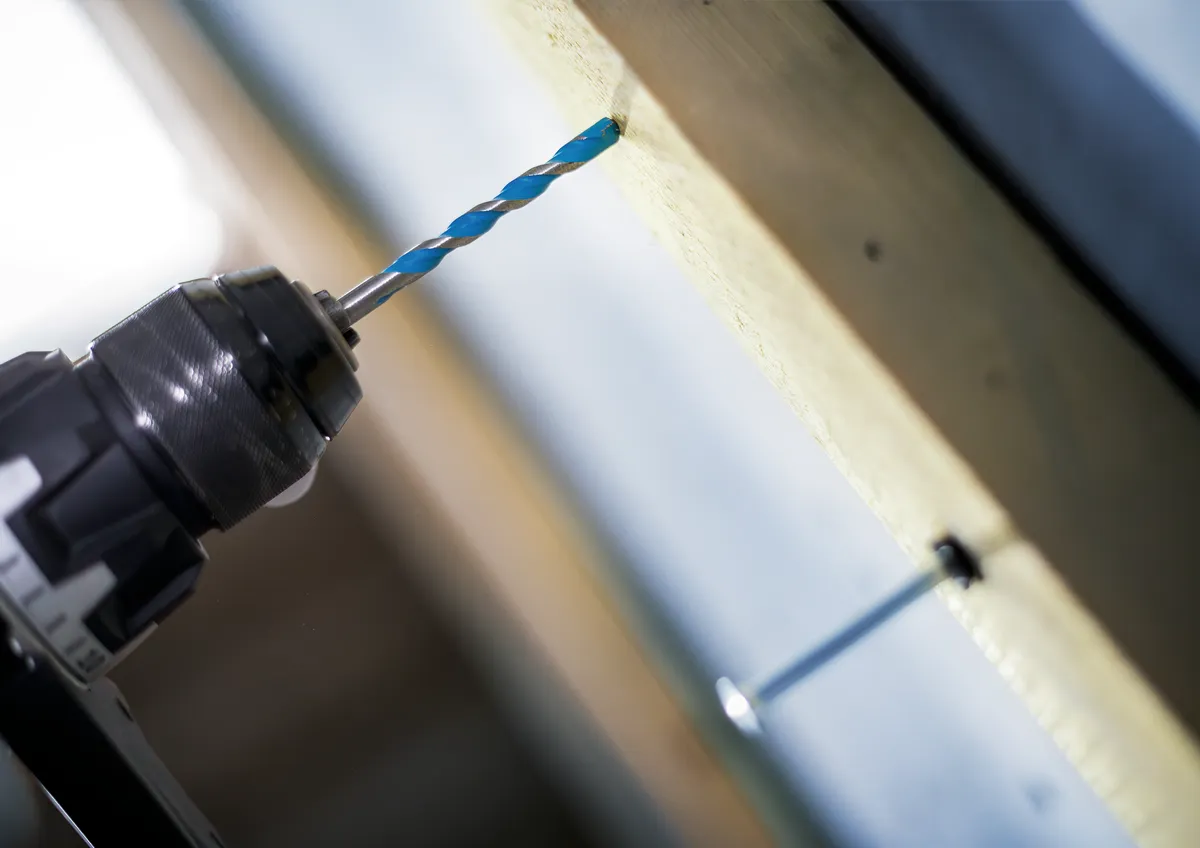

Softwood
Plastics

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 15 options

Working length mm 8 options

Total length mm 9 options

Choose a pack size 3 options

Available product options (37)
EXPERT CYL-9 Multi Construction Drill Bit
from

High Precision drilling in multiple materials

High Precision drilling in multiple materials
  • 1

    Accurate drilling is easier with Bosch Centering Geometry

  • 2

    Start holes accurately with a specially designed centring tip

  • 3

    High-performance carbide tip manufactured by fine grinding

  • 4

    Optimised dust extraction channel for fast, efficient drilling

Centering Geometry
For impact drill/drivers, For rotary drills/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks

EXPERT
Advantage

Precise Drilling in Every Material

EXPERT CYL-9 MultiConstruction Drill Bit for Maximum Precision Drilling Multiple Materials

The modern construction site requires working on many different materials and you never know what you will need to drill next. Finding the right drill bit can be difficult and time-consuming – unless you have the EXPERT MultiConstruction Drill Bit.

View more
imageAlt

Product Options

Available product options: 37

Part number Diameter (D) mm Working length mm Total length mm Pack quantity
2 608 900 600 3.00 40 70 1 Pcs Find a local dealer
2 608 900 602 3.50 40 70 1 Pcs Find a local dealer
2 608 900 604 4.00 40 75 1 Pcs Find a local dealer
2 608 900 605 4.00 80 130 1 Pcs Find a local dealer
2 608 900 606 5.00 50 85 1 Pcs Find a local dealer
2 608 900 607 5.00 90 150 1 Pcs Find a local dealer
2 608 900 609 5.50 50 85 1 Pcs Find a local dealer
2 608 900 610 5.50 100 150 1 Pcs Find a local dealer
2 608 900 611 6.00 60 100 1 Pcs Find a local dealer
2 608 900 612 6.00 90 150 1 Pcs Find a local dealer
2 608 900 615 6.50 60 100 1 Pcs Find a local dealer
2 608 900 616 6.50 90 150 1 Pcs Find a local dealer
2 608 900 618 7.00 60 100 1 Pcs Find a local dealer
2 608 900 619 7.00 90 150 1 Pcs Find a local dealer
2 608 900 621 8.00 80 120 1 Pcs Find a local dealer
2 608 900 622 8.00 90 150 1 Pcs Find a local dealer
2 608 900 625 9.00 80 120 1 Pcs Find a local dealer
2 608 900 626 10.00 80 120 1 Pcs Find a local dealer
2 608 900 627 10.00 90 150 1 Pcs Find a local dealer
2 608 900 630 11.00 90 150 1 Pcs Find a local dealer
2 608 900 631 12.00 90 150 1 Pcs Find a local dealer
2 608 900 637 4.00 40 75 10 Pcs Find a local dealer
2 608 900 638 5.00 50 85 10 Pcs Find a local dealer
2 608 900 639 5.50 50 85 10 Pcs Find a local dealer
2 608 900 640 6.00 60 100 10 Pcs Find a local dealer
2 608 900 642 7.00 60 100 10 Pcs Find a local dealer
2 608 900 643 8.00 80 120 10 Pcs Find a local dealer
2 608 900 644 10.00 80 120 8 Pcs Find a local dealer
2 608 901 481 6.00 200 250 1 Pcs Find a local dealer
2 608 901 482 6.50 200 250 1 Pcs Find a local dealer
2 608 901 483 7.00 200 250 1 Pcs Find a local dealer
2 608 901 484 8.00 200 250 1 Pcs Find a local dealer
2 608 901 485 10.00 200 250 1 Pcs Find a local dealer
2 608 901 486 12.00 200 250 1 Pcs Find a local dealer
2 608 901 487 14.00 150 200 1 Pcs Find a local dealer
2 608 901 488 14.00 200 250 1 Pcs Find a local dealer
2 608 901 489 16.00 150 200 1 Pcs Find a local dealer

out of products
