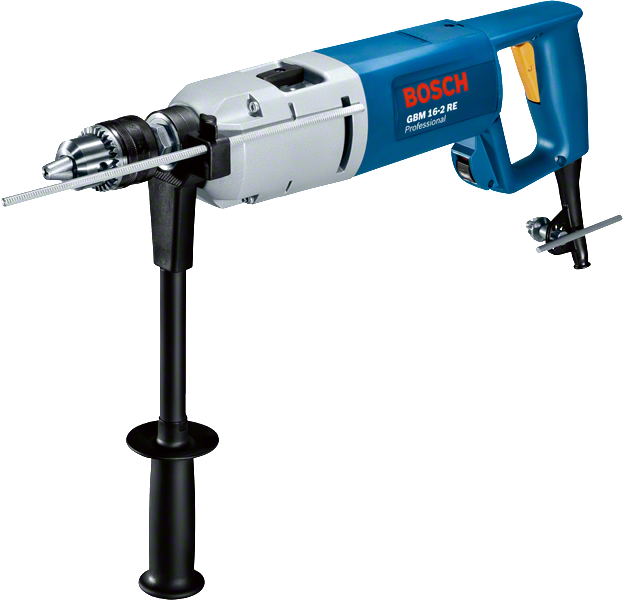

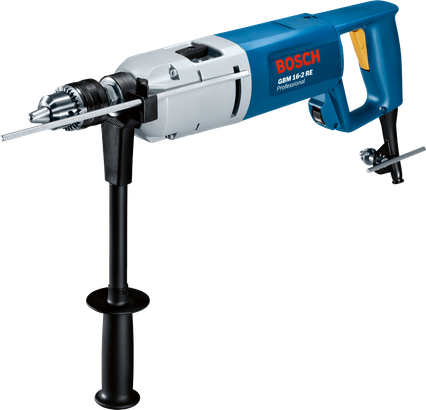

Drill GBM 16-2 RE Professional

The perfect tool for formwork drilling
  • Symbolimage
GBM 16-2 RE Professional
Technical data
Additional data
Rated input power* 1,050   W
Weight 3.7   kg
No-load speed 600 / 1,450   rpm
Power output 570   W
Rated speed 400 / 950   rpm
Rated torque 14.0 / 6.0   Nm
Drill spindle connecting thread Taper B 16
Max. torque 50.0 / 22.0   Nm
Drilling range
Drilling diameter in aluminium 20 / 13   mm
Drilling diameter in wood* 40 / 20   mm
Drilling diameter in steel* 16 / 8   mm
Total vibration values (Drilling in metal)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 85 dB(A). Uncertainty K= 3 dB.


The perfect tool for formwork drilling

  • With spade handle for a firm grip
  • Control Electronic for exact pilot drilling
  • Forward/reverse rotation especially for loosening jammed formwork drill bits


Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Easy and precise control of the RPM thanks to variable speed
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
GBM 16-2 RE Professional
GBM 16-2 RE Professional
Order number: 0 601 120 503
