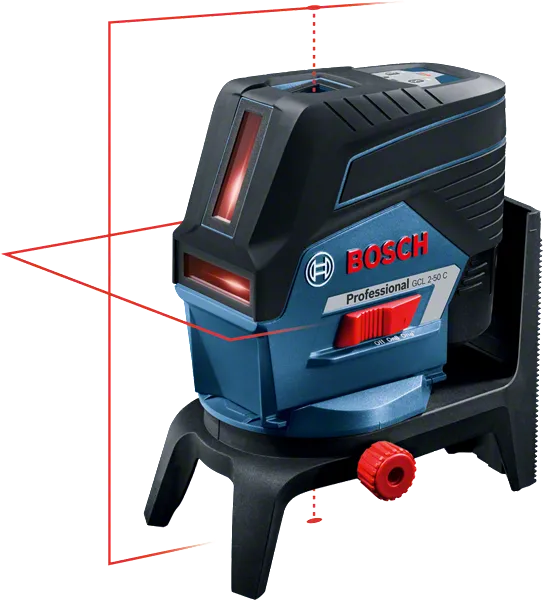

Combi Laser GCL 2-50 C Professional

Smart functions for maximum productivity

Technical data
Additional data
Working range with receiver, value 50   m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Battery voltage 12   V
Laser diode 635 – 650 nm
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range 20   m
Working range with receiver 50 m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread 1/4"
Weight, approx. 0.6   kg
Colour of laser line red
Color of plumb points red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)

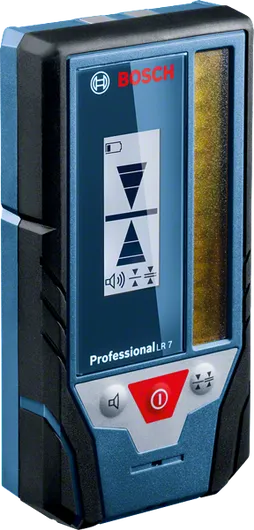

Compatible laser receivers LR 6 + 7
Working range, value 20   m


Smart functions for maximum productivity

  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility
  • Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3

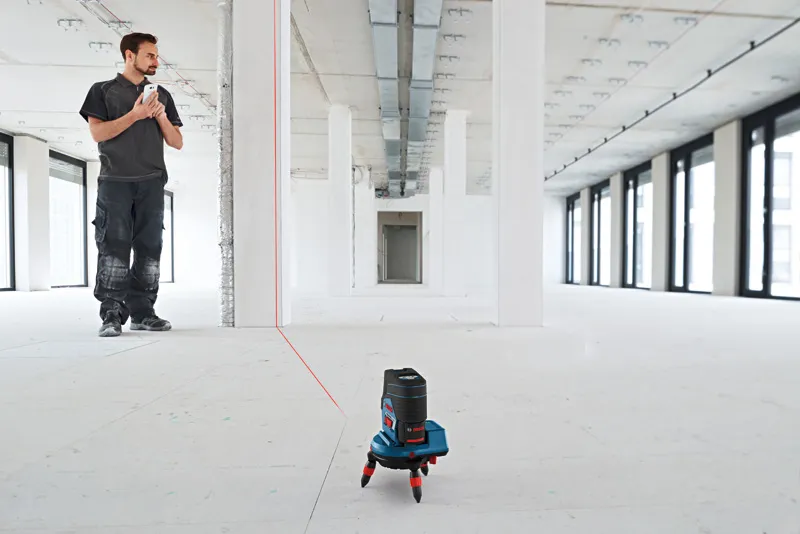

Simply.Connected. - Simply. Efficient. thanks to smartphone connection and Bosch App
Dual power source
Working with receiver for higher working range

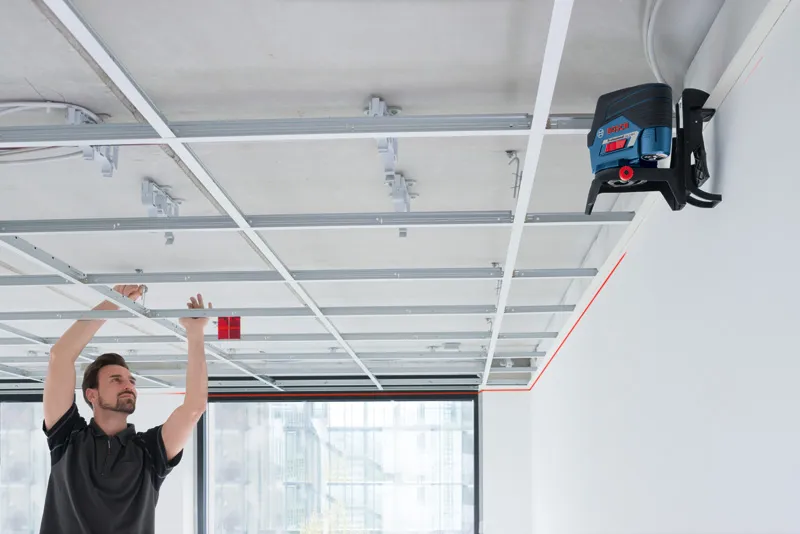

Easy line positioning around the plumb dot
Slide mechanism
Laser class 2 Laser class for measuring tools.
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Easy line positioning around the plumb dot
Slide mechanism

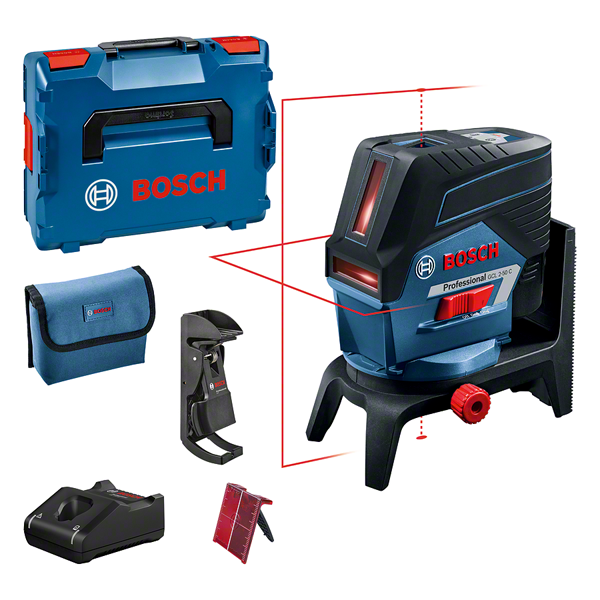

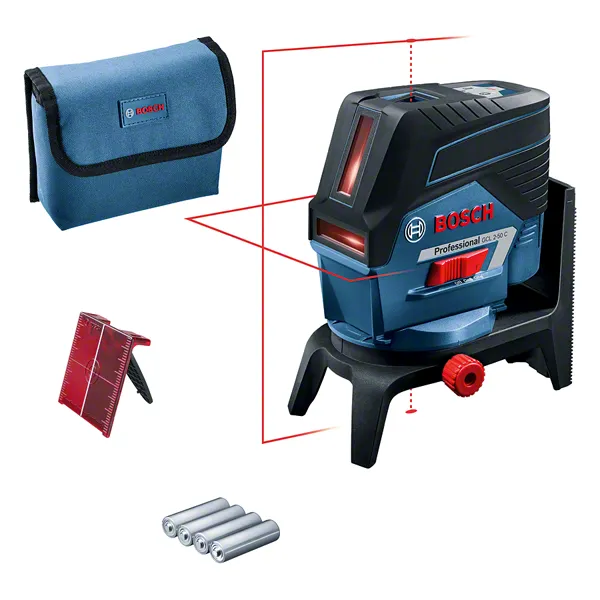

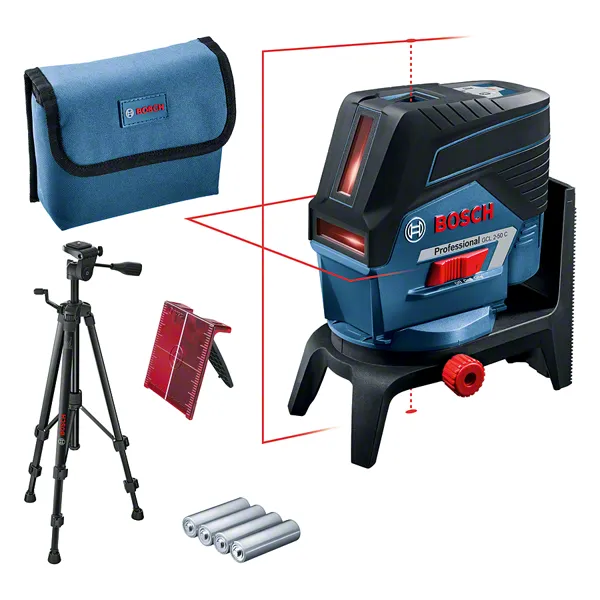

What’s Included in this Package
in L-BOXX 136 with Accessory, clamp
in L-BOXX 136 with Accessory, clamp
Order number: 0 601 066 G03
  • Ceiling clamp
  • Laser target plate
  • L-BOXX 136 1 600 A01 2G0
  • Protective Bag
  • Rotating mount RM 2 Professional 0 601 092 700
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R3
Product variations (3)

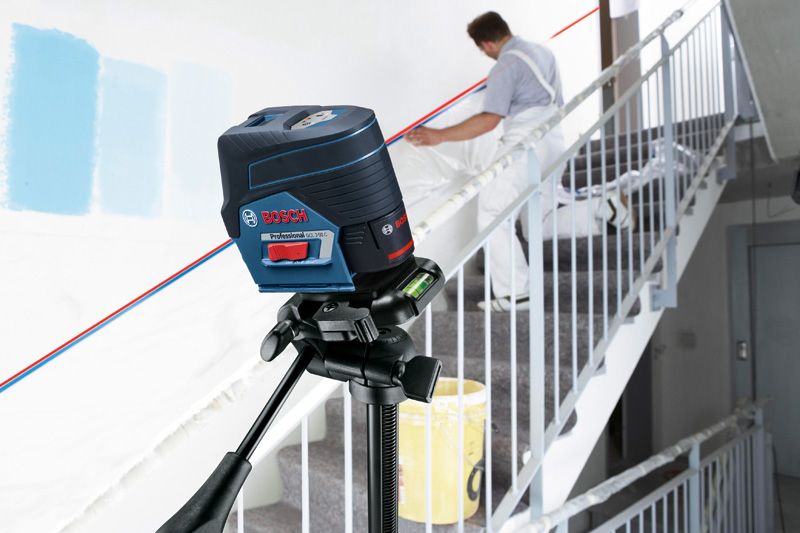

The GCL 2-50 C in action!
