Rotation lasers
![]()
![]()
![]()
![]()

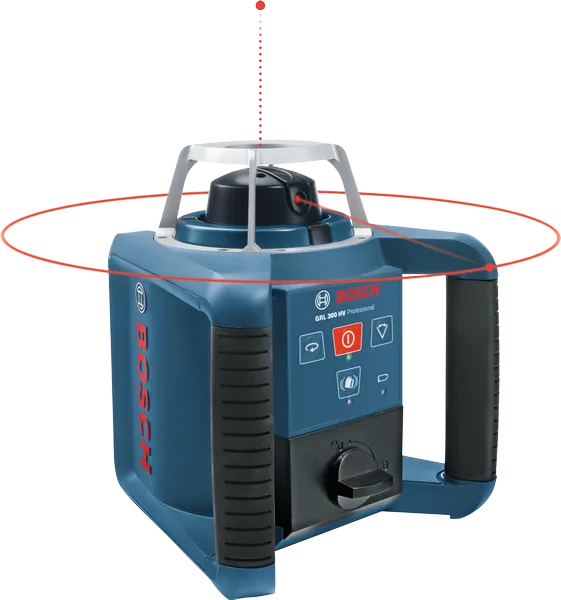

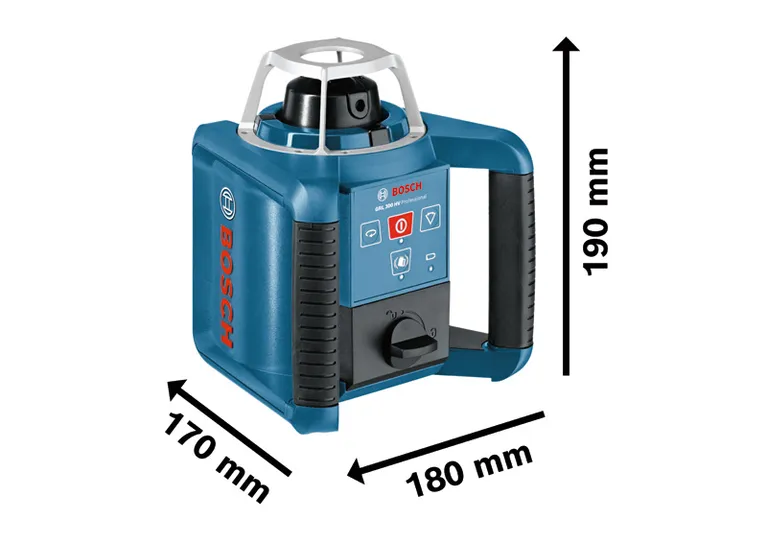

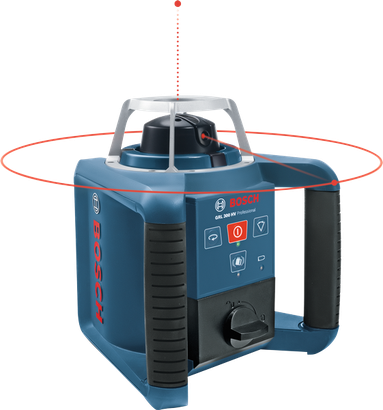

GRL 300 HV Professional
Rotation Laser

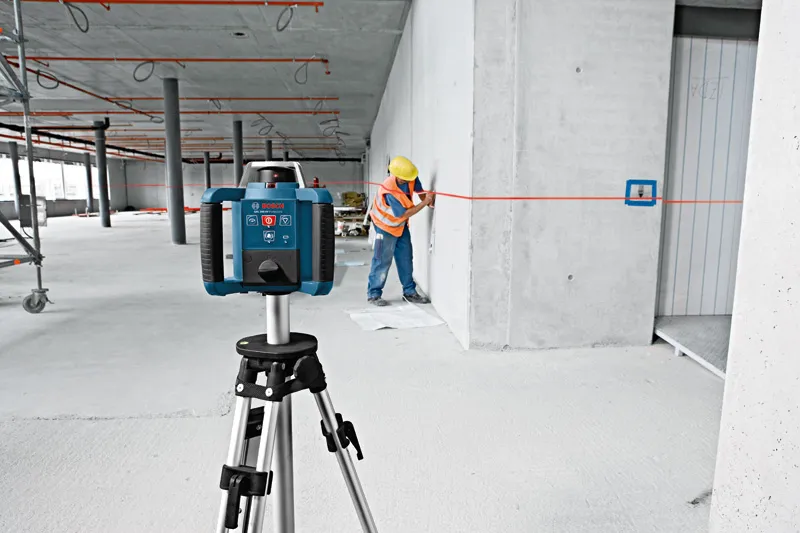

Easy handling with horizontal and vertical self-levelling
- Easy to operate thanks to one button per function, and self-explanatory display
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations
Functions & key features
Your Selection
- in carrying case with 1 x 9 V block battery, accessory set
2,045 TND
Recommended retail price including VAT
Find a local dealer
in carrying case with 1 x 9 V block battery, accessory set
0 601 061 501
GRL 300 HV Professional
Your Selection
in carrying case with 1 x 9 V block battery, accessory set
Order number: 0 601 061 501
2,045 TND
Recommended retail price including VAT

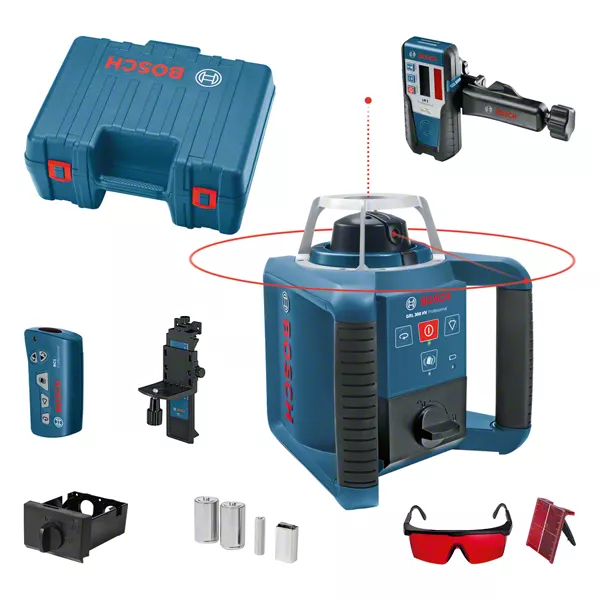

This product includes
- Battery compartment (spare part number 1 608 M00 05D)
- Carrying case
- Holder also available separately as an accessory (spare part number 1 608 M00 70F)

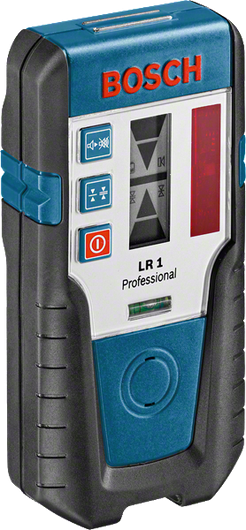

- Laser Receiver LR 1 Professional 0 601 015 400
- Laser target (red) (spare part number 1 608 M00 05C)

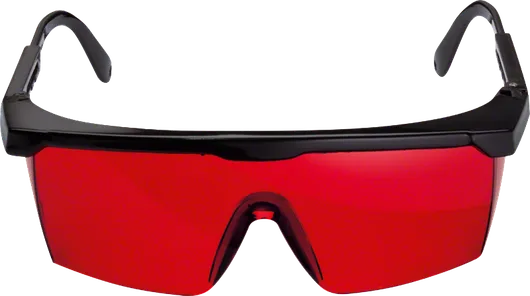

- Laser viewing glasses (red) (spare part number 1 608 M00 05B)
- Remote control RC1 Professional 0 601 069 900

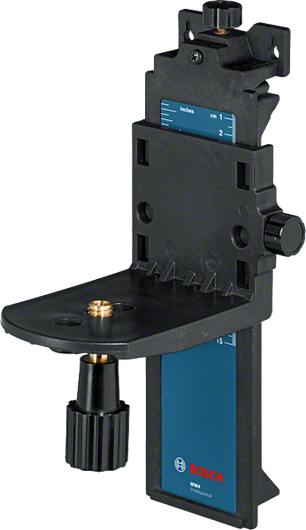

- Universal mount WM 4 Professional 0 601 092 400
- 1 x 9 V block battery (6LR61)
- 2 x 1.5 V LR20 battery (D)
- 1 x 1.5 V LR6 battery (AA)
Show less
Show more
Technical data
Additional data |
|
|---|---|
| Working range with receiver, value | 300 m |
| Dust and splash protection | IP 54 |
| Working range with receiver | up to 300 m (Diameter) |
| Accuracy | ± 3.0 mm at 30 m* (*plus use-dependent deviation) |
| Laser diode | 635 nm, < 5 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range without receiver | up to 60 m (Diameter) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.5 V LR20 (D) |
| Tripod thread | 5/8" |
| Weight, approx. | 1.8 kg |
| Colour of laser line | red |
| Slope function | no |
