Wood Drill Bits

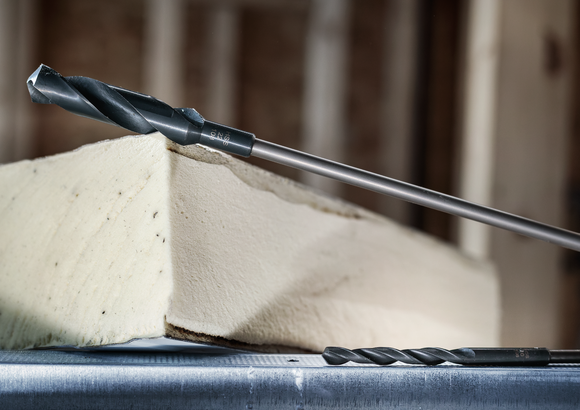

Installation Drill Bit

For rotary hammer drills

Installation Drill Bit is very robust for formwork

  • The drill bit and shank end are screw-connected, ensuring a low risk of breakage and keeping operations running smoothly
  • Tapered flute, offset drill bit and shank ends prevent jamming in moist wood and cut through embedded nails
  • Fits all SDS plus rotary hammer drills.

Materials

Softwood
Hardwood
Drywall board

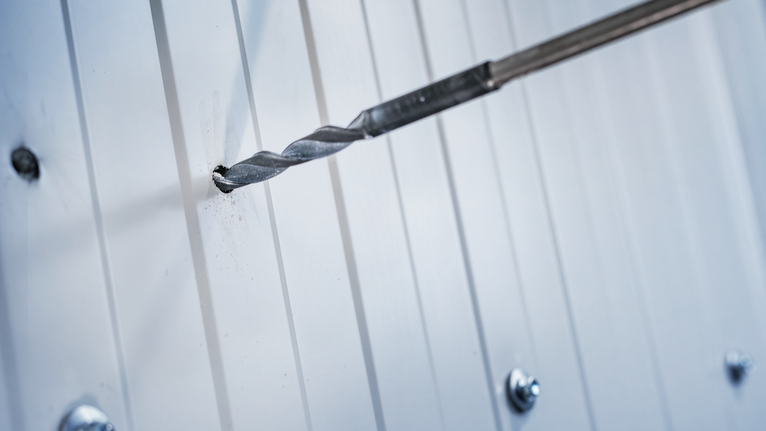

Aluminium
Select options

Diameter (D) mm 7 options

Total length (L2) mm 400

Choose a pack size 1 Pcs


Installation Drill Bit
from
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Fits all SDS plus rotary hammer drills.

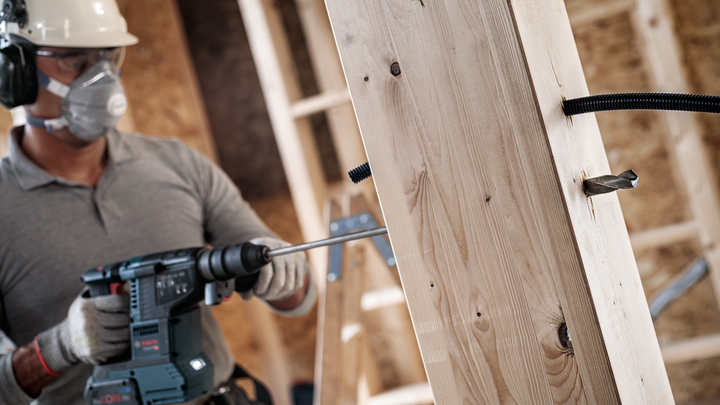

Robust for Formwork

Installation Drill Bit is very robust for formwork

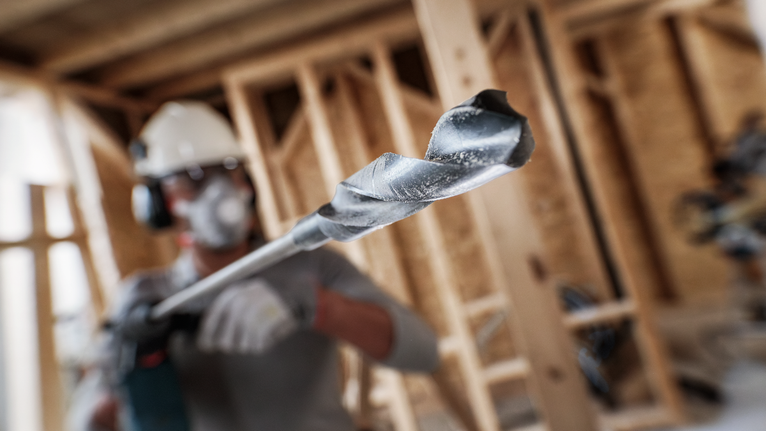

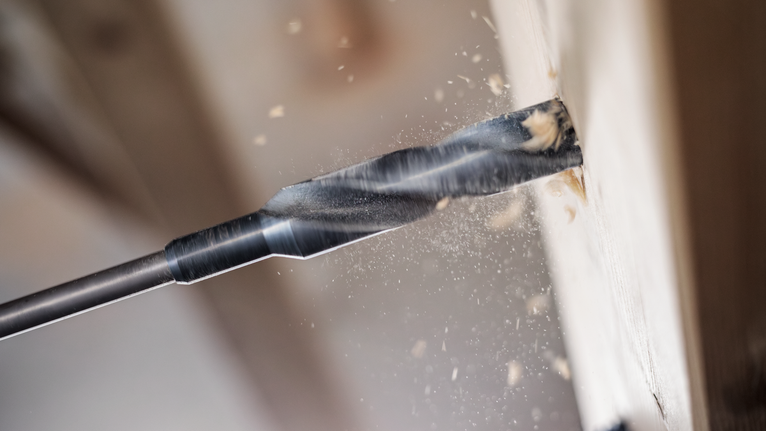

  • Tapered flute, offset drill bit and shank ends prevent jamming in moist wood and cut through embedded nails

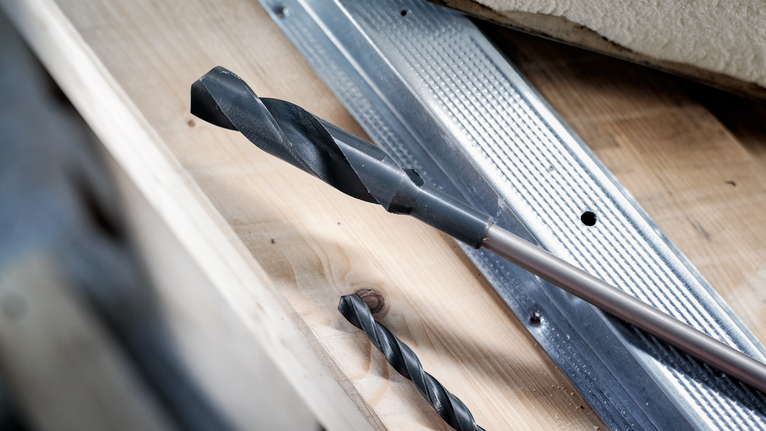

  • Extra-long shank for versatile drilling in multilayer building materials or sandwich materials
  • Made of HSS manufactured to DIN 7490, drill bit tip with chisel edge (118 degrees)
View more

Product Options

Available product options: 7

Part number Diameter (D) mm Total length (L2) mm Pack quantity
2 608 597 400 10.00 400 1 Pcs Find a local dealer
2 608 597 402 12.00 400 1 Pcs Find a local dealer
2 608 597 404 14.00 400 1 Pcs Find a local dealer
2 608 597 406 16.00 400 1 Pcs Find a local dealer
2 608 597 408 18.00 400 1 Pcs Find a local dealer
2 608 597 410 20.00 400 1 Pcs Find a local dealer
2 608 597 412 22.00 400 1 Pcs Find a local dealer

out of products
