Angle measurers and inclinometers

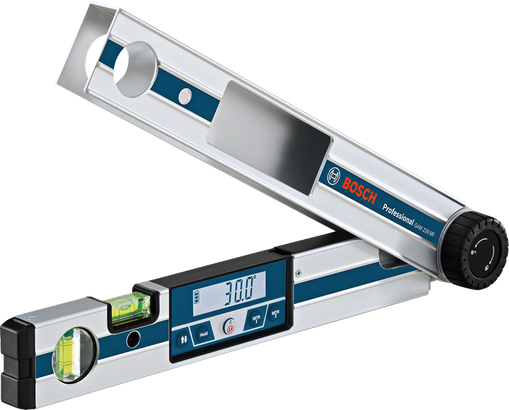

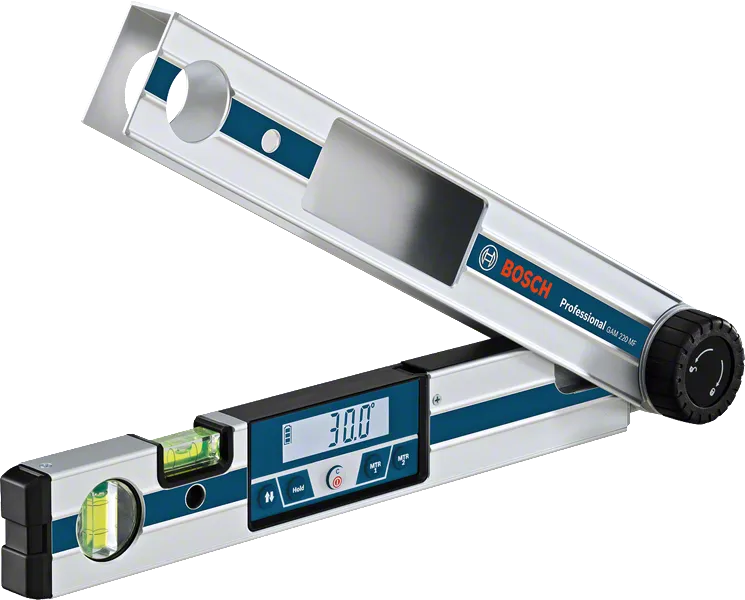

GAM 220 MF Professional

Angle Measurer

Fast calculation of mitre angles

  • Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
  • Automatic calculation of single and double mitre angles without any other tools

Functions & key features

Display Illumination
Calculation of Mitre Angles
IP54 dust and splash water protection
Flip Display

Your Selection

  • with 4 x battery (AA), accessory set
Show variant Find a local dealer

with 4 x battery (AA), accessory set 0 601 076 600

GAM 220 MF Professional

Your Selection

GAM 220 MF
with 4 x battery (AA), accessory set

Order number: 0 601 076 600

Find a local dealer

Included in this variant

  • Protective Bag
  • Leg extension
  • 4 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Measurement range 0 – 220°
Arm length 40 cm
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min
Weight, approx. 1.2 kg
GAM 220 MF
