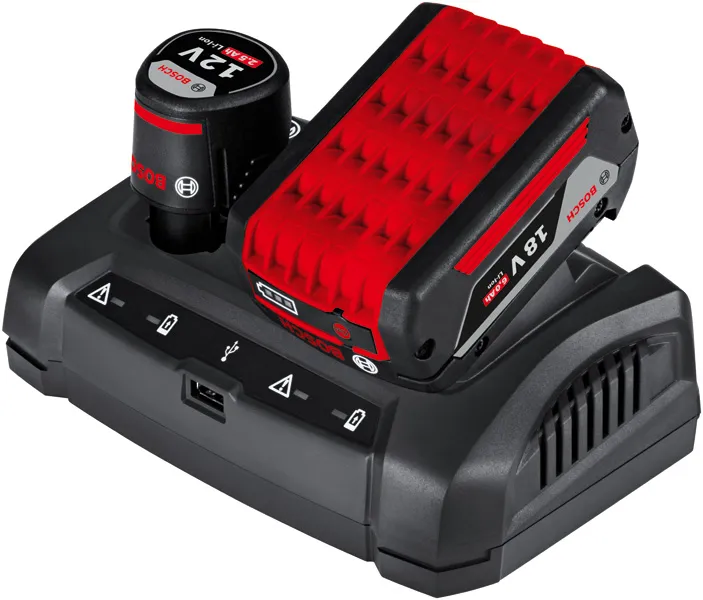

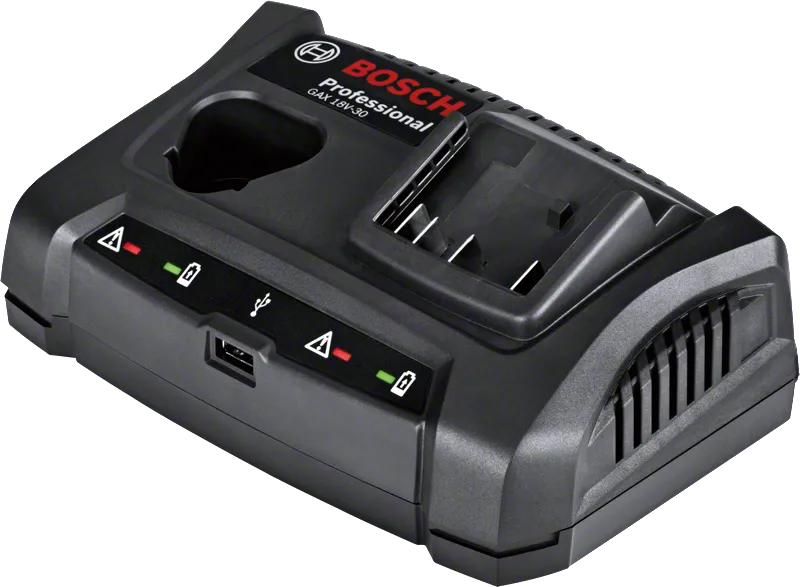

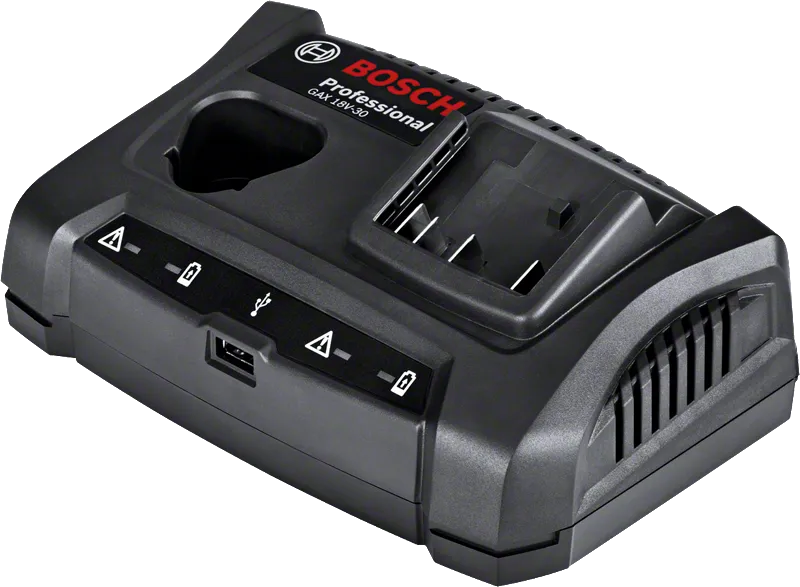

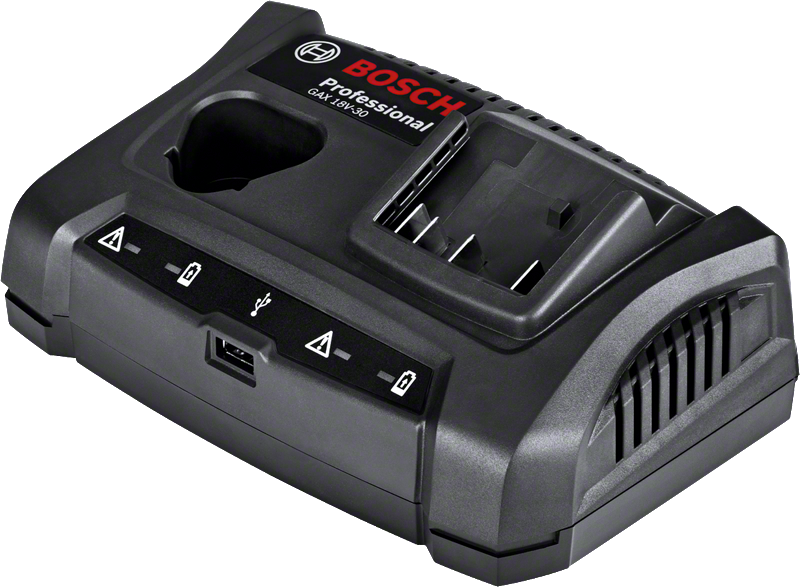

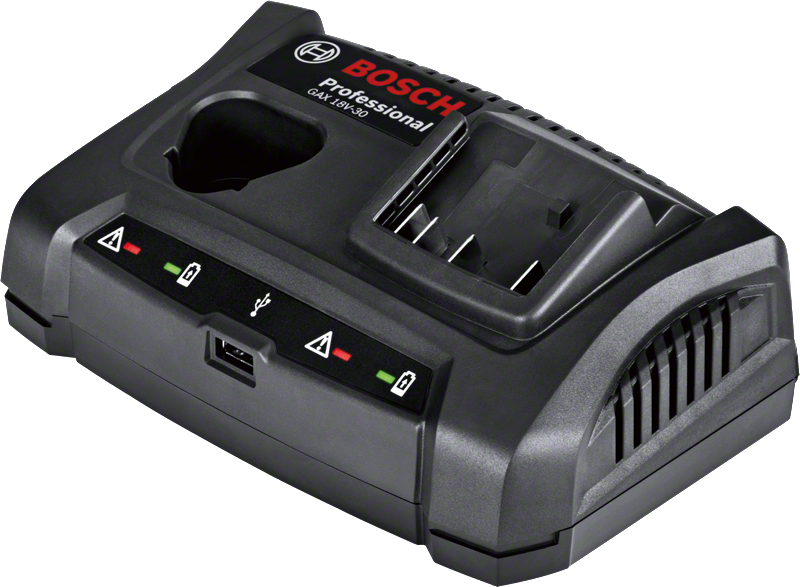

Charger GAX 18V-30 Professional

Truly a multi-talent: Dual bay, multi-voltage and USB all-in-one fast charger

Technical data
Additional data
Battery charging voltage 10.8 – 18   V
Charge current 3   A
Weight 800   g
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. 35/45   min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx. 40/65   min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx. 53/68   min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. 65/85   min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. 82/107   min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. 100/130   min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx. 109/181   min
Interfaces USB port: 5 V, max. 2.1 A

Advantages

Truly a multi-talent: Dual bay, multi-voltage and USB all-in-one fast charger

  • Dual bay: Two charging bays: One for 10.8/12 volt and another one 14.4/18 volt
  • Additional USB charger integrated: Fast-charges your smartphone or tablet with 2.1 A charging current
  • Fast charger: Charges one battery after the other (sequential) with 3 A charging current

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
USB charger
What’s Included in this Package
in cardboard box with Wall mount
in cardboard box with Wall mount
Order number: 1 600 A01 1AA
  • Cardboard box
  • Charger GAX 18V-30 1 600 A01 1AA
  • Wall mount
