Rotary hammers

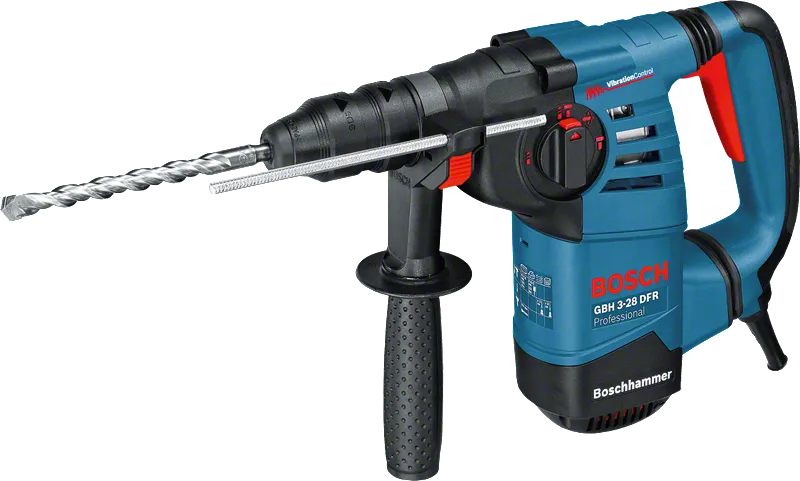

GBH 3-28 DFR Professional

Rotary Hammer with SDS plus

Top performance with 20% less vibration

  • High drilling rate and 20% higher chiselling power than other rotary hammers in its class
  • 20% less vibration than other hammers in its class for more comfortable working due to Bosch Vibration Control
  • Quick change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal

Functions & key features

Metal chuck 1.0 - 13.0 mm
Comfortable working Vibration Control reduces vibration for less tiring work
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws

Your Selection

  • in carrying case with depth stop
Show variant Find a local dealer

in carrying case with depth stop 0 611 24A 000

GBH 3-28 DFR Professional

Your Selection

GBH 3-28 DFR
in carrying case with depth stop

Order number: 0 611 24A 000

Find a local dealer

Included in this variant

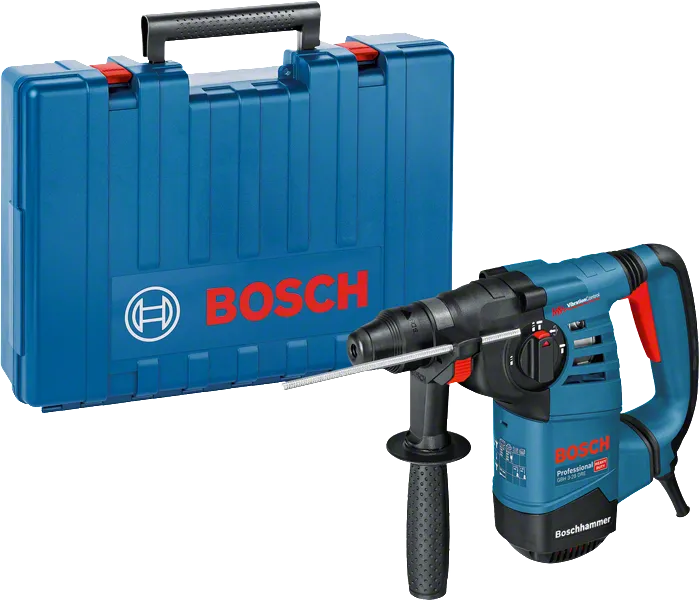

  • Carrying case
    Order number: 2 605 438 651
  • Quick change chuck 13 mm
    Order number: 2 608 572 212
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • SDS plus quick-change chuck
    Order number: 2 608 572 213
  • Depth stop 210 mm
    Order number: 1 613 001 010
  • Auxiliary handle
    Order number: 2 602 025 191

Technical data

Performance data

Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Show more
GBH 3-28 DFR

GBH 3-28 DFR Professional: Further information

Product Highlights

The GBH 3-28 DFR Professional is the most versatile tool in Bosch’s SDS plus corded rotary hammer category. Its compact housing enables multiple applications in narrow and tight workspaces. Designed for convenience, its L-shaped design provides a balanced weight distribution, while its Vibration Control allows effortless continuous work. It also features a high power-to-weight ratio, with an 800 W motor and a tool weight of only 3.6 kg.
