Line lasers
![GLL 3-15 X]( "GLL 3-15 X")
![GLL 3-15 X]( "GLL 3-15 X")
![GLL 3-15 X]( "GLL 3-15 X")

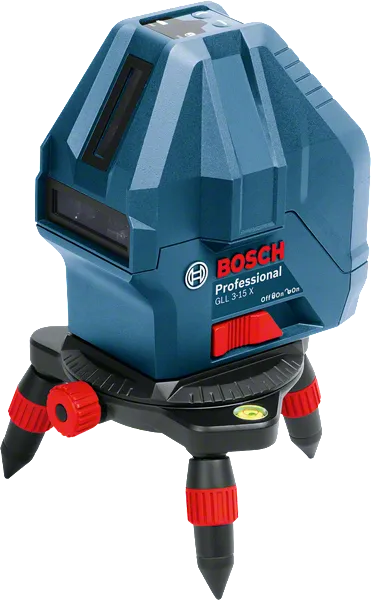

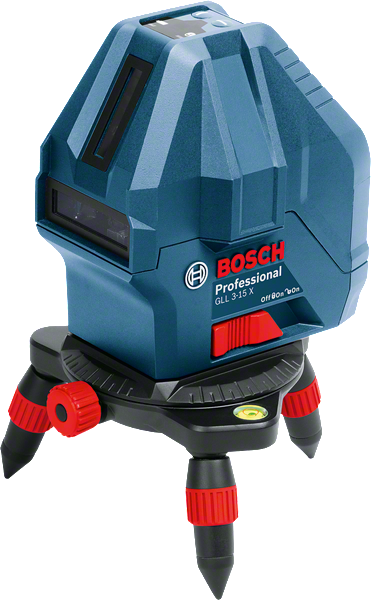

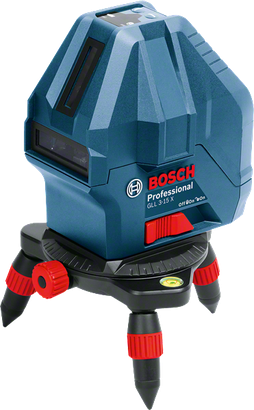

GLL 3-15 X Professional
Line Laser
For easy decorative interior fitting applications
- Maximum precision thanks to the Bosch Pendulum Precision System
- Projection of a vertical and a horizontal line
- Detachable, 360° rotating platform with bubble vial and fine adjustment
with 4 x battery (AA), protective acc.
0 601 063 M00
GLL 3-15 X Professional
Your Selection
with 4 x battery (AA), protective acc.
Order number: 0 601 063 M00
Find a local dealerIncluded in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
-
Tripod adapter
Technical data
Additional data
Working range
15 m
Accuracy
Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Tripod thread
5/8"
Colour of laser line
red
Laser diode
630 – 650 nm, < 1mW
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range of laser points, max.
5 m (bottom)
Self-levelling range
± 3°
Levelling time
4 s
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
24 h
Weight, approx.
0.72 kg
Color of plumb points
red
Projection
3 lines + 1 plumb point
Plumb point accuracy
± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value
15 m
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
