Optical levels

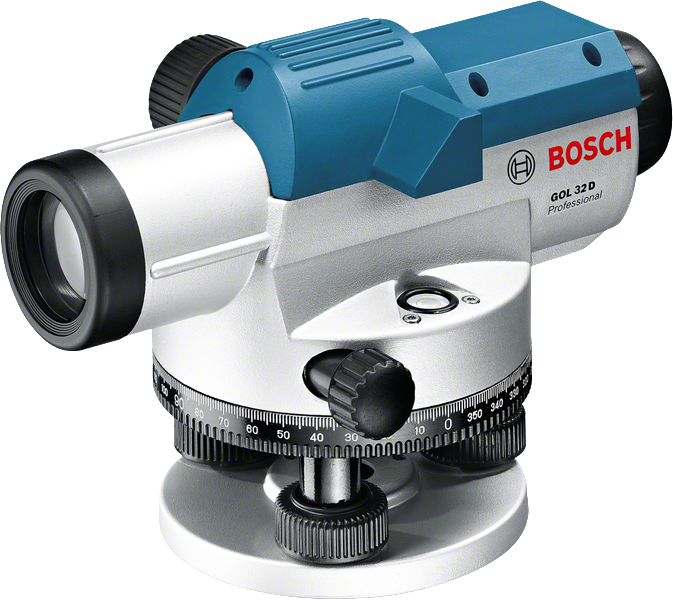

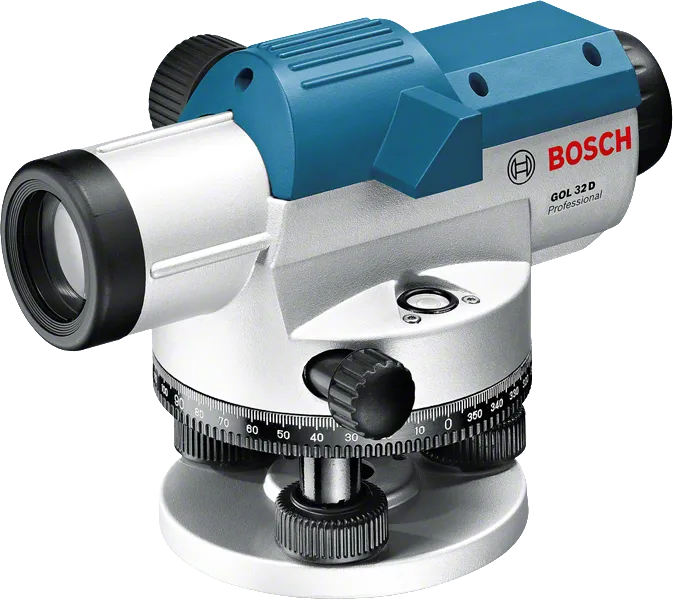

GOL 32 D Professional

Optical Level

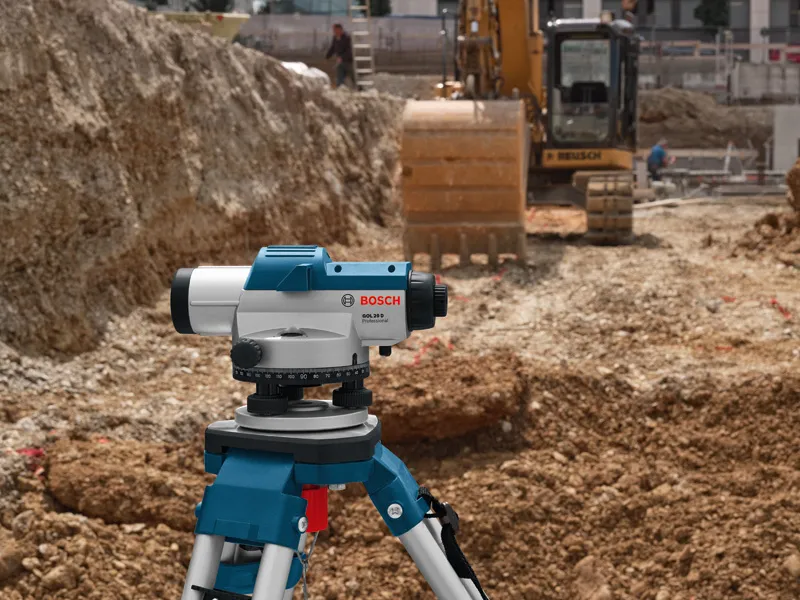

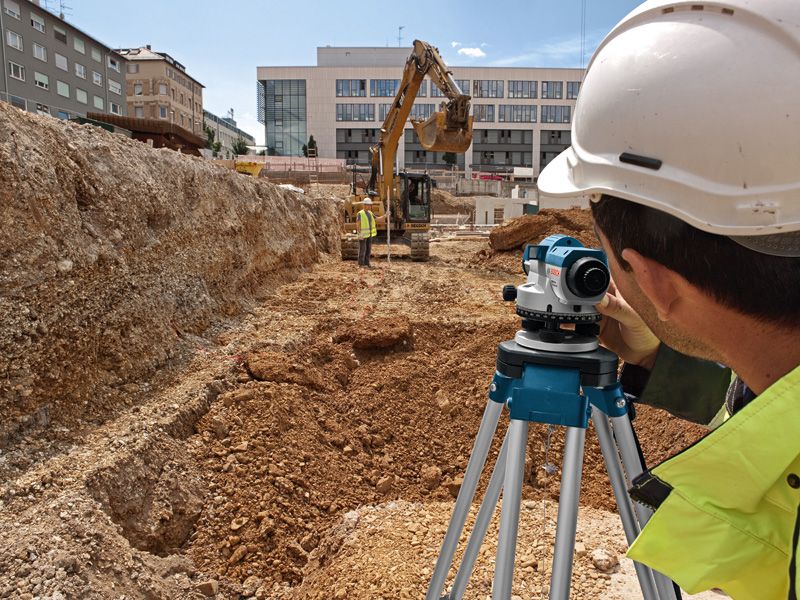

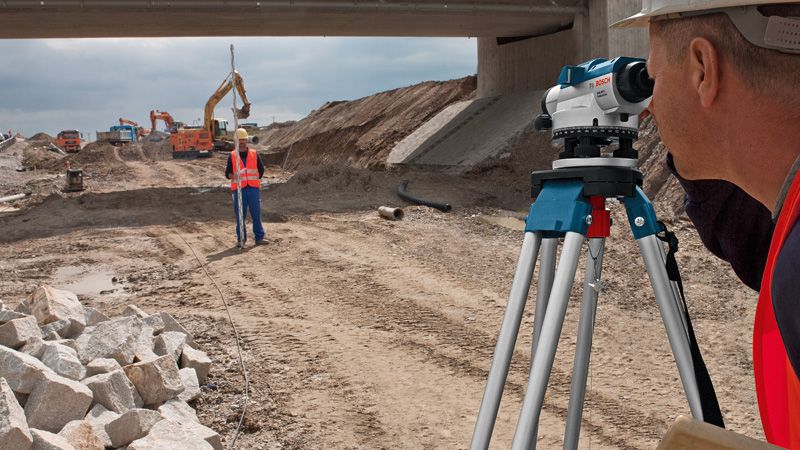

Robust and reliable – ideal for outdoor use

  • Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
  • Fast aperture for a sharp image of the target
  • Compensator lock for safe transport

Functions & key features

Levelling accuracy ± 1 mm @ 30 m* (*plus use-dependent deviation)
Magnification 32x
Working range up to 120 m
IP54 dust and splash water protection

Your Selection

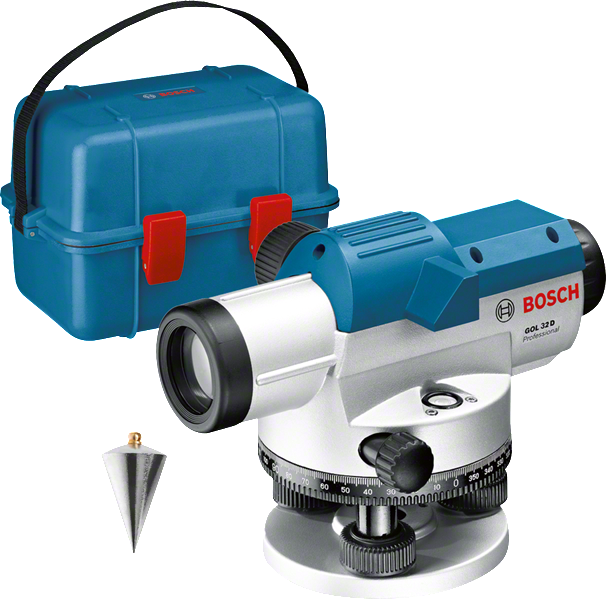

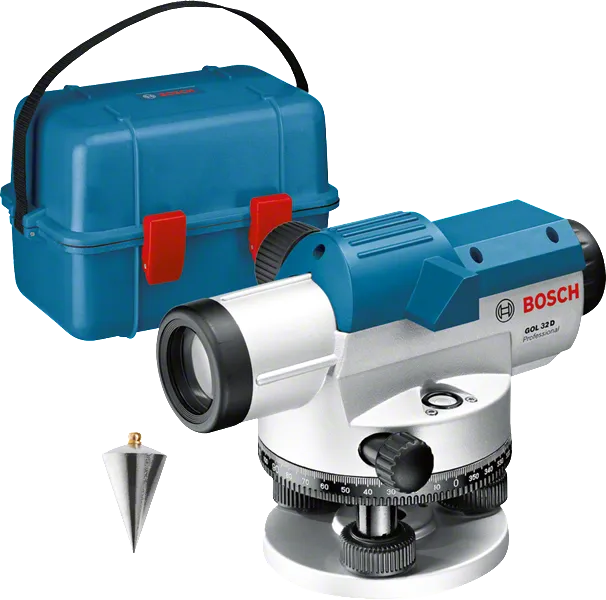

  • in carrying case with accessory set
Change variant Find a local dealer

in carrying case with accessory set 0 601 068 500

Select a variant

Your Selection

GOL 32 D
in carrying case with accessory set

Order number: 0 601 068 500

Find a local dealer

Included in all variants

  • Plumb bob
  • Carrying case
    Order number: 1 600 A00 0LF
  • Lens cover
  • Adjusting pin

Your Selection

GOL 32 D
in carrying case with accessory set

Order number: 0 601 068 502

Find a local dealer

Included in all variants

  • Plumb bob
  • Carrying case
    Order number: 1 600 A00 0LF
  • Lens cover
  • Adjusting pin

Additional in this variant

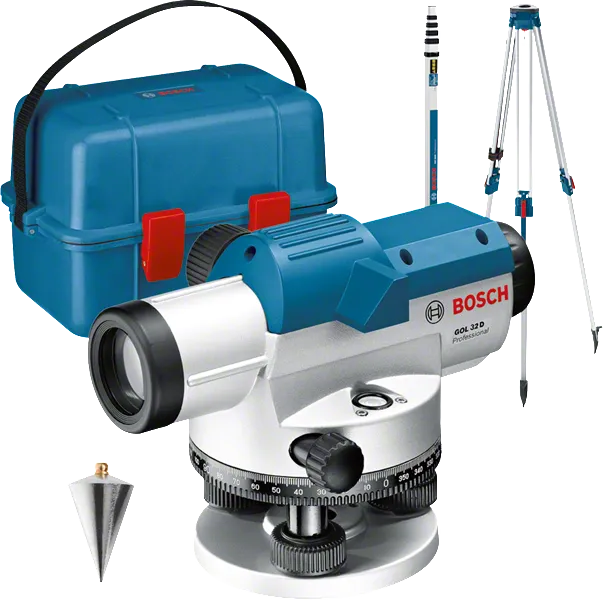

  • Building tripod BT 160 Professional
    Order number: 0 601 091 200
  • Measuring rod GR 500 Professional
    Order number: 0 601 094 300

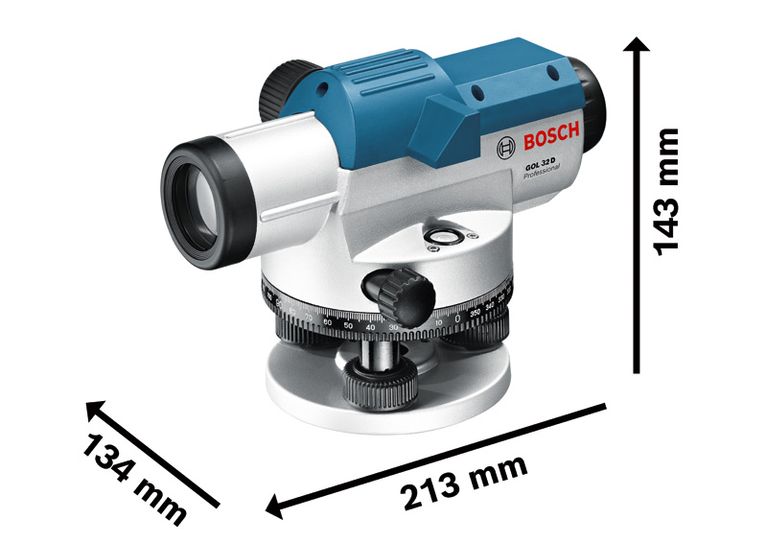

Technical data

Additional data

Tripod thread 5/8"
Unit of measure 360 degrees
Magnification 32 x
Accuracy ± 1 mm at 30 m
Dust and splash protection IP 54
Working range 120 m
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Weight, approx. 1.5 kg
Working range, value 120 m

GOL 32 D

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
