Line lasers

GTL 3 Professional

Tile Laser

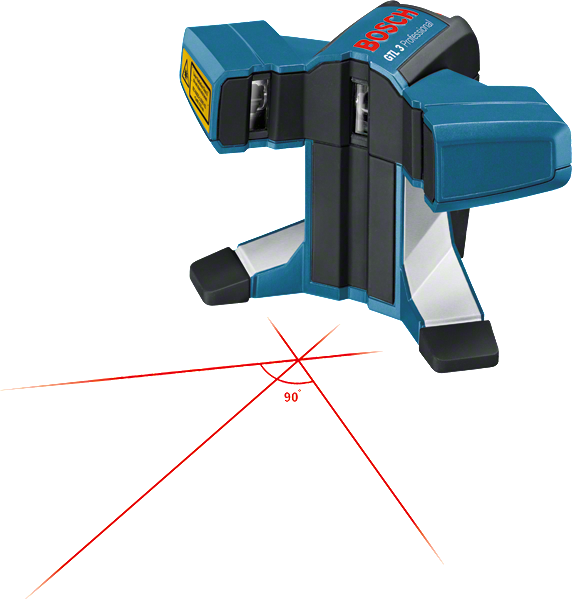

Fast tile laying due to additional line at 45°

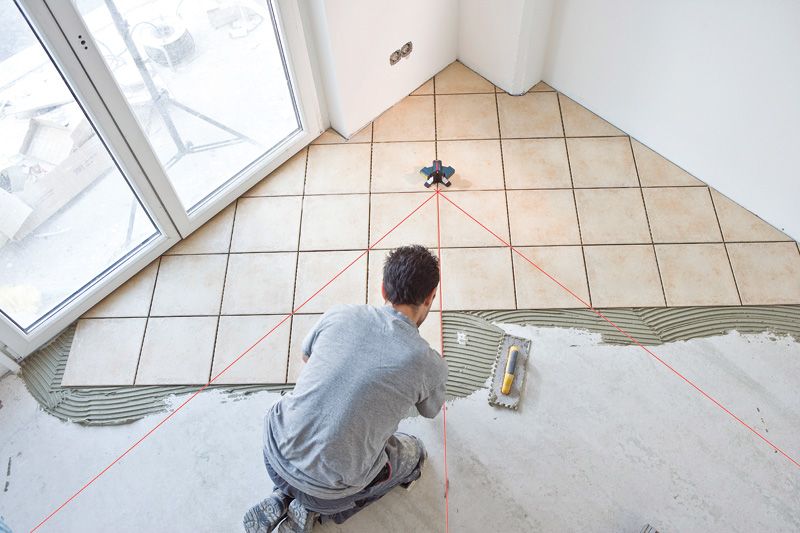

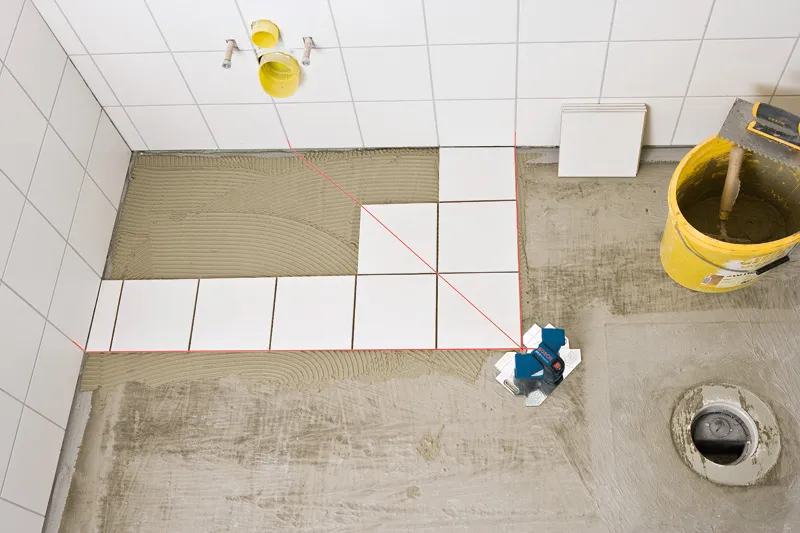

  • In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
  • High accuracy of 0.2 mm/m
  • Compact and lightweight design for optimum ease of use
See technical details

Functions & key features

Line configuration
Working range up to 20 m
Laser class 2
Power supply 4 x AA battery
IP54 dust and splash water protection

Your Selection

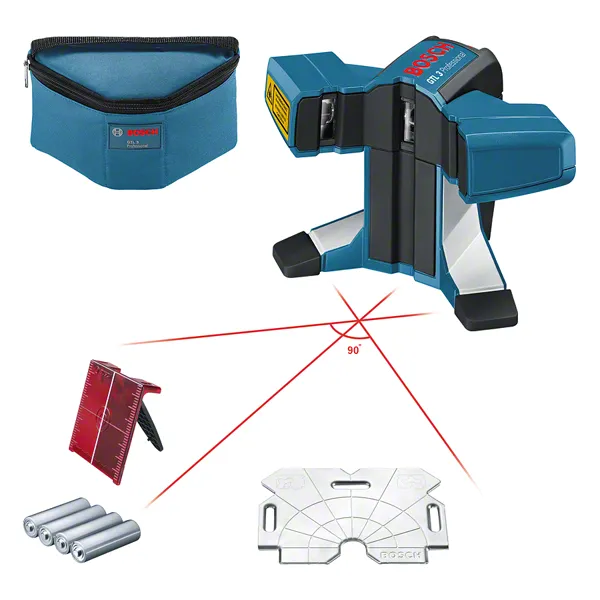

  • with 4 x battery (AA), accessory set
Show variant Find a local dealer

with 4 x battery (AA), accessory set 0 601 015 200

GTL 3 Professional

Your Selection

with 4 x battery (AA), accessory set

Order number: 0 601 015 200

Find a local dealer

Technical data

Additional data

Projection 3 lines
Working range 20 m
Laser diode 630 – 650 nm
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range with target plate 20 m
Angular accuracy (between 0 – 90° angle) ±0.2 mm/m* (*plus use-dependent deviation)
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h in 2-line mode, 12 h in 3-line mode
Weight, approx. 0.44 kg
Working range, value 20 m
