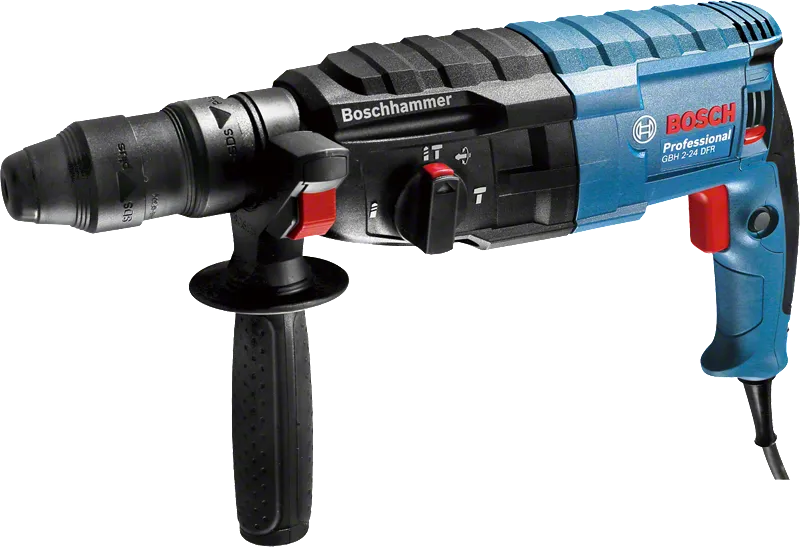

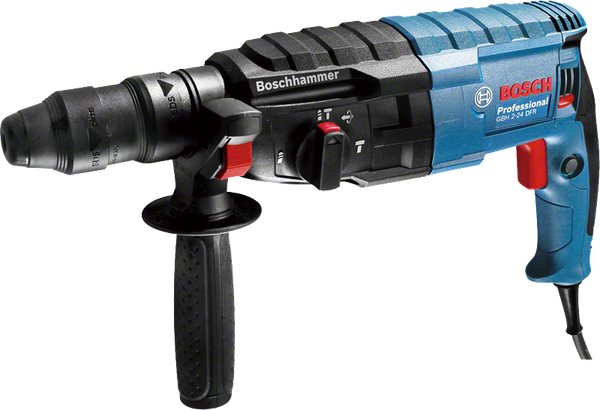

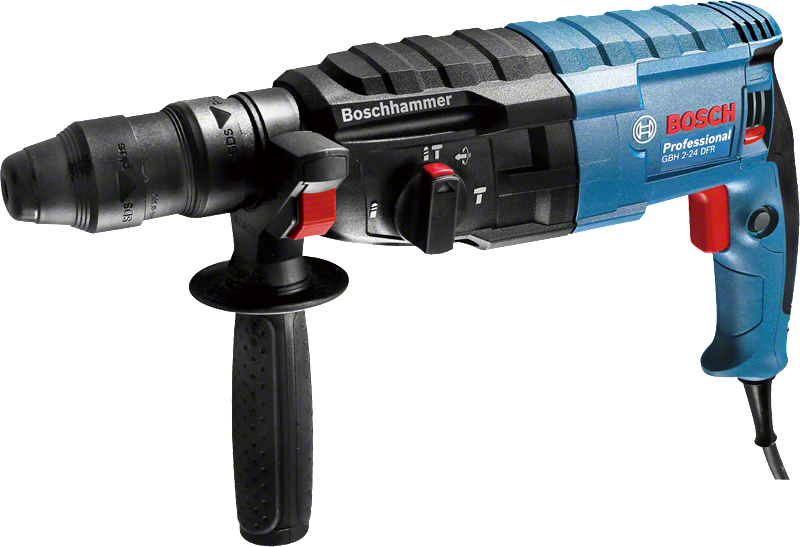

Rotary Hammer with SDS plus GBH 2-24 DFR Professional

Name: GBH 2-24 DFR
Brand: Bosch power tools
SKU: 06112730K0

The new standard in concrete drilling!

Technical data

Additional data
Rated input power	790 W
Impact energy	2.7 J
Impact rate at rated speed	0 – 4,200 bpm
Rated speed	0 – 930 rpm
Weight	2.9 kg
Tool dimensions (length)	397 mm
Tool dimensions (height)	210 mm

Drilling range
Drilling dia. concrete, hammer drill bits	24 mm
Max. drilling diameter masonry, core cutters	68 mm
Max. drilling diameter in metal	13 mm
Max. drilling diameter in wood	30 mm

Advantages

The new standard in concrete drilling!

Best drilling speed in class due to optimized gear housing set
Enhanced durability and hard work due to powerful 790 W motor
Spare parts interchangeability and easy maintenance because of smart design

Functions

Construction The professional power tools for construction from Bosch.

What’s Included in this Package

in carrying case

Order number: 0 611 273 0K0

Carrying case

The GBH 2-24 DFR in action!

User Manual

GBH 2-24 DFR (PDF 8.7 MB)

Download

Select a spare part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
